NetworkAV™ 1080p HDMI over IP Receiver — 120M Add-On

Expand Your NetworkAV IP System — Add Displays Anywhere over Standard CATx up to 394 ft

EXT-AVIP120MRXUPC 813982021181

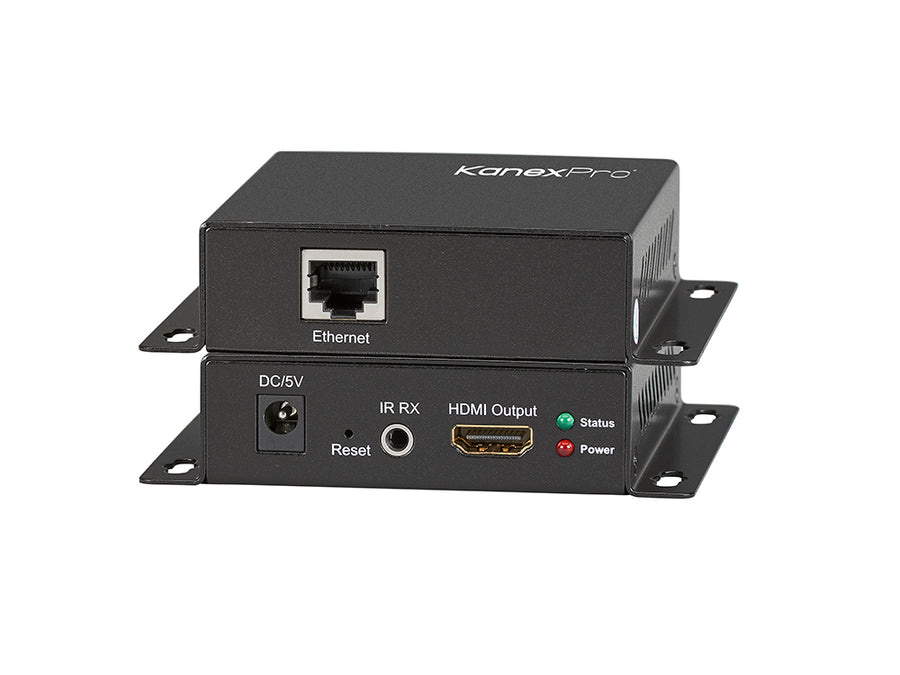

In stockNetworkAV™ 1080p HDMI over IP Receiver — 120M Add-On – KanexPro EXT-AVIP120MRX
Trade pricing and stock
Specifications, drawings and documents stay open to everyone. Net pricing, stock by warehouse and ordering need an approved trade account.
Apply Sign in

Approval is usually same working day.

Overview

The EXT-AVIP120MRX adds display endpoints to any EXT-AVIP120M-based NetworkAV system — decoding full HD 1080p/60 HDMI signals from a remote encoder over IP and delivering them to a display via a single UTP CAT5e/6 cable up to 120m (394 ft). Sold separately from the kit, this standalone decoder allows integrators to scale multi-display installations without purchasing additional transmitters.

The EXT-AVIP120MRX shares the same compact metal enclosure, mounting ears, IP configuration interface, and IR pass-through capabilities as the EXT-AVIP120M kit receiver — making it a direct add-on for existing deployments. Compatible with point-to-many and many-to-many topologies, it supports cascaded 10G switch configurations for large-scale display networks in signage, education, and commercial AV applications.

Key features
  • Standalone HDMI over IP decoder — expands any EXT-AVIP120M system to additional display endpoints
  • Decodes 1080p HDMI signals from a remote encoder over IP — up to 120m (394 ft) over single UTP CAT5e/6
  • Supports point-to-many and many-to-many network configurations
  • Cascadable via 10G Ethernet switches for large-scale display networks
  • Wideband IR pass-through 38–56kHz for remote source control
  • Embedded HTTP server for IP address configuration via web browser
  • Metal enclosure with integrated mounting ears and 5V DC power supply included
SpecificationValue
Video
CompressionMJPEG
Supported FormatsDTV/HDTV: 480i/576i/480p/576p/720p/1080i/1080p
Input Video Signal0.5–1.0V P-P
Input DDC Signal5V P-P (TTL)
Video OutputHDMI
HDCPCompliant
Transmission
Max Distance120m (394 ft) over CAT5E/6, 24AWG solid
ProtocolTCP/IP
Control
IR Frequency38–56kHz
Network
Default IP (RX)192.168.168.56 (MAC: 00:0b:78:00:60:02)
Power
SupplyDC 5V/1A (included)
Consumption3W max
Environmental
Operating Temperature-5 to +35°C (+23 to +95°F)
Operating Humidity5–90% RH, non-condensing
Physical
Dimensions (L×W×H)4.07″ × 3.68″ × 0.97″ (103.5 × 93.5 × 24.6mm)
Net Weight0.49 lbs (220g)
Certifications
RegulatoryFCC Class B (Part 15)
Package Contents
1×Receiver
1×Power adapter DC 5V/1A
1×IR-RX cable
1×Operating instructions
NetworkAV™ 1080p HDMI over IP Receiver — 120M Add-On panel drawing
NetworkAV™ 1080p HDMI over IP Receiver — 120M Add-On system diagram
NetworkAV™ 1080p HDMI over IP Receiver — 120M Add-On applications
ManualInstallation and operation
Spec sheetFull specification
Sales sheetFor bid packages
What is the maximum transmission distance of the EXT-AVIP120MRX?
120m (394 ft) over a single UTP CAT5e/6 cable from a remote encoder.
What video compression and resolutions does the EXT-AVIP120MRX decode?
MJPEG-compressed DTV/HDTV signals at 480i, 576i, 480p, 576p, 720p, 1080i, and 1080p, output as HDCP-compliant HDMI.
How do I add the EXT-AVIP120MRX to an existing EXT-AVIP120M system?
Connect the EXT-AVIP120MRX to the same network as the EXT-AVIP120M encoder and assign it a unique IP address via its embedded HTTP server; all RX units on the network display the TX signal simultaneously in a one-to-many configuration.
What is the default IP address of the EXT-AVIP120MRX?
192.168.168.56 (MAC 00:0b:78:00:60:02); the paired EXT-AVIP120M transmitter defaults to 192.168.168.55.
What power does the EXT-AVIP120MRX require?
A DC 5V/1A power adapter (included), with 3W max consumption.
What are the dimensions and weight of the EXT-AVIP120MRX?
4.07 in x 3.68 in x 0.97 in (103.5 x 93.5 x 24.6 mm), weighing 0.49 lbs (220g).
There is no video on the display connected to this receiver. What should I check?
Verify both the TX and RX power LEDs are lit, confirm both are on the same network subnet with unique IP addresses, check that the CAT5e/6 cable follows the EIA-TIA 568B standard, and try the reset procedure on both units.
There is a ghost image or distortion on the output. What should I check?
Check the display's resolution settings, try a higher-quality CAT6 cable, and ensure cable length does not exceed 120m for 1080p 8-bit signals.
What deployment types is the EXT-AVIP120MRX suited for?
Signage, education, and commercial AV networks that need additional displays added to an existing point-to-many or many-to-many EXT-AVIP120M system.
Does the EXT-AVIP120MRX share the same enclosure and interface as the receiver in the EXT-AVIP120M kit?
Yes, it uses the same compact metal enclosure, mounting ears, embedded IP configuration interface, and IR pass-through capability as the receiver included in the EXT-AVIP120M kit.
