USB 2.0 Extender over Cat6 100 Meters
480Mbps Plug-and-Play Extension to 328ft for Webcams, Printers & HID Devices — No Drivers Required

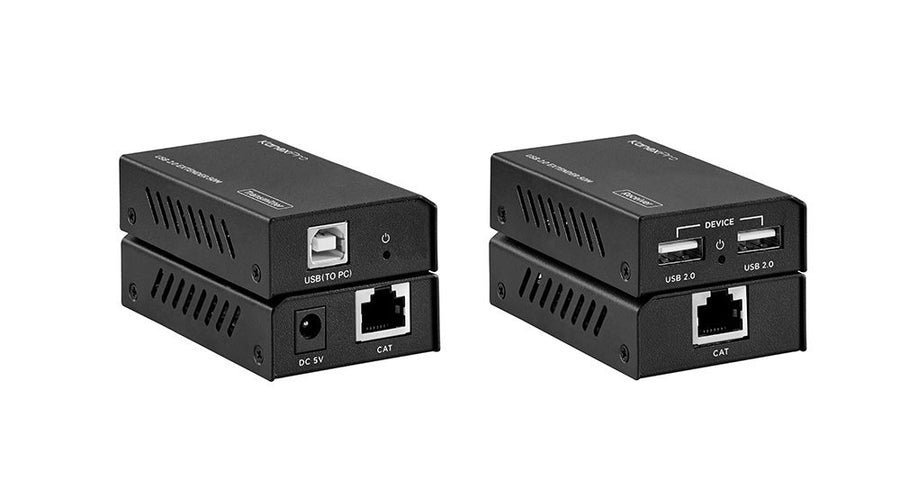

The KanexPro EXT-USB2100M extends USB 2.0 at 480Mbps up to 100 meters (328ft) over a single Cat5e/6 cable — delivering two USB-A ports at the remote end for webcams, touch screens, printers, HID devices, and USB hubs. Completely plug-and-play with no driver installation required, the EXT-USB2100M is the straightforward USB extension solution for AV integrators and IT managers who need reliable peripheral reach without 5Gbps overhead.
Designed for conference rooms, classrooms, digital signage, and healthcare environments, the EXT-USB2100M connects a USB-B transmitter to a compact dual-port receiver over existing Cat5e or Cat6 infrastructure. Backward compatible with USB 1.1, it works with the broadest range of USB peripherals and is backed by KanexPro’s 3-year parts and labor warranty.
- Ultra Slim 330ft. (100m) USB 2.0 extender
- Simple plug and play, no driver or setting installation required
- Supports USB 2.0 protocol, transmission rate up to 480Mbps
- Features one USB-B port input in transmitter
- Features two USB 2.0 ports outputs on the receiver
- Supports PoC function — either transmitter or receiver powered by 12V/1A adapter, the other doesn't need power supply
- ESD protection: ±8kV Air-gap discharge, ±4kV Contact discharge
- Compact design for easy and flexible installation
- Backed by KanexPro 3-Year Parts and Labor Warranty
| Specification | Value |
|---|---|
| Technical | |
| USB Protocol | USB 2.0 |
| Transmission Rate | Up to 480Mbps |
| Transmission Distance | 100m / 328ft over Cat5e/6 |
| ESD Protection | ±8kV Air-gap discharge, ±4kV Contact discharge |
| Connections — Transmitter | |
| Input | 1× USB [USB-B, Female] |
| Output | 1× CAT [RJ45, Female] |
| Connections — Receiver | |
| Input | 1× CAT [RJ45, Female] |
| Output | 2× USB [USB-A, Female] |
| Mechanical | |
| Housing | Metal Enclosure · Black |
| Dimensions | TX / RX: 82mm (W) × 49mm (D) × 20mm (H) |
| Weight | TX / RX: 100g each |
| Power & Environment | |
| Power Supply | Input: AC 100–240V 50/60Hz · Output: DC 12V/1A |
| Power Consumption | Transmitter: 1.3W · Receiver: 2.3W |
| Operating Temp | 0°C – 40°C / 32°F – 104°F |
| Storage Temp | -20°C – 60°C / -4°F – 140°F |
| Relative Humidity | 20–90% RH (non-condensing) |
| Package Contents | |
| 1× | USB 2.0 Extender (Transmitter) |
| 1× | USB 2.0 Extender (Receiver) |
| 1× | USB Cable (USB-B Male to USB-A Male, 1m) |
| 1× | 12V/1A Locking Power Adapter |
| 1× | User Manual |
Why only 2 USB ports on the receiver?
Will this work with my USB webcam for Zoom or Teams calls?
Will it work over existing Cat5e infrastructure?
Is it backward compatible with USB 1.1 devices?
Does it need power on both ends?
No device recognized at the receiver — how to troubleshoot?
