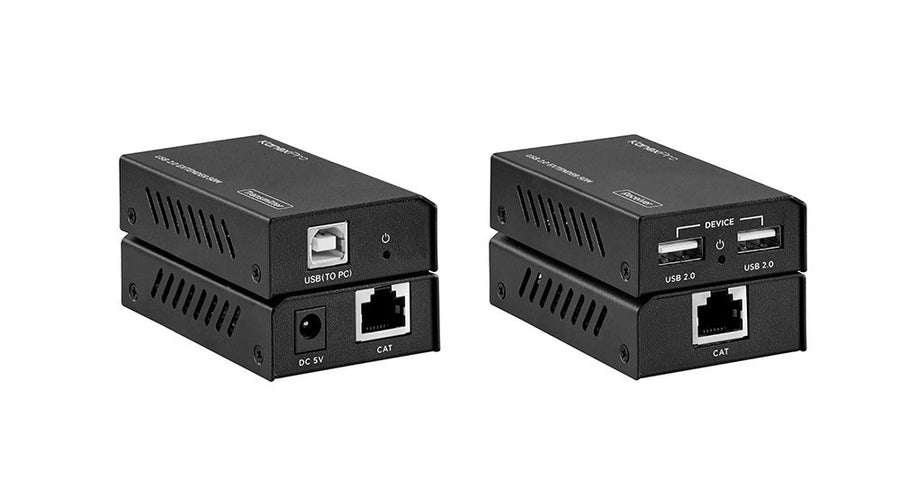

USB 2.0 Extender over Cat6 50 Meters
480Mbps Plug-and-Play Extension to 164ft for Webcams, Printers & HID Devices — No Drivers Required
The KanexPro EXT-USB250M extends USB 2.0 at 480Mbps up to 50 meters (164ft) over a single Cat5e/6 cable — delivering two USB-A ports at the remote end for webcams, touch screens, printers, HID devices, and USB hubs. The Transmitter draws power directly from the host USB-B port, while the Receiver uses a compact 5V/1A adapter. Completely plug-and-play with no driver installation required.
Designed for smaller conference rooms, classrooms, and digital signage environments where 164ft of USB reach is sufficient, the EXT-USB250M is the compact, cost-effective entry point in the KanexPro USB extender range. Backward compatible with USB 1.1 and backed by KanexPro’s 3-year parts and labor warranty.
- Ultra Slim 165ft. (50m) USB 2.0 extender
- Simple plug and play, no driver or setting installation required
- Supports USB 2.0 protocol, transmission rate up to 480Mbps
- Features one USB-B port input in transmitter
- Features two USB 2.0 ports outputs on the receiver
- Transmitter bus-powered from host USB-B port — no external power adapter required at TX end
- Receiver powered by included 5V/1A adapter
- Note: transmission distance up to 40m for some USB 2.0 hubs
- ESD protection: ±8kV Air-gap discharge, ±4kV Contact discharge
- Compact design for easy and flexible installation
- Backed by KanexPro 3-Year Parts and Labor Warranty
| Specification | Value |
|---|---|
| Technical | |
| USB Protocol | USB 2.0 |
| Transmission Rate | Up to 480Mbps |
| Transmission Distance | 50m / 164ft over Cat5e/6 (Note: up to 40m for some USB 2.0 hubs) |
| ESD Protection | ±8kV Air-gap discharge, ±4kV Contact discharge |
| Connections — Transmitter | |
| Input | 1× USB [USB-B, Female] |
| Output | 1× CAT [RJ45, Female] |
| Power | Bus-powered via USB-B host port — no external adapter required |
| Connections — Receiver | |
| Input | 1× CAT [RJ45, Female] |
| Output | 2× USB [USB-A, Female] |
| Power | DC 5V/1A (included adapter) |
| Mechanical | |
| Housing | Metal Enclosure · Black |
| Dimensions | TX / RX: 82mm (W) × 49mm (D) × 20mm (H) |
| Weight | TX / RX: 100g each |
| Power & Environment | |
| Power Supply | TX: Bus-powered (USB-B) · RX: Input AC 100–240V 50/60Hz, Output DC 5V/1A |
| Power Consumption | Transmitter: 0.7W · Receiver: 1W |
| Operating Temp | 0°C – 40°C / 32°F – 104°F |
| Storage Temp | -20°C – 60°C / -4°F – 140°F |
| Relative Humidity | 20–90% RH (non-condensing) |
| Package Contents | |
| 1× | USB 2.0 Extender (Transmitter) |
| 1× | USB 2.0 Extender (Receiver) |
| 1× | USB Cable (USB-B Male to USB-A Male, 1m) |
| 1× | 5V/1A Power Adapter |
| 1× | User Manual |
No device recognized at the Receiver — how to troubleshoot?
What is the maximum transmission distance?
Will this work with my USB webcam for video conferencing?
Does it work over existing Cat5e infrastructure?
Does the Transmitter need its own power adapter?
Is it backward compatible with USB 1.1 devices?
