KanexPro Output Extender for HDSC92D-4K scaler

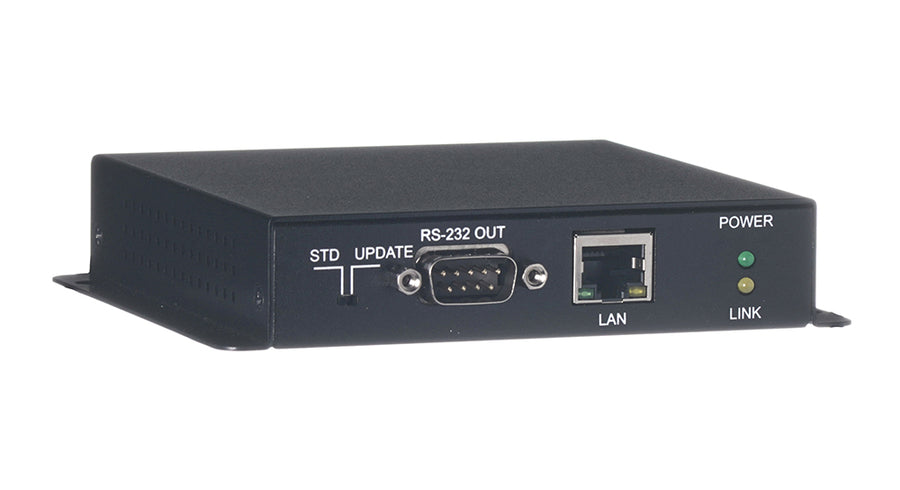

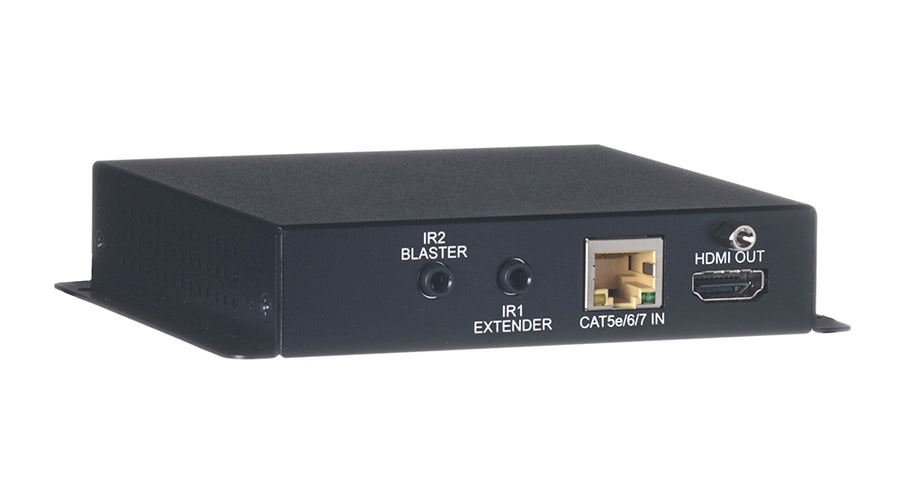

The KanexPro HDSC92D-4KRX is an HDMI over single Cat5e/6 Receiver can receive uncompressed audio/video and IP data over a single run of CAT5e/6/ cable at a distance up to 100 meters. The Receiver features passthrough of control through the built-in RS-232and IR ports and a bi-directional LAN connection which allows for integrators to pass data through the extender. The receiver can be powered by the PoE 48V power which can be supplied by a POE injector or by the Transmission device. This unit has been specifically designed to operate with the KanexPro HDSC92D-4K Scaler system, or can be used as a stand-alone extender when combined with the KanexPro HDSC92D-4KTX transmitter.

 APPLICATIONS

•     48V PoE from Transmitter (PSE) to Receiver(PD)

•     Household entertainment sharing and control

•     Lecture room display and control

•     Showroom display and control

•     Meeting room presentation and control

•     Classroom display and control

•     HDMI with 3D, 4K2K support, HDMI & DVI Compliant

•     Supports CEC by pass

•     Simultaneous reception of uncompressed data over a single100m/328ftCAT5e/6/6acable

•     HDMI, LAN, PoE & Control (IR &RS-2232)

•     Supports resolution up to 4K2K@50/60 & YUV_420 and21:9

•     Supports standard 48V from Transmitter to Receiver

•     Supports HDMI Output cable distance up to 5m at 4K2K@50/60& YUV_420

      •     Backed by KanexPro 3 -Year Parts & Labor Warranty
