Name: 4K60 HDMI/USB-C 1×4 Video Wall Controller
Brand: KanexPro
SKU: VW-HDUSBC1X4

Overview

Display a single 4K source across up to four screens with pixel-perfect bezel compensation and flexible layout configurations. The KanexPro VW-HDUSBC1X4 is an 18Gbps 1×4 video wall controller that accepts HDMI or USB-C input at up to 4K@60Hz 4:4:4 and distributes it across four HDMI outputs in eight video wall modes — from 2×2 grids to 1×4 horizontal strips.

Compliant with HDMI 2.0b and HDCP 2.2, the controller supports Dolby Digital, DTS, and LPCM audio pass-through with dedicated optical and analog L/R audio de-embedding. Control via front-panel buttons, IR remote, or a full RS-232 ASCII command set for integration with third-party control systems. The compact metal enclosure (220×100×30 mm) fits any installation environment.

Key features

Accepts 4K@60Hz 4:4:4 input via HDMI 2.0b or USB-C with 18Gbps bandwidth and HDCP 2.2 compliance
Distributes a single source across up to four HDMI displays in 8 video wall configurations: 1×1, 2×1, 3×1, 4×1, 1×2, 1×3, 1×4, and 2×2
Horizontal and vertical bezel compensation (0–10 range) for seamless image alignment across display bezels
180° image rotation per output channel for flexible display orientation in custom installations
Optical (S/PDIF) and analog L/R (RCA) audio de-embedding supporting Dolby Digital, DTS 5.1, and LPCM up to 7.1 channels
Full RS-232 ASCII command set (115200 baud) for integration with Crestron, Extron, AMX, and other control systems
Six EDID modes per input for reliable source negotiation across mixed display environments

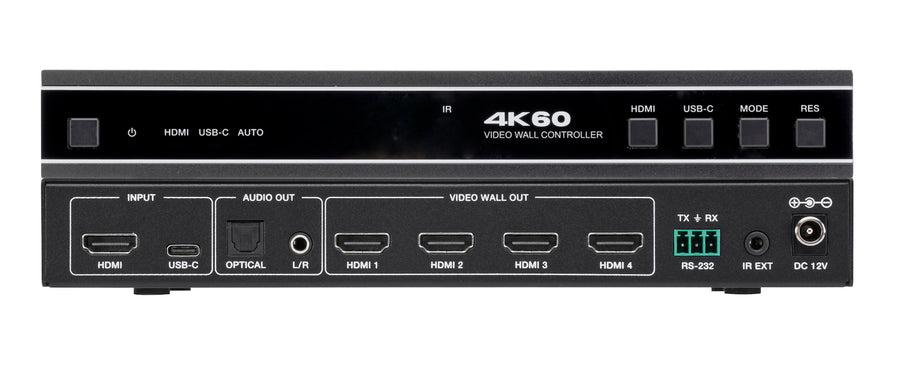

Compact metal enclosure (220×100×30 mm) with front-panel buttons, IR remote, and IR extender port

Specification	Value
Technical
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2
Video Bandwidth	18 Gbps
Video Resolution (Input)	Up to 4K@60Hz 4:4:4
Video Resolution (Output)	720p@60Hz, 1080p@60Hz, 4K@30Hz, 1024×768@60Hz (XGA)
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth	8/10/12-bit
IR Level	5Vp-p
IR Frequency	38 KHz
Audio Formats (HDMI IN/OUT)	LPCM 2.0/5.1/7.1, Dolby Digital/Plus/EX, DTS, DTS-EX, DTS-96/24
Audio Formats (L/R OUT)	PCM 2.0
Audio Formats (Optical/S/PDIF)	Dolby Digital/Plus, DTS 5.1, PCM 2.0
Audio Latency	No Latency
Video Latency	No Latency
ESD Protection	Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)
Connection
Input Ports	1× HDMI INPUT [Type A, 19-pin female], 1× USB-C INPUT [Type C, 24-pin female]
Output Ports	4× HDMI OUTPUT [Type A, 19-pin female], 1× Optical Audio Out [S/PDIF], 1× L/R Audio Out [RCA]
Control Ports	1× RS-232 [3-pin 3.81mm Phoenix connector], 1× IR EXT [3.5mm stereo mini-jack]
Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions	220 mm (W) × 100 mm (D) × 30 mm (H)
Weight	590 g
Power Supply	Input: AC 100–240V 50/60Hz, Output: DC 12V/1A (US/EU standard, CE/FCC/UL certified)
Power Consumption	5.5W (max)
Operating Temperature	32–104°F / 0–40°C
Storage Temperature	−4–140°F / −20–60°C
Relative Humidity	20–90% RH (non-condensing)
HDMI Cable Length
4K@60Hz	8 m / 26 ft
4K@24Hz	10 m / 32 ft
1080p@60Hz	15 m / 49 ft
Certifications
Regulatory	CE, FCC, UL
Package Contents
1×	Video Wall Controller
1×	12V/1A Power Adapter
1×	IR Remote Control
1×	5V IR Receiver Cable (1.5 m)
1×	3-pin 3.81mm Phoenix Connector (male)
4×	Machine Screws
4×	Rubber Feet
4×	Screw Posts
1×	User Manual

4K60 HDMI/USB-C 1×4 Video Wall Controller panel drawing

4K60 HDMI/USB-C 1×4 Video Wall Controller system diagram

4K60 HDMI/USB-C 1×4 Video Wall Controller applications

Manual~~Installation and operation~~

Spec sheet~~Full specification~~

Sales sheet~~For bid packages~~

What video resolutions does this support on input?

Up to 4K@60Hz 4:4:4 via HDMI 2.0b or USB-C. 18Gbps bandwidth. Color depth up to 12-bit.

What output resolutions are available?

720p@60Hz, 1080p@60Hz, 4K@30Hz, and XGA (1024x768@60Hz). All four HDMI outputs share the same resolution.

Can I connect a USB-C laptop directly?

Yes. The USB-C input accepts DP Alt Mode video up to 4K@60Hz 4:4:4. No dongle or adapter required.

Can I route audio to an external amplifier or PA system?

Yes. Use the optical S/PDIF output for digital audio or the L/R RCA output for analog stereo to any external amplifier, soundbar, or PA system.

What power supply does this require?

DC 12V/1A via the included power adapter. Input range AC 100-240V 50/60Hz. Maximum power consumption 5.5W.

What is the maximum HDMI cable length?

8m (26ft) at 4K@60Hz, 10m (32ft) at 4K@24Hz, 15m (49ft) at 1080p@60Hz. Use Premium High Speed HDMI cables.

No image on one or more outputs.

Verify HDMI cables are Premium High Speed rated. Check that the selected video wall mode includes the affected output. In video wall mode (except 1x1), only screens assigned to the wall display images.

Output resolution looks wrong.

Press the RES button on the front panel or use the RS-232 command to cycle output resolutions. Ensure displays support the selected resolution.

How does this differ from the KanexPro VW-SP1X44K?

VW-SP1X44K is the previous generation: HDMI-only input, larger rack-mount form factor, older chipset. VW-HDUSBC1X4 adds USB-C, compact desktop form, HDMI 2.0b/HDCP 2.2, and 4K60 4:4:4 input.

What video wall modes are supported?

Eight configurations: 1x1, 2x1, 3x1, 4x1, 1x2, 1x3, 1x4, and 2x2. Bezel compensation adjustable 0-10 in both H and V directions.
