1×4 HDMI 4K UHD Video Wall Processor with Bezel Correction

Name: 1×4 HDMI 4K UHD Video Wall Processor with Bezel Correction
Brand: KanexPro
SKU: VW-SP1X44K

Create Video Walls from 2x2, 2x3 & 3x3 screens up to 9-Displays

VW-SP1X44KUPC 813982021594

In stock

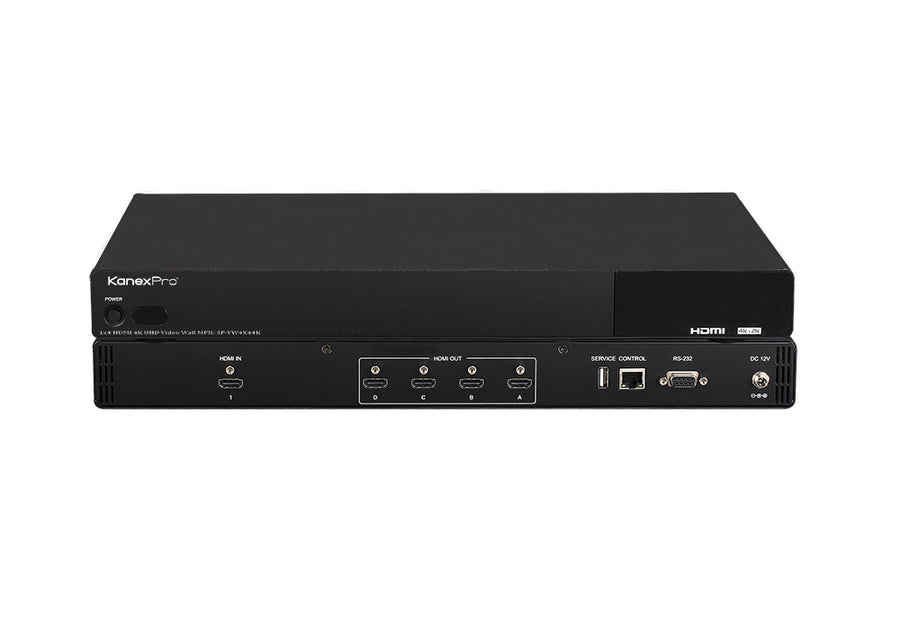

1×4 HDMI 4K UHD Video Wall Processor with Bezel Correction – KanexPro VW-SP1X44K

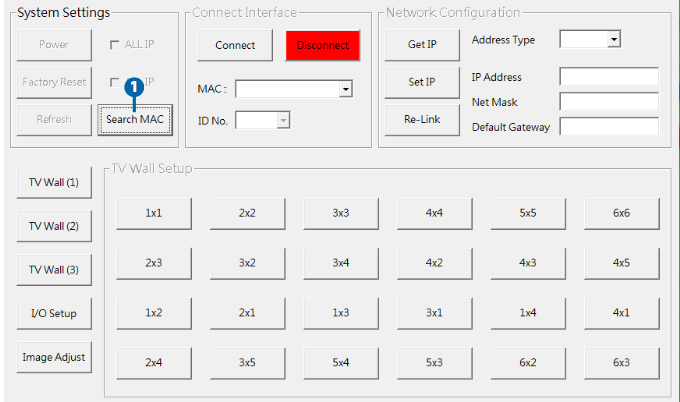

1×4 HDMI 4K UHD Video Wall Processor with Bezel Correction – KanexPro VW-SP1X44K, view 2

Trade pricing and stock

Specifications, drawings and documents stay open to everyone. Net pricing, stock by warehouse and ordering need an approved trade account.

Apply Sign in

Approval is usually same working day.

Overview

The KanexPro VW-SP-1X44K is a 4K based video processor which allows one HDMI input to be freely arranged on to four 4K displays. It offers bezel correction support with a simple and easy to use control application. The device supports video output timings up to WUXGA@60 and 1080p@60Hz, audio format up to 7.1CH LPCM at 192kHz sampling rate based on input source EDID.

Easy to Control from Anywhere

The video processor can be controlled from anywhere using a tablet or any other 3rd party control system using RS-232 and Telnet.

Applications:

Ideal for digital signage markets, large scale presentations, hyper market displays and command and control applications where high resolution video wall is needed.

Key features

1x4 Video Processor with Built-in Bezel Correction and Control
Can be cascaded to create up to 3x3 Video Wall (9- displays)
Can also be used as a 1x4 DA (splitter)
Supports 4K x 2K@24/25/30Hz
HDCP compliant
Outputs video signal to 4 displays with a full image & adjustable Bezel Correction
Input PC resolutions: from VGA~WUXGA & HDTV from 480i~1080p & 4K2K@24/25/30Hz
Various Audio Format Support: AC3/DTS/Dolby Digital Plus/Dolby TrueHD/Dolby Atmos and DTS-HD Master Audio
Control via RS-232 & Telnet (Ethernet)
One locking power supply included
1U (19”) rack mountable enclosure
Backed by KanexPro 3-year parts and labor warranty

Video Bandwidth: 300MHz/9Gbps

Input Ports: 1×HDMI (Female type), 1×Control (RJ45), 1×RS-232 (D-sub 9-pin), 1×USB (Service only)

Output Ports: 4×HDMI (Female type) 10M/8-bit 1080p

HDMI Cable Distance:

5 meters for 4Kx2K,
10 meters for /8-bit FullHD 1080p
100-150 meters over CAT5e/6 Exenders can be used to create long distances (optional)

Baud Rate: 115200 bps

Chassis Material: Metal enclosure

Color: Black

Operating Temperature: 0 °C~40 °C / 32 °F~ 04 °F

Storage Temperature: −20 °C~60 °C / −4 °F~140 °F

Relative Humidity: 20~90 % RH (non-condensing)

ESD Protection: Human body model: ± 8 kV (air-gap discharge) ± 4 kV (contact discharge)

Power Supply: 12V/3A DC (US/EU standards, CE/FCC/UL certified)

Power Consumption: 12.98W

Weight : 6.51lbs. (2956g)

Dimensions:

17.0"(W) × 11.0"(D) x 1.7" (H) - Jacks Excluded
19.0"(W) × 10.78"(D) x 2.0" (H) - Jacks Included

1×4 HDMI 4K UHD Video Wall Processor with Bezel Correction system diagram

Manual~~Installation and operation~~

Spec sheet~~Full specification~~

What input resolutions does the VW-SP1X44K accept?

The HDMI IN port accepts PC resolutions from VGA up to WUXGA, HDTV formats from 480i up to 1080p, and 4K2K at 24, 25, or 30Hz.

What output resolutions does the VW-SP1X44K deliver to each display?

Per the unit's Output Resolution reference table and its Introduction, output video timings top out at WUXGA@60 and 1080p@60Hz -- the Introduction explicitly states supported output timings are 'up to WUXGA@60 and 1080p@60Hz,' and no entry in the output resolution table exceeds 2048x1152 (RB).

How do I configure a video wall layout and bezel correction by command?

Set the wall format with SMN N1 N2 (N1=row, N2=column, each 1-15), then apply SBH N1 and SBV N1 (each 0-255) for horizontal and vertical bezel correction, and SBEZ N1 to enable or disable bezel correction (0=Off, 1=On).

How can multiple VW-SP1X44K units be combined into a larger video wall?

The unit can be cascaded to create video walls of up to 3x3 (9 displays), using the Cascade Output shown in the connection diagram to daisy-chain a second unit -- for example, two units combine to drive a 2x3 (6-screen) layout.

How is the VW-SP1X44K powered, and what does it weigh?

It is powered by a 12V/3A DC locking power supply (US/EU standards, CE/FCC/UL certified) rated at 12.98W consumption, and weighs 6.51 lbs (2956g) in a metal black 1U (19 in) rack-mountable chassis.

What is included in the box?

The package includes one VW-SP1X44K, one 12V/3A DC power adaptor, and one operation manual.

Video appears with incorrect colors when feeding a resolution above 4K2K. What should I check?

The device only supports RGB color space for input signals above 4K2K -- YUV is not supported at those resolutions. Set the source to output RGB rather than YCbCr/YUV.

RS-232 commands are not controlling a multi-unit or cascaded video wall setup. What should I check?

RS-232 control is limited to a single Video Wall unit and is not intended for use with cascade or bypass output connections. Use Telnet via the CONTROL RJ45 port with the VW-SP1X44K AP application instead for multi-unit control.

Why choose the VW-SP1X44K for a growing video wall deployment?

A single 1x4 unit can be cascaded with additional units to build video walls up to 3x3 (9 displays), letting integrators scale a deployment without swapping out the original processor hardware.

Can the VW-SP1X44K be used for something other than a video wall?

Yes -- it can also be used as a straightforward 1x4 distribution amplifier (splitter) when bezel-corrected video wall output is not needed.
