8K HDMI Audio De-Embedder with ARC
Extract Audio from Any 8K HDMI Source or ARC TV to Optical and Analog Outputs
AUD-DEBED-8KUPC 813982023550
In stock
Overview

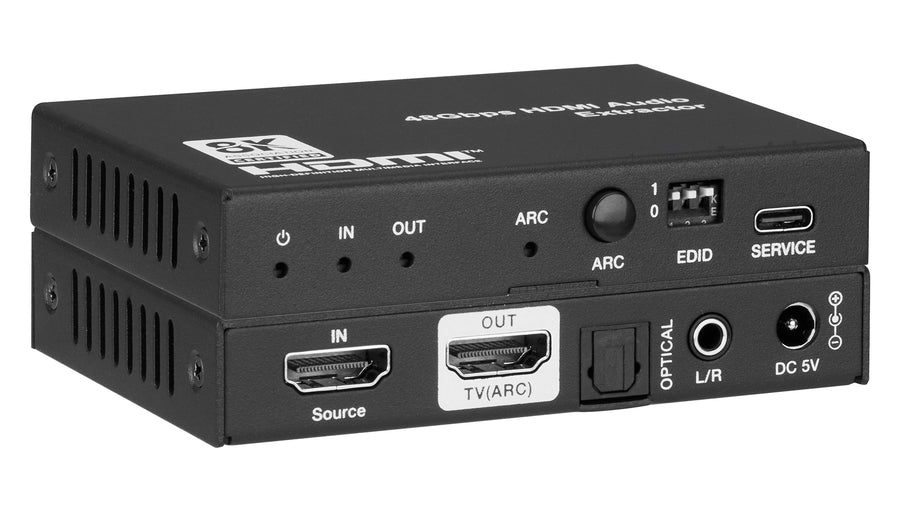

The KanexPro AUD-DEBED-8K is a professional-grade HDMI 2.1 audio de-embedder engineered for integrators who need to extract high-fidelity audio from next-generation 8K sources or ARC-enabled displays without sacrificing video performance. Supporting 48Gbps FRL bandwidth and full HDMI 2.1 compliance including VRR, ALLM, QMS, QFT, and SBTM, it passes video transparently up to 8K@60Hz and 4K@120Hz while simultaneously de-embedding audio to both S/PDIF optical and analog L/R outputs — making it the ideal bridge between modern HDMI 2.1 sources and legacy audio systems. With its dual audio extraction modes — direct HDMI source audio or ARC return from a connected TV — the AUD-DEBED-8K solves the most common integration challenge in modern home theater and commercial AV: connecting 8K-capable sources to amplifiers, DSPs, and mixing systems that lack HDMI inputs.
Key features
- HDMI 2.1 and HDCP 2.3 compliant — supports 48Gbps FRL and 18Gbps TMDS video bandwidth
- Video resolution up to 8K@60Hz 4:2:0 12-bit and 4K@120Hz 4:4:4 12-bit
- HDMI 2.1 advanced features: VRR, ALLM, QMS, QFT, and SBTM supported
- HDR pass-through: HDR, HDR10, HDR10+, Dolby Vision, and HLG
- Audio pass-through: LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X
- Dual audio output: S/PDIF Optical (PCM 2.0CH, Dolby, DTS 5.1CH) + L/R Analog (PCM 2.0CH)
- ARC mode: extracts TV return audio via ARC-enabled HDMI output port with CEC control
- Advanced 8-mode DIP EDID management — EDID copy, FRL/TMDS modes, 2.0CH/5.1CH selection
- USB-C service port for firmware updates and debug
- Compact metal enclosure: 95×68×18mm, 178g — ideal for rack-adjacent or in-wall installation
| Video | |
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
| Video Bandwidth | 48Gbps FRL and 18Gbps TMDS |
| Video Resolution | Up to 8K@60Hz 4:2:0 12-bit; 4K@120Hz 4:4:4 12-bit |
| Color Space | RGB, YCbCr 4:4:4, 4:2:2, 4:2:0 |
| Color Depth | 8/10/12-bit |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| HDMI 2.1 Features | VRR, ALLM, QMS, QFT, SBTM |
| Audio | |
| HDMI Audio (Pass-through) | LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD Master Audio, DTS:X, DSD |
| Optical Out | PCM 2.0CH, Dolby, DTS 5.1CH |
| L/R Out | PCM 2.0CH Analog Stereo |
| Connections | |
| Input | 1× Source IN [HDMI Type A, 19-pin female] |
| Output | 1× TV(ARC) OUT [HDMI Type A, 19-pin female]<br>1× L/R [3.5mm Stereo mini-jack]<br>1× OPTICAL [S/PDIF, female] |
| Control | 1× SERVICE [USB Type C, update/debug port] |
| Mechanical | |
| Dimensions | 95mm [W] × 68mm [D] × 18mm [H] |
| Weight | 178g |
| Housing | Metal Enclosure — Black |
| Power Supply | Input: AC 100–240V 50/60Hz; Output: DC 5V/1A (CE/FCC/UL certified) |
| Power Consumption | 4W (Max) |
| ESD Protection | ±8kV Air-gap discharge; ±4kV Contact discharge |
| Environment | |
| Operating Temperature | 0°C – 40°C / 32°F – 104°F |
| Storage Temperature | -20°C – 60°C / -4°F – 140°F |
| Relative Humidity | 20–90% RH (non-condensing) |
| Package Contents | |
| Includes | 1× AUD-DEBED-8K 48Gbps HDMI Audio De-Embedder<br>1× 5V/1A Multinational Power Supply<br>1× User Manual |
What is included in the box?
The package includes one AUD-DEBED-8K 48Gbps HDMI Audio De-Embedder, one 5V/1A multinational power supply, and one user manual.
How does ARC mode work on this de-embedder?
ARC mode extracts TV return audio through the ARC-enabled TV(ARC) OUT HDMI port, with CEC control for the audio handshake, in addition to de-embedding audio from a direct HDMI source at the HDMI IN port.
What video resolutions and bandwidth does the AUD-DEBED-8K support?
It supports HDMI 2.1 at up to 48Gbps FRL and 18Gbps TMDS, passing video up to 8K@60Hz 4:2:0 12-bit or 4K@120Hz 4:4:4 12-bit, and is HDCP 2.3 compliant.
Which HDR formats and HDMI 2.1 features pass through?
HDR pass-through includes HDR, HDR10, HDR10+, Dolby Vision, and HLG. HDMI 2.1 advanced features VRR, ALLM, QMS, QFT, and SBTM are all supported.
How is ARC controlled at the unit, and what do the ARC LED states mean?
An ARC button on the front panel toggles ARC on/off. The ARC LED indicates status: on means ARC is enabled with normal CEC, flashing means ARC is enabled but CEC communication is abnormal, and off means ARC is disabled.
What is the SERVICE port used for?
The rear-panel SERVICE port is a USB Type-C connector used for firmware updates and debug access.
How is the AUD-DEBED-8K powered and what are its dimensions?
It is powered by DC 5V/1A from an AC 100-240V 50/60Hz multinational power supply (4W max consumption), and measures 3.74 in x 2.68 in x 0.71 in (95 x 68 x 18mm), weighing 0.39 lbs (178g) in a metal black enclosure.
There is no audio from the Optical output. What should I check?
Verify the EDID DIP switch setting matches your amplifier's audio capability, check that the Optical cable is fully seated, and confirm the source is actually outputting audio over HDMI.
The ARC LED is flashing. What does that mean?
A flashing ARC LED indicates ARC is enabled but CEC communication is abnormal. Enable HDMI-CEC in the TV's settings and ensure the TV is connected to the TV(ARC) OUT port.
Why choose the AUD-DEBED-8K for an 8K source installation?
It preserves full 8K@60Hz/4K@120Hz HDMI 2.1 video pass-through, including VRR, ALLM, and HDR10+/Dolby Vision, while simultaneously de-embedding audio -- letting integrators route audio to a separate amplifier without degrading the video path to the display.
