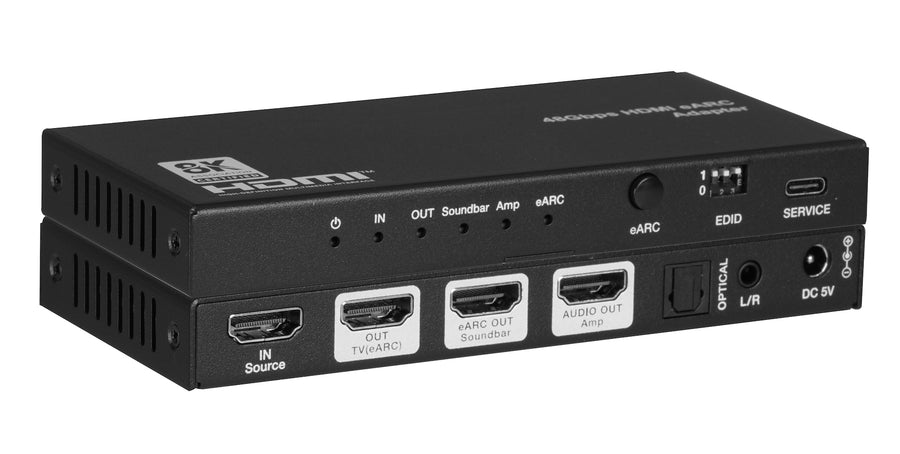

8K HDMI eARC Audio Adapter

De-embed & Distribute Audio from Any HDMI 2.1 or eARC/ARC Source

AUD-EARC-8KUPC 813982023895
In stock8K HDMI eARC Audio Adapter – KanexPro AUD-EARC-8K
Trade pricing and stock
Specifications, drawings and documents stay open to everyone. Net pricing, stock by warehouse and ordering need an approved trade account.
Apply Sign in

Approval is usually same working day.

Overview

Route audio simultaneously to a soundbar, amplifier, optical, and analog output from a single eARC TV port — one device replaces two. The KanexPro AUD-EARC-8K is a 48Gbps HDMI 2.1 eARC Audio Adapter with a dedicated Soundbar eARC HDMI output, Amp AUDIO HDMI output, S/PDIF optical, and analog L/R — all active at once from one commercial-grade unit. It does not decode or downmix audio: each output carries the incoming format unchanged and plays the formats it supports. The HDMI outputs take everything up to Dolby Atmos and DTS:X, optical takes PCM 2.0 and Dolby/DTS 5.1, and analog L/R plays PCM 2.0 only, so set the TV or source to PCM 2.0 for sound on L/R.

Fully compliant with HDMI 2.1 and HDCP 2.3, it passes video at up to 8K@60Hz and 4K@120Hz with HDR10, Dolby Vision, and HLG intact. Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X are supported on all HDMI outputs. An 8-mode DIP switch provides tool-free EDID management; CEC enables TV remotes to control sources and volume across any connected eARC sound system.

Key features
  • HDCP 2.3 compliant
  • Support 48Gbps video bandwidth and video resolution up to 8K@60Hz 4:2:0 12bit and 4K@120Hz 4:4:4 12bit, as specified in HDMI 2.1
  • VRR, ALLM, QMS, QFT, SBTM are supported, as specified in HDMI 2.1
  • Support HDR, HDR10, HDR10+, Dolby Vision pass-through
  • Support LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through on the HDMI outputs
  • HDMI input source and TV eARC/ARC audio are de-embedded to S/PDIF, L/R and HDMI audio to output, each in the incoming format with no decoding or downmixing: optical up to Dolby/DTS 5.1, analog L/R PCM 2.0 only
  • HDMI input source is de-embedded to any eARC/ARC soundbar to output
  • Support full Audio up to Dolby Atmos/DTS:x from eARC TV to SONOS ARC & Beam or any eARC soundbar
  • Support CEC control from TV to the source
  • Support CEC volume control from TV to any eARC sound system
  • Advanced EDID management
  • USB-C service port for firmware updates and serial control

Connection

Input

1 × HDMI IN [Type A, 19-pin female]

Output

1 × TV (eARC) OUT [HDMI Type A, 19-pin female]

1 × Soundbar eARC OUT [HDMI Type A, 19-pin female]

1 × Amp AUDIO OUT [HDMI Type A, 19-pin female]

1 × OPTICAL [S/PDIF]

1 × L/R [3.5mm Stereo Mini-jack]

Controlports

1 × SERVICE [USB Type C, Update Port]

Mechanical

Housing

Metal Enclosure

Colour

Black

Dimensions

145mm [W] × 68mm [D] × 18mm [H]

Weight

262 g

Operating Temperature

0°C ~ 40°C / 32°F ~ 104°F

Storage Temperature

-20°C ~ 60°C / -4°F ~ 140°F

Power Supply

Input: AC100-240V 50/60Hz,

Output: DC 5V/1A

(US/EU standards, CE/FCC/UL certified)

Power Consumption (Max)

 5.2W (Max)

Relative Humidity

20~90% RH (Non-condensing)

Technical

HDMI Compliance

HDMI 2.1

HDCP Compliance

HDCP 2.3

Video Bandwidth

48Gbps FRL and 18Gbps TMDS

Video Resolution

Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit

Color Depth

8/10/12-bit

Color Space

RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0

Audio Formats

HDMI Input/Output:

LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X

eARC AUDIO Out:

LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X

Amp AUDIO Out:

LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X

Audio de-embedding output:

Optical: PCM 2.0CH/Dolby/DTS 5.1CH

L/R: PCM 2.0CH

HDR

HDR, HDR10, HDR10+, Dolby Vision, HLG

ESD Protection

IEC 61000-4-2:

±8kV (Air-gap discharge) & ±4kV (Contact discharge)

VideoResolution

8K

4K@60

4K@30

1080P

HDMI Cable Type

 Ultra HDMI 2.1

HDMI 2.0

HDMI 1.4

HDMI 1.4

HDMICableLength

(HDMI IN / OUT)

3m/10ft

8m/26ft

12m/39ft

15m/49ft

Theuseof“PremiumHigh-Speed HDMI”cableishighlyrecommended.



8K HDMI eARC Audio Adapter panel drawing
8K HDMI eARC Audio Adapter system diagram
8K HDMI eARC Audio Adapter applications
ManualInstallation and operation
Spec sheetFull specification
Sales sheetFor bid packages
What audio formats are supported on the HDMI outputs?
LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X.
Does the analog L/R output on AUD-EARC-8K downmix multichannel LPCM to stereo?
No. The analog L/R output on AUD-EARC-8K does not downmix or decode multichannel audio. It only supports PCM 2.0, so it produces no audio if the eARC source sends multichannel LPCM (5.1/7.1) or a Dolby Digital/DTS bitstream. Set the TV's eARC audio output to PCM 2.0 (stereo) for L/R output to work.
Does the AUD-EARC-8K analog L/R output downmix Dolby, DTS or multichannel PCM audio to stereo?
No. The AUD-EARC-8K does not decode or downmix audio. Each output carries the input format unchanged and plays only formats it supports. The analog L/R output supports PCM 2.0 only, so set the TV or source audio output to PCM 2.0 to get sound on L/R.
The eARC LED is flashing — what does that mean?
eARC mode is enabled but CEC communication is not working properly. Check CEC settings on the TV and connected devices.
How do I set EDID?
Use the 8-position DIP switch. 8 preconfigured profiles in FRL12G and FRL10G across 2.0/5.1/7.1CH modes. No software required.
Can this feed both a soundbar and an amplifier simultaneously?
Yes — Soundbar eARC HDMI OUT and Amp AUDIO HDMI OUT are both active simultaneously, along with optical and L/R.
How does this replace two DVDO units?
Combines soundbar eARC HDMI out and amplifier HDMI audio out in one unit — replacing DVDO AudioE-2 and AudioE-3 at lower total cost with one power supply.
Does it support Sonos Arc and Beam?
Yes — the Soundbar eARC OUT delivers full Dolby Atmos and DTS:X to SONOS ARC, Beam, and any eARC-compatible soundbar.
What power supply is required?
Included 5V/2A multinational supply (CE/FCC/UL, AC 100-240V 50/60Hz). Max 5.2W.
What HDMI cable length is recommended for 8K?
Ultra High Speed HDMI 2.1 up to 3m/10ft for 8K; up to 8m/26ft for 4K@60Hz.
