4K60 & Ultrawide HDMI KVM Extender with USB 3.2 over CAT6a (40m/130ft)
Put the Workstation in the Rack and Everything Else on the Desk — 4K60 4:4:4, 32:9 Ultrawide Support & USB 3.2 at 2.5Gbps

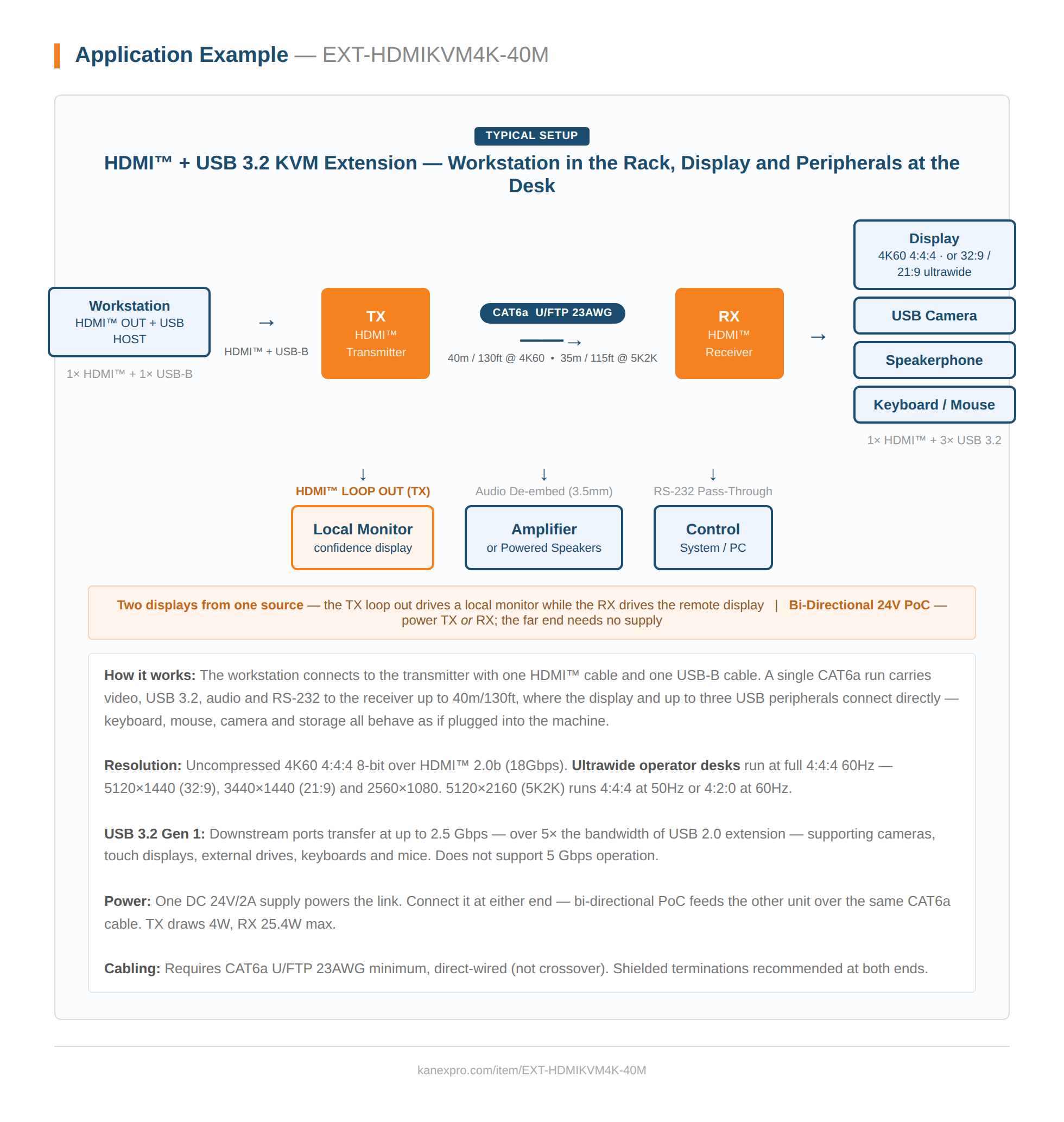

Puts the workstation in the rack and everything else on the desk — over one CAT6a cable. The EXT-HDMIKVM4K-40M extends uncompressed 4K60 4:4:4 video, USB 3.2 Gen 1 peripherals at 2.5Gbps, analog audio and RS-232 up to 40m/130ft, so the host machine can live in a conditioned closet while the display, keyboard, mouse, camera and drives stay at the operator position. Both units are metal-enclosed, draw 29.4W combined, and run from a single 24V supply connected at either end via bi-directional PoC — the right choice for control rooms, edit bays and clinical workstations where USB peripheral performance matters more than raw cable distance.
An HDMI loop out on the transmitter drives a local monitor at the same time the receiver drives the remote display, and three downstream ports at the far end — two USB-A and one USB-C — take modern peripherals without adapters. Ultrawide operator desks are supported natively at 5120×1440 (32:9) and 3440×1440 (21:9), both at 60Hz 4:4:4. RS-232 pass-through, an ASCII command set and 25 EDID presets make it specifiable into a control system rather than a fixed point-to-point link. Its defining advantage is USB bandwidth: at 2.5Gbps it carries more than five times what USB 2.0 extension delivers, which is the difference between a 4K room camera or an external drive working at the far end and not.
- Extends uncompressed 4K60 4:4:4 HDMI video and USB 3.2 Gen 1 data up to 40m/130ft over a single CAT6a cable
- USB 3.2 Gen 1 at up to 2.5 Gbps — more than 5× the bandwidth of USB 2.0 extension (does not support 5 Gbps operation)
- HDMI loop out on the transmitter drives a local monitor simultaneously with the remote display
- Three downstream USB device ports on the receiver — 2× USB-A and 1× USB-C, 5V/1.5A per port
- Ultrawide support — 5120×1440 (32:9) and 3440×1440 (21:9) at 60Hz 4:4:4; 5120×2160 at 50Hz
- HDCP 2.3 and HDCP 1.x, with HDR, HDR10, HDR10+, Dolby Vision and HLG pass-through
- RS-232 pass-through plus ASCII command API and 25 EDID presets for control-system integration
- Analog audio de-embedding at both transmitter and receiver via 3.5mm output (LPCM 2CH, 32–192kHz)
- Bi-directional 24V PoC — one power supply at either end powers both units over the CAT6a cable
| Specification | |
|---|---|
| Technical | |
| USB Protocol | USB 3.2 Gen 1 |
| USB Transfer Rate | Up to 2.5 Gbps (does not support 5 Gbps operation) |
| HDCP Compliance | HDCP 2.3 and HDCP 1.x |
| HDMI Compliance | HDMI 2.0b |
| Video Bandwidth | 18 Gbps |
| Video Resolution | Up to 3840×2160@60Hz and 4096×2160@60Hz 4:4:4; ultrawide 5120×1440@60Hz and 3440×1440@60Hz; 5120×2160@50Hz. Also 2560×1080@60Hz, 1080p, 1080i, 720p and standard PC resolutions from 640×480@60Hz. |
| Color Depth | 8-bit, 10-bit, 12-bit |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| HDR Formats | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Audio Formats — HDMI | LPCM, Dolby Digital / Plus / EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio |
| Audio Formats — Analog De-embed | LPCM 2CH (sample rate 32–192kHz) |
| Analog Audio Output Level (Max) | 2.2dBu (1Vrms) |
| Analog Audio Frequency Response | 20Hz to 20kHz (±0.5dB) |
| Analog Audio Dynamic Range | >90dB @ 0dBu, 1kHz, A-weighted |
| Analog Audio S/N Ratio | >90dB @ 0dBu, 1kHz, A-weighted |
| Analog Audio THD+N | <0.007% @ 2.2dBu output, 1kHz |
| Transmission Distance | 40m/130ft at 4K and 35m/115ft at 5K over CAT6a (U/FTP 23AWG minimum); 1.5m/4.9ft via USB 3.2 Gen 1 5Gbps passive cable; 3m/9.8ft via HDMI passive cable |
| Control | RS-232 pass-through; ASCII command API via SERVICE port (115200 baud, 8-N-1); 25 EDID presets including auto, copy-from-sink and two user-defined |

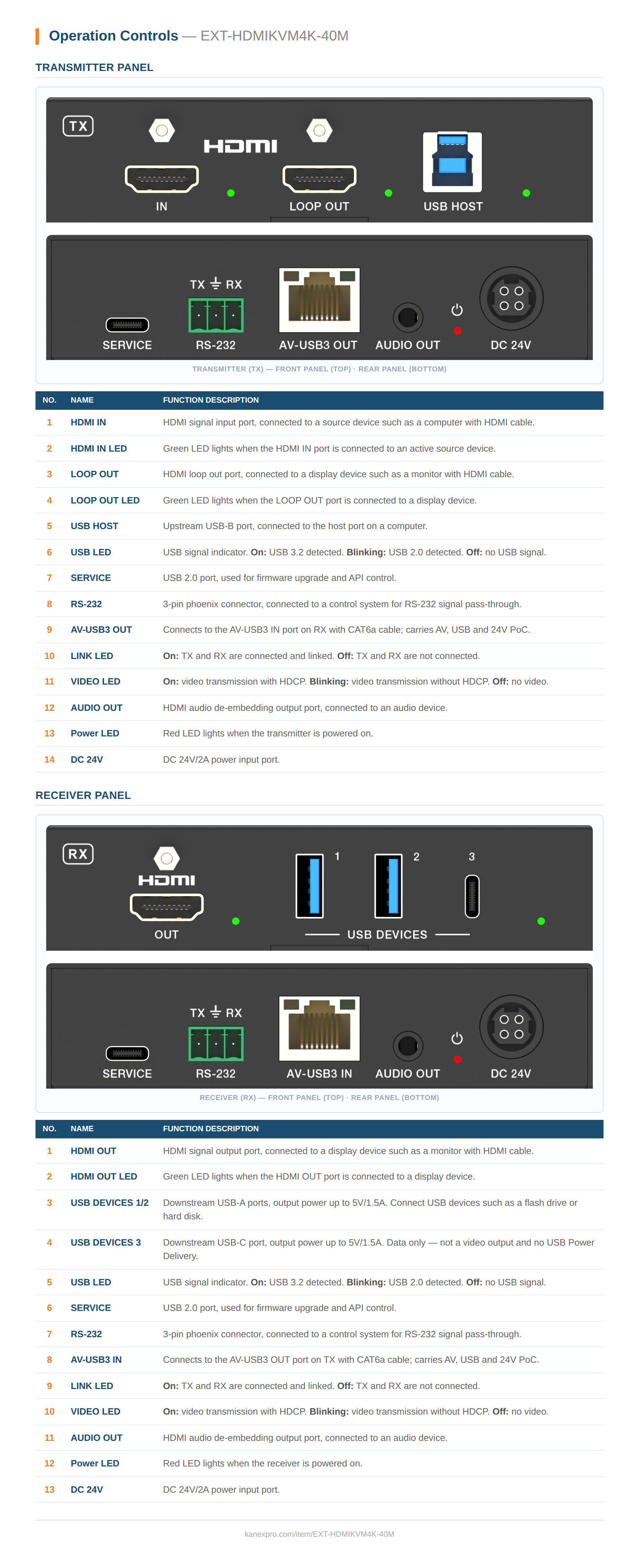

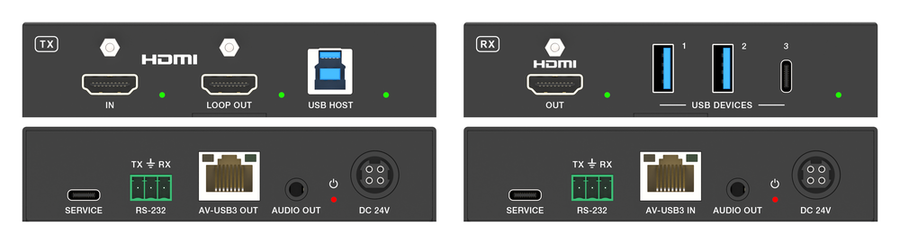

| Connections — Transmitter | |
| Input | 1× IN [HDMI Type A, 19-pin female]; 1× USB HOST [USB-B upstream, 9-pin female] |
| Output | 1× LOOP OUT [HDMI Type A, 19-pin female]; 1× AUDIO OUT [3.5mm audio jack]; 1× AV-USB3 OUT [RJ45, 24V PoC] |
| Control (TX) | 1× RS-232 [3-pin 3.5mm phoenix connector]; 1× SERVICE [USB-C, firmware update / API] |
| Connections — Receiver | |
| Input (RX) | 1× AV-USB3 IN [RJ45, 24V PoC] |
| Output (RX) | 1× OUT [HDMI Type A, 19-pin female]; 2× USB-A [downstream device, 9-pin female]; 1× USB-C [downstream device, 24-pin female]; 1× AUDIO OUT [3.5mm audio jack] |
| USB Device Port Power | 5V / 1.5A per port (data only — no DisplayPort Alt Mode, no USB Power Delivery) |
| Control (RX) | 1× RS-232 [3-pin 3.5mm phoenix connector]; 1× SERVICE [USB-C, firmware update / API] |
| Mechanical | |
| Housing | Metal enclosure, black |
| Dimensions (W×D×H) | 4.65" × 4.37" × 1.00" (118 × 111 × 25.5mm) — each unit |
| Weight | Transmitter 0.83 lbs (0.38kg); Receiver 0.84 lbs (0.38kg) |
| Power Supply | Input AC 100–240V 50/60Hz; Output DC 24V/2A |
| Power Consumption | Transmitter 4W (max); Receiver 25.4W (max) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Operating Humidity | 20% to 80% relative humidity, non-condensing |
| Storage Humidity | 10% to 90% relative humidity, non-condensing |
| Certifications | |
| Power Adapter | CE, FCC, UL certified (US/EU standards) |
| ESD Protection | IEC 61000-4-2: ±8kV air-gap discharge, ±4kV contact discharge |
| Package Contents | |
| 1× | Transmitter (HDMI IN) |
| 1× | Receiver (HDMI OUT) |
| 1× | 24V/2A power adapter |
| 2× | 3-pin 3.5mm phoenix connector |
| 4× | Mounting ear |
| 8× | Machine screw |
| 3× | Hexagonal copper stud |
| 1× | User manual |
