5K2K USB-C to USB-C Extender Kit with USB 3.2, 100W Charging and Touch Return, 40m
One USB-C Cable at the Lectern, One at the Interactive Display: DP Alt Mode Video, USB 3.2 Gen 1 Data and 100W Power Delivery over CAT6a
Extends a laptop's USB-C port to a USB-C interactive display or monitor up to 40m/130ft away - 4K60 video, USB 3.2 data and touch return on one CAT6a cable, with 100W charging at the desk. The EXT-USBC2C4K-40M transmitter accepts a full-featured USB-C input (DisplayPort Alt Mode 1.4a, USB 3.2 Gen 1 data, Power Delivery 3.0) and the receiver delivers a full-featured USB-C output - DP Alt Mode 1.4a video plus USB 3.2 Gen 1 data on the same connector - so an interactive display that takes touch over its USB-C input plugs in with a single USB-C cable and its touch, camera and hub come back to the presenter's laptop (single-cable touch tested on Windows). A display whose touch port is USB-B connects to a receiver USB port with a USB A-to-B cable. Three more USB 3.2 downstream ports, de-embedded analog audio and RS-232 pass-through sit at the display end.

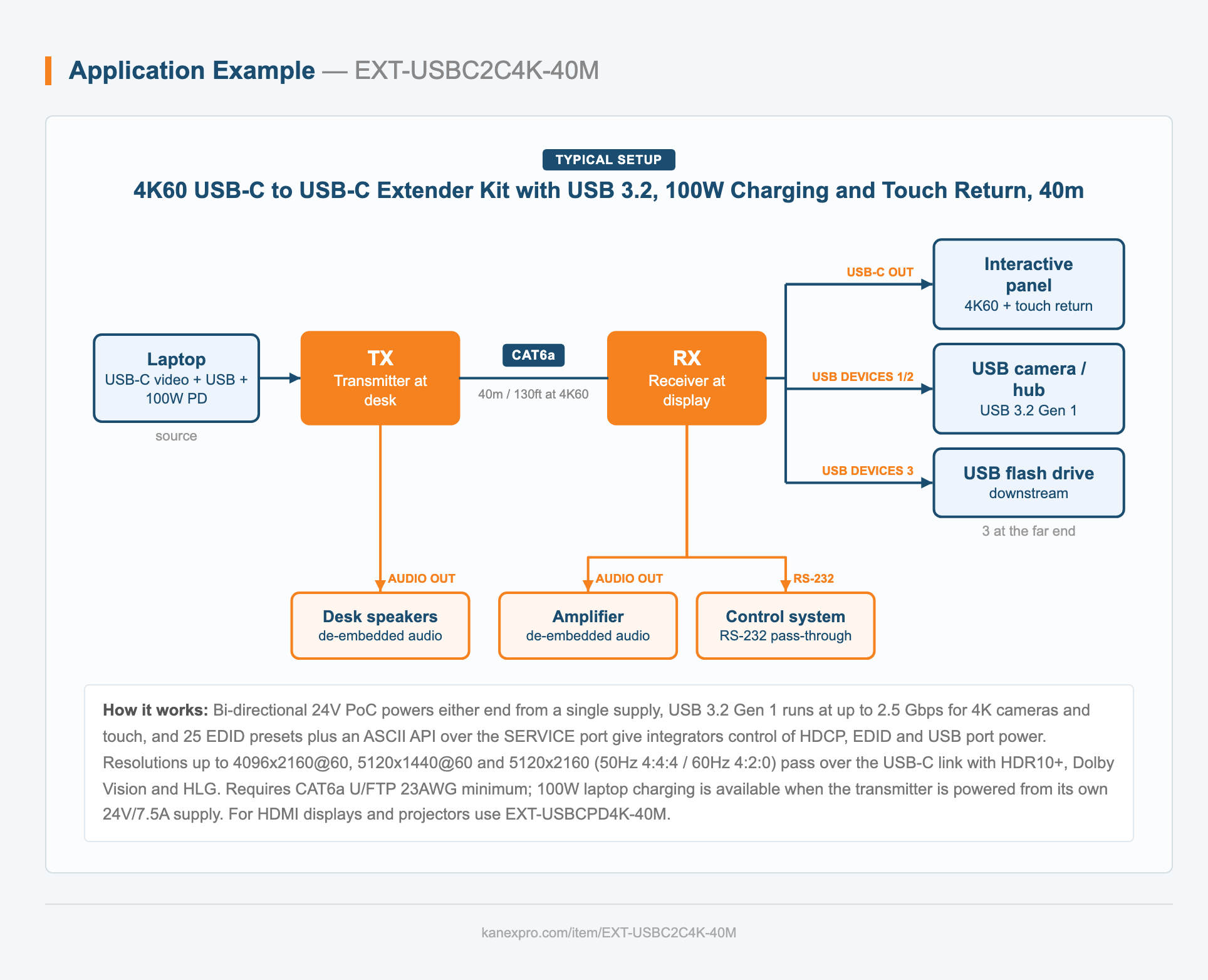

Bi-directional 24V PoC powers either end from a single supply, USB 3.2 Gen 1 runs at up to 2.5 Gbps for 4K cameras and touch, and 25 EDID presets plus an ASCII API over the SERVICE port give integrators control of HDCP, EDID and USB port power. Resolutions up to 4096x2160@60, 5120x1440@60 and 5120x2160 (50Hz 4:4:4 / 60Hz 4:2:0) pass over the USB-C link with HDR10+, Dolby Vision and HLG. Requires CAT6a U/FTP 23AWG minimum; 100W laptop charging is available when the transmitter is powered from its own 24V/7.5A supply. For HDMI displays and projectors use EXT-USBCPD4K-40M.
- Extends a full-featured USB-C source (DP Alt Mode 1.4a video, USB 3.2 Gen 1 data, PD 3.0 charging) up to 40m/130ft at 4K and 35m/115ft at 5K over one CAT6a cable
- Receiver provides a full-featured USB-C output: DP Alt Mode 1.4a video and USB 3.2 Gen 1 data on one connector - interactive displays connect with a single USB-C cable and touch returns to the laptop
- Up to 4K60 4:4:4 (18Gbps) with HDCP 2.3; also 5120x1440@60 and 5120x2160 (50Hz 4:4:4 / 60Hz 4:2:0)
- Up to 100W USB-C Power Delivery back to the laptop over the same USB-C cable (transmitter powered from the included 24V/7.5A supply)
- Three additional USB 3.2 Gen 1 downstream ports at the receiver (2x USB-A, 1x USB-C, 5V/1.5A each) for cameras, speakerphones and storage; up to 2.5 Gbps
- Bi-directional 24V PoC: power the transmitter or the receiver and the far end needs no supply
- Analog audio de-embedding (3.5mm, LPCM 2CH) at both ends plus RS-232 pass-through on 3-pin phoenix connectors
- HDR, HDR10+, Dolby Vision and HLG pass-through; 8/10/12-bit color; RGB and YCbCr 4:4:4 / 4:2:2 / 4:2:0
- ASCII API over the USB-C SERVICE port (115200 8N1): HDCP mode, 25 EDID presets including two user-defined, USB port power, status and firmware update; metal enclosures, ESD IEC 61000-4-2
Transcript

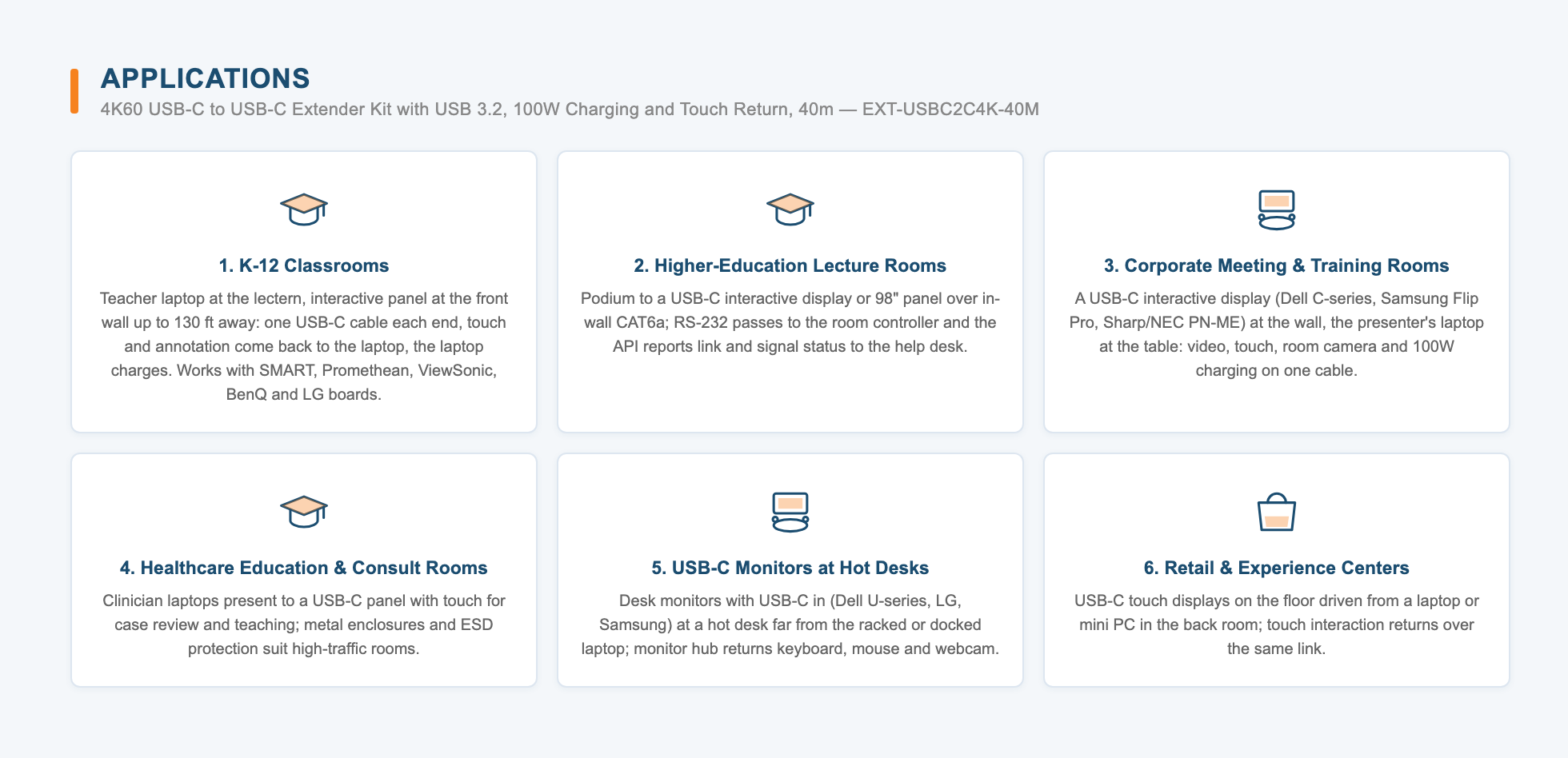

Hi, I'm Eric from KanexPro. This is the KanexPro USB-C to USB-C extender kit: one cable each end. Interactive displays take one USB-C cable, but not across a room; this kit takes it 40 metres. Built for big USB-C displays. The twenty-one by nine ultrawide in the video meeting room. The classroom panel: touch comes back to the laptop as you write. And a board on a cart. Here's how it connects. The laptop plugs in with one USB-C cable, one and a half metres at most. One CAT6a run carries it up to 40 metres. The receiver feeds the display, the room camera and the speakerphone. One 24 volt supply charges the laptop at up to 100 watts and powers both ends. For rooms with a big USB-C display. Video meeting rooms. Lecture halls and podiums. K-12 classrooms. Training rooms. Healthcare teaching rooms. Now, the key features. One plug at the table: picture, touch, camera and charge, no dongle. 5K ultrawide up to 35 metres, 4K at 60 hertz up to 40 metres. In-wall CAT6a, 40 metres: one kit per room. The touch controller is a USB device, so touch rides the same cable, tested on Windows. Up to 100 watts charges the laptop: no charger at the table. And for integrators: RS-232 at both ends, an ASCII API, 25 EDID presets and USB port power. Spec it into your next room. Thanks for watching. I'm Eric from KanexPro. See you next time.
| Technical | |
| USB-C Input (TX) | Full-featured USB-C: DisplayPort Alt Mode 1.4a video, USB 3.2 Gen 1 and USB 2.0 data, USB-C Power Delivery 3.0 |
| USB-C Output (RX) | Full-featured USB-C: DisplayPort Alt Mode 1.4a video and USB 3.2 Gen 1 data on one connector (touch / hub return to the source) |
| USB Protocol | USB 3.2 Gen 1 and USB 2.0; transfer rate up to 2.5 Gbps (5 Gbps operation not supported) |
| USB-C Charging | Up to 100W PD to the source (transmitter must be powered from its 24V/7.5A supply) |
| Video / HDCP | DisplayPort 1.4a Alt Mode; HDCP 2.3 and HDCP 1.x; 18Gbps |
| Video Resolution | 480i to 4096x2160@60; 2560x1080@60, 3440x1440@60, 5120x1440@50/60, 5120x2160@50/60 (5K60 at 4:2:2/4:2:0, 8-bit) |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through |
| Color Depth / Space | 8/10/12-bit (8-bit at 5K60 4:2:2); RGB, YCbCr 4:4:4, 4:2:2, 4:2:0 |
| Audio Format | LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio; analog de-embed LPCM 2CH 32-192kHz |
| Analog Audio | 2.2dBu (1Vrms) max; 20Hz-20kHz +/-0.5dB; dynamic range and S/N >90dB; THD+N <0.006% |
| Transmission Distance | Up to 40m/130ft at 4K, 35m/115ft at 5K over CAT6a U/FTP 23AWG minimum, direct-wired; USB-C cables 1.5m/4.9ft (USB 3.2 Gen 1 passive) or 2m/6.6ft (USB 2.0 passive) |
| ESD Protection | IEC 61000-4-2: +/-8kV air-gap, +/-4kV contact |
| Control | RS-232 pass-through (3-pin phoenix, both ends); ASCII API via USB-C SERVICE port, 115200 baud 8N1; HDCP, 25 EDID presets (2 user-defined), USB port power, status, reboot, reset, firmware update |
| Connections | |

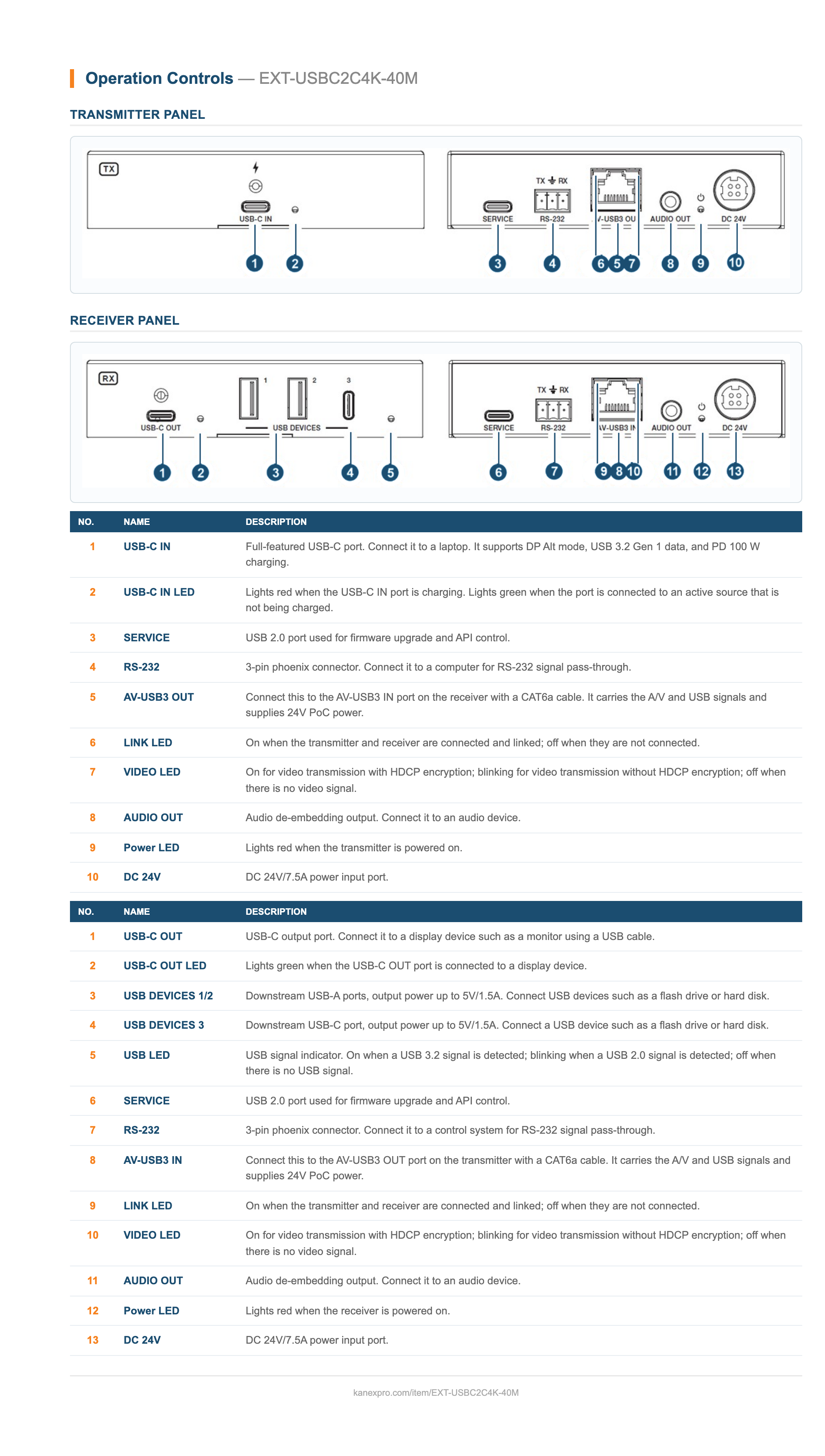

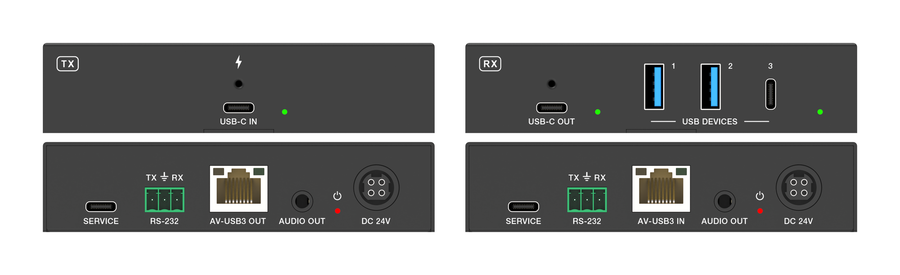

| Transmitter | Input: 1x USB-C IN (24-pin female). Output: 1x AUDIO OUT (3.5mm), 1x AV-USB3 OUT (RJ45, 24V PoC). Control: 1x RS-232 (3-pin 3.5mm phoenix), 1x SERVICE (USB-C) |
| Receiver | Input: 1x AV-USB3 IN (RJ45, 24V PoC). Output: 1x USB-C OUT (DP Alt Mode + USB 3.2 data), 2x USB-A downstream, 1x USB-C downstream (5V/1.5A each), 1x AUDIO OUT (3.5mm). Control: 1x RS-232 (3-pin 3.5mm phoenix), 1x SERVICE (USB-C) |
| Mechanical | |
| Housing / Color | Metal enclosure, black |
| Dimensions | Transmitter and Receiver each: 4.65" x 4.37" x 1.00" (118 x 111 x 25.5mm) |
| Weight | Transmitter 0.79 lbs (359g); Receiver 0.80 lbs (365g) |
| Power Supply | Input AC 100-240V 50/60Hz; output DC 24V/7.5A (included; CE/FCC/UL). Far end powered by PoC |
| Power Consumption | Transmitter 4.36W max without charging, 106W max with 100W USB-C charging; Receiver 33W max |
| Operating Temperature | 32°F to 104°F (0°C to 40°C); storage -4°F to 140°F (-20°C to 60°C) |
| Humidity | Operating 20-80% RH; storage 10-90% RH, non-condensing |
| Certifications | CE, FCC, UL (power supply) |
| Package Contents | |
| Package Contents | 1× Transmitter (USB-C IN); 1× Receiver (USB-C OUT); 1× 24V/7.5A power adapter; 2× 3-pin 3.5mm phoenix connector; 4× Mounting ear; 8× Machine screw; 1× User manual |
Does touch work over the single USB-C cable on the EXT-USBC2C4K-40M, and on which systems?
How far can this extender carry a 4K signal, and over what cable?
What USB data rate does the EXT-USBC2C4K-40M carry?
How do you control the EXT-USBC2C4K-40M from an AV system?
Does each end of the EXT-USBC2C4K-40M need its own power supply?
How must the CAT cable between the two boxes on the EXT-USBC2C4K-40M be wired?
There is no image on the display connected to the EXT-USBC2C4K-40M. What should I check?
The LINK LED on the EXT-USBC2C4K-40M is off. What does that indicate?
Which interactive displays work with the USB-C receiver?
Does touch come back to the laptop?
