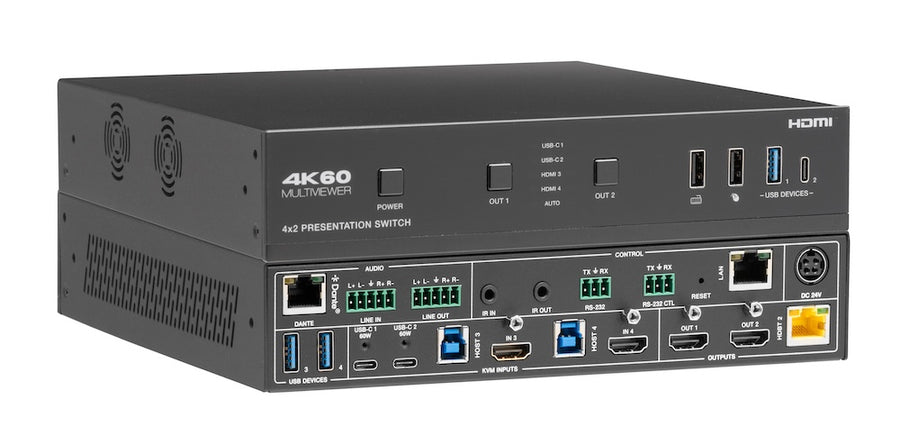

4×2 HDMI/USB-C 4K60 Seamless Presentation Switch with HDBaseT 3.0 70m Out
4K60 4:4:4 Multiview Switcher with USB-C 60W PD, USB 3.2 KVM, Dante® Audio & HDBaseT 3.0
SW-4X2PS-70MUPC 813982024007
In stock
Overview
Seamless 4K60 presentation switching with multiview, USB-C connectivity, KVM control, and HDBaseT 3.0 extension — in a single half-rack unit. The KanexPro SW-4X2PS-70M is a 4×2 seamless presentation switch that routes four video sources (2× USB-C, 2× HDMI) to two HDMI outputs plus one HDBaseT 3.0 output at resolutions up to 4K@60Hz 4:4:4 with HDCP 2.3 compliance.
Multiple multiview display modes (PIP, PBP, Triple, Quad, Custom) allow simultaneous viewing of up to four sources on a single screen. USB-C inputs deliver DisplayPort Alt Mode A/V, USB 3.2 Gen 1 data, and 60W power delivery. Built-in audio DSP with Dante® 2×2 I/O, USB 3.2 KVM switching with keyboard/mouse hotkeys, and HDBaseT 3.0 extension up to 70m complete an integrated conferencing and presentation solution. Control via front panel, IR remote, RS-232, TCP/IP, or Web GUI.
Key features
- Routes 2× USB-C and 2× HDMI sources to 2 HDMI outputs at up to 4K@60Hz 4:4:4 with HDCP 2.3 and 18 Gbps bandwidth
- Multiview display modes: Auto, Single, PIP, PBP, Triple, Quad, and 5 Custom layouts with seamless switching
- USB-C inputs support DP Alt Mode A/V, USB 3.2 Gen 1 (5 Gbps), 1G LAN passthrough, and 60W PD charging per port
- HDBaseT 3.0 output (mirrored with HDMI OUT 2) extends uncompressed 4K60 4:4:4 up to 40m or 1080p/4K30 up to 70m via CAT6A
- USB 3.2 KVM switching with keyboard and mouse hotkey support; USB 2.0 extension to receiver over HDBaseT
- Built-in audio DSP with mixing, matrixing, 31-band GEQ, volume, delay, and Dante® 2×2 audio I/O
- CEC and RS-232 display power control; advanced EDID management (17 modes); 8 preset scenes
- Control via front panel buttons, IR remote, RS-232, TCP/IP (Web GUI) — included HDBaseT receiver with PoE
| Specification | |
|---|---|
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.3 |
| DP Version | DP 1.4 |
| Video Bandwidth | 18 Gbps |
| Video Resolution | Up to 4K@60Hz 4:4:4 |
| Color Depth | 8/10/12-bit |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Audio Formats | USB-C/HDMI/HDBT: Digital audio, 32–192 kHz/24-bit, LPCM 2CH; LINE IN/OUT: Analog balanced/unbalanced 2CH; Dante®: LPCM 2CH, 44.1–96 kHz, 16/24-bit |
| USB Bandwidth | USB 3.2 Gen 1 up to 5 Gbps |
| Network Bandwidth | LAN and USB-C: 1 Gbps; Dante®: 100 Mbps |
| ESD Protection | IEC 61000-4-2: ±8 kV (air-gap), ±4 kV (contact) |
| IR Level / Frequency | 12 Vp-p • Wideband 20K–60 KHz |
| Analog Audio | |
| TX Line Input Level (Max) | 8.2 dBu (2 Vrms) • Input Impedance: 10KΩ |
| TX Line Output Level (Max) | Balanced: 8.2 dBu (2 Vrms) • Unbalanced: 2.2 dBu (1 Vrms) • Output Impedance: 330Ω |
| RX Line Output Level (Max) | Balanced: 8.2 dBu (2 Vrms) • Unbalanced: 2.2 dBu (1 Vrms) • Output Impedance: 330Ω |
| Audio S/N Ratio | 93 dB @ 2 Vrms, 1 kHz A-weighted |
| Audio THD+N | <0.1% @ 0 dBV, 1 kHz |
| Frequency Response | +0.5 dB, −1 dB, 20 Hz to 20 kHz |
| Audio Delay | TX: 2/3/4/5/10 ms • RX: <1 ms • Sync: 0–50 ms |
| Connection — Transmitter | |
| Input | 2× HDMI IN [Type A, 19-pin] • 2× USB-C IN [Type C, 24-pin] • 1× LINE IN [5-pin phoenix] • 1× DANTE IN [RJ45] |
| Output | 2× HDMI OUT [Type A, 19-pin] • 1× HDBT OUT [RJ45, 48V PoE/PSE] • 1× LINE OUT [5-pin phoenix] |
| Control | 1× RS-232 [3-pin phoenix] • 1× RS-232 CTL [3-pin phoenix] • 1× LAN [RJ45] • 1× IR IN • 1× IR OUT [3.5mm] |
| USB | 2× USB 3.2 HOST [Type B] • 3× USB 3.2 DEVICES [Type A] • 2× USB 1.1 KVM [Type A] • 1× USB-C DEVICE |
| Connection — Receiver | |
| Input | 1× HDMI IN [Type A, 19-pin] • 1× HDBaseT IN [RJ45, 48V PoE/PD] |
| Output | 1× HDMI OUT [Type A, 19-pin] • 1× LINE OUT [5-pin phoenix] |
| Control | 1× RS-232 [3-pin phoenix] • 1× IR IN • 1× IR OUT [3.5mm] |
| USB | 1× USB HOST [Type B] • 2× USB DEVICES [Type A] • 1× SERVICE [Micro USB] |
| Mechanical | |
| Housing | Front panel: Aluminum; Rear case: Metal Enclosure |
| Color | Black |
| Dimensions (TX) | 220 mm (W) × 220 mm (D) × 44.5 mm (H) |
| Dimensions (RX) | 140 mm (W) × 105 mm (D) × 21.5 mm (H) |
| Weight | Transmitter: 1.78 kg; Receiver: 424 g |
| Power Supply | AC 100–240V 50/60 Hz → DC 24V/8A |
| Power Consumption | 170W (Max) |
| Operating Temperature | 32–104°F / 0–40°C |
| Storage Temperature | −40–140°F / −40–60°C |
| Operating Humidity | 20–80% RH (non-condensing) |
| Storage Humidity | 10–90% RH (non-condensing) |
| Transmission Distance | |
| HDBT 4K60 4:4:4 | Up to 132 ft / 40m (CAT6A F/FTP) |
| HDBT 1080p / 4K30 | Up to 230 ft / 70m (CAT6A F/FTP) |
| HDMI | Up to 9.8 ft / 3m |
| USB-C | Up to 9.8 ft / 3m |
| Package Contents | |
| 1× | 4×2 Seamless Presentation Switch (Transmitter) |
| 1× | HDBaseT Receiver |
| 1× | IR Blaster Cable (1.5m) |
| 1× | IR Wideband Receiver Cable (1.5m) |
| 3× | 3-pin 3.5mm Phoenix Connector |
| 3× | 5-pin 3.5mm Phoenix Connector |
| 4× | Mounting Ears |
| 8× | Machine Screws |
| 1× | 24V/8A Desktop Power Supply with AC Power Cord (1.5m) |
| 1× | IR Remote |
| 1× | Product Manual |
What video standards and resolution does the SW-4X2PS-70M support?
It is HDMI 2.0b, HDCP 2.3, and DP 1.4 compliant, supporting video resolution up to 4K@60Hz 4:4:4 with 18Gbps bandwidth and 8/10/12-bit color depth.
What can the USB-C inputs carry besides video?
Each USB-C input supports DisplayPort Alt Mode A/V up to 4K60 4:4:4, USB 3.2 Gen 1 data at up to 5 Gbps, 1G LAN passthrough, and up to 60W Power Delivery charging per port.
How do I connect to the switch over RS-232, and what is a basic status command?
Connect to the RS-232 CTL port (3-pin phoenix) via an RS-232-to-USB adapter at 115200 baud, 8N1, with commands ending in <CR><LF>. The same protocol is available over TCP port 8000. Send 'status' to get a full device status report, or 'get power' to check current power state.
How do I set a specific EDID mode on an input via RS-232?
Use the command 'set input x edid y' where x is the input (0-4) and y is the EDID mode (1-17, covering Auto, Copy from Out1/Out2/HDBT, fixed resolutions like 4K60_444 or 1080P, PC resolutions, or User 1/2). Use 'get input x edid' to read back the current mode.
How is the SW-4X2PS-70M powered and how much does the transmitter and receiver weigh?
The transmitter runs on AC 100-240V 50/60Hz to DC 24V/8A (170W max), measuring 8.66 in x 8.66 in x 1.75 in (220 x 220 x 44.5mm) and weighing 3.92 lbs (1.78kg). The included HDBaseT receiver measures 5.51 in x 4.13 in x 0.85 in (140 x 105 x 21.5mm) and weighs 0.93 lbs (424g).
What is included in the box?
The package includes the 4x2 Seamless Presentation Switch (transmitter), an HDBaseT Receiver, an IR Blaster Cable (1.5m), an IR Wideband Receiver Cable (1.5m), 3x 3-pin and 3x 5-pin 3.5mm Phoenix connectors, 4 mounting ears, 8 machine screws, a 24V/8A desktop power supply with AC cord (1.5m), an IR
There is no video on one or more displays. What should I check?
Confirm Premium High Speed HDMI cables are in use; for 4K60 the cable length must not exceed 3m for HDMI or 40m for HDBaseT via CAT6A F/FTP. Check output enable status via Web GUI or the RS-232 command 'get output x enable', verify the output resolution matches the display or is set to Auto, and che
My laptop's USB-C port shows no video. What should I check?
Confirm the laptop's USB-C port actually supports DisplayPort Alternate Mode, since not all USB-C ports output video. Use a cable that supports both DP Alt Mode and USB 3.2, and check the input's EDID setting if the signal is still not detected.
Why choose the SW-4X2PS-70M for a BYOD conference room?
It consolidates two USB-C laptops and two HDMI sources into one switch with seamless multiview, USB 3.2 KVM, and Dante audio, while extending a mirrored output up to 70m over a single CAT6A cable to a remote display -- reducing rack hardware in a video conferencing room.
What benefit does the 70m HDBaseT reach provide over a standard HDMI run?
HDBaseT 3.0 extends a mirrored HDMI OUT 2 signal up to 132ft/40m at full 4K60 4:4:4, or up to 230ft/70m at 1080p/4K30, over a single CAT6A cable -- far beyond the roughly 3m practical limit of a direct HDMI run, without adding a separate extender.
