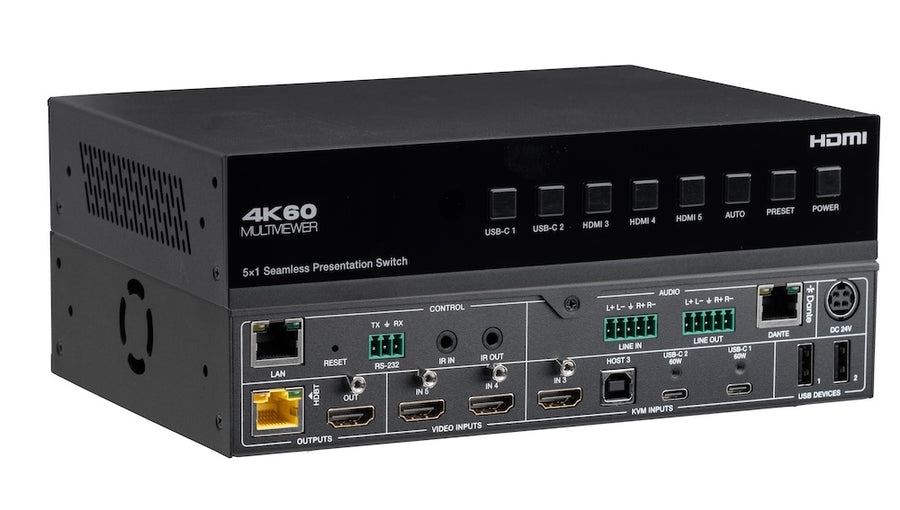

Name: 5×1 HDMI/USB-C 4K60 Seamless Presentation Switch with HDBaseT 3.0 70m Out
Brand: KanexPro
SKU: SW-5X1PS-70M

Overview

The KanexPro SW-5X1PS-70M is a professional-grade 5×1 seamless presentation switcher. It supports 2× HDMI, 1× HDMI with USB-B, and 2× USB-C (DP Alt-Mode) inputs with 60W charging, delivering uncompressed 4K@60Hz video over HDMI and HDBaseT extension up to 70 meters.

The receiver includes 1× HDMI, 1× USB-B for PC input, 1× HDMI output, and 2× USB-A extension ports. These USB ports allow connection of peripherals such as keyboard, mouse, USB camera, and other devices, enabling efficient USB extension and KVM functionality.

The switch supports single-screen and advanced Multiview modes (Single, PIP, PBP, Triple, Quad) with integrated USB 2.0 KVM.

It features 1× analog audio input, 1× analog audio output, Dante® 2×2 audio I/O, analogue audio embedding/de-embedding, and a built-in 3×3 audio matrix with DSP.

The device can be controlled via front panel, bi-directional IR, RS-232, RS-232 pass-through, TCP/IP, Web GUI, and Dante Controller, making it a flexible hub for professional AV environments.

The receiver can be powered either by a 24V DC adapter or PoE over HDBaseT.

Key features

HDMI 2.0b, HDCP 2.2 and DP 1.2 compliant
Supports 18Gbps video bandwidth
Supports video resolution up to 4K@60Hz 4:4:4
Uncompressed 4K@60 over HDBaseT 3.0 up to 40m (132ft) via single CAT6a (F/FTP)
Uncompressed 1080p & 4K@30 over HDBaseT 3.0 up to 70m (230ft) via single CAT6a (F/FTP)
Up to 5 multiview display modes: Single / PIP / PBP / Triple / Quad
5×1 seamless switching (single screen) and fast switching in multiview mode
Inputs: 2× USB-C, 2× HDMI, 1× HDMI with USB-B, 1× Analog audio in, 1× Dante 2ch
Outputs: 1× HDMI, 1× HDBaseT (mirrored), 1× Analog audio out, 1× Dante 2ch
HDMI and HDBaseT (PoE) mirrored outputs
Dante 2×2 audio input and output
Supports analog/Dante audio embedding and de-embedding
USB-C supports DP Alt Mode for A/V, USB 2.0, 100M Ethernet and 60W charging
Local USB 2.0 KVM switching and USB 2.0 extension over HDBaseT 3.0
Supports manual and automatic input switching modes
CEC and RS-232 control for external device ON/OFF
Advanced EDID management
Flexible control via front panel buttons, IR remote, RS-232, TCP/IP, and Web GUI
Supports standard PoE power supply (TX: PSE, RX: PD)

Technical
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2
DP Version	DP 1.2
Video Bandwidth	18Gbps
USB Bandwidth	TX USB Devices to TX Host/USB-C: 480Mbps RX USB Devices to TX Host/USB-C: 350Mbps RX USB Devices to RX Host: 480Mbps
Network Bandwidth (LAN and USB-C Connection)	100Mbps
Input Video Resolution	480i ~ 1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@50/60Hz 4:4:4
Output Video Resolution	Auto, 3840×2160p60, 3840×2160p50, 4096×2160p60, 4096×2160p50, 3840×2160p30, 3840×2160p25, 1920×1200p60RB, 1920×1080p60, 1920×1080p50, 1360×768p60, 1280×800p60, 1280×720p60, 1280×720p50, 1024×768p60
IR Level	12Vp-p
IR Frequency	Wideband 20K–60KHz
Color Depth	Input: 8/10/12-bit (8-bit at 4K60Hz 4:4:4) Output: 8-bit
Color Space	RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
Audio Formats	LPCM 2.0
Audio Sample Rate	48KHz
Transmission Distance	1080P & 4K30 — 230ft / 70m 4K60 — 131ft / 40m
HDR	Input supports HDR; Output does not support HDR
ESD Protection (Human-body Model)	±8kV (Air-gap discharge), ±4kV (Contact discharge)
TX Analog Audio
Input Impedance	10K Ohms
Output Impedance	330 Ohms
Line Input Level (Maximum)	8.2 dBu (2 Vrms), @ balanced or unbalanced audio
Line Output Level (Maximum)	8.2 dBu (2 Vrms) @ balanced audio 2.2 dBu (1 Vrms) @ unbalanced audio
Frequency Response	(+0.5 dB, -1 dB) 20 Hz to 20 kHz
Audio Output Sync Delay	0 to 50 ms
Audio S/N Ratio	93 dB @ 2Vrms, 1kHz, A-weighted
Audio THD+N	<0.1% @ 0dBV, 1kHz
RX Analog Audio
Output Impedance	330 Ohms
Line Output Level (Maximum)	8.2 dBu (2 Vrms) @ balanced audio 2.2 dBu (1 Vrms) @ unbalanced audio
Frequency Response	(+0.5 dB, -1 dB) 20 Hz to 20 kHz
Audio Output Sync Delay	0 to 50 ms
Audio S/N Ratio	93 dB @ 2Vrms, 1kHz, A-weighted
Audio THD+N	<0.1% @ 0dBV, 1kHz
Dante Audio
Audio Formats	LPCM 2.0

5×1 HDMI/USB-C 4K60 Seamless Presentation Switch with HDBaseT 3.0 70m Out panel drawing

5×1 HDMI/USB-C 4K60 Seamless Presentation Switch with HDBaseT 3.0 70m Out system diagram

5×1 HDMI/USB-C 4K60 Seamless Presentation Switch with HDBaseT 3.0 70m Out applications

Manual~~Installation and operation~~

Spec sheet~~Full specification~~

Sales sheet~~For bid packages~~

What video standards and input resolution does the SW-5X1PS-70M support?

It is HDMI 2.0b, HDCP 2.2, and DP 1.2 compliant with 18Gbps video bandwidth, accepting input resolutions from 480i up to 4K@60Hz 4:4:4.

How far does the HDBaseT output reach, and at what resolutions?

The mirrored HDBT output extends uncompressed 4K60 4:4:4 up to 131ft/40m, or 1080p and 4K30 up to 230ft/70m, over a single CAT6A F/FTP cable.

How do I connect to the switch over RS-232 and check its status?

Connect to the RS-232 port (3-pin Phoenix) via an RS-232-to-USB adapter at 115200 baud, 8 data bits, no parity, 1 stop bit; the same protocol is available over TCP port 8000. Send 'r status' for a full status block or 'r type' to confirm the device model (PS51KVM).

How do I access the Web GUI and what are the login levels?

Get the switch's IP (default 192.168.0.100 when standalone, or via RS-232 command 'r ip addr'), then browse to it or to the domain PS51KVM-75AA.local. The Admin login (admin/admin) has full control of all pages; the User login (user/user) is limited to Preset, Video, and Master Out controls.

How is the SW-5X1PS-70M powered and what are the TX/RX dimensions?

The transmitter is powered by the included DC 24V/8A supply (max 150W) and can power the receiver via PoE 802.3at over HDBaseT (TX_PSE/RX_PD), or the receiver can use its own DC 24V input. The TX measures 8.66 in x 5.91 in x 1.73 in (220 x 150 x 44mm) at 2.67 lbs (1.21kg); the RX measures 5.51 in x

What is included in the box?

The package includes the SW-5X1PS-70M transmitter, an HDBaseT Receiver, an IR Blaster Cable (1.5m), an IR Wideband Receiver Cable (1.5m), 2x 3-pin and 3x 5-pin Phoenix connectors, 4 mounting ears, 8 machine screws, a 24V/8A desktop power supply with AC cord (1.5m), an IR remote, and a user manual.

There is no video at the remote display connected to the HDBaseT receiver. What should I check?

Verify F/FTP shielded CAT6A cable is used with a direct (not crossover) connection, and check the LINK LED on the RX -- if it is off, reseat the cable at both ends. For 4K60 the maximum distance is 40m; set the output to 4K30 or 1080p for runs up to 70m. Avoid unshielded UTP cable or substandard pat

A laptop's USB-C port is not detected, or 60W charging is not working. What should I check?

Confirm the laptop supports DisplayPort Alt mode over USB-C and use a certified cable rated for DP Alt mode -- look for a DP icon next to the port if unsure. For 60W charging, verify the cable supports USB Power Delivery and that the laptop accepts PD charging; some laptops require the PD connection

Why choose the SW-5X1PS-70M for a room with mixed BYOD and legacy sources?

It consolidates 2 USB-C laptop inputs with 3 HDMI inputs into a single 5x1 switch, with seamless single-screen switching and up to 5 multiview layouts, so integrators can cover both BYOD and fixed AV sources without a separate switcher.

What value does the built-in Dante 3x3 audio matrix add for AV integrators?

The 3x3 Dante audio matrix with independent EQ, volume, and delay per output lets integrators route and tune networked audio directly from the switch, avoiding a separate DSP or audio matrix device in smaller conference room designs.
