1080p60 HDMI Extender over Single Cat6/6a - 50M
Reach the Far Display on One Cable Without Paying for 4K - One-Way PoC, Bi-Directional IR, HDMI 1.3

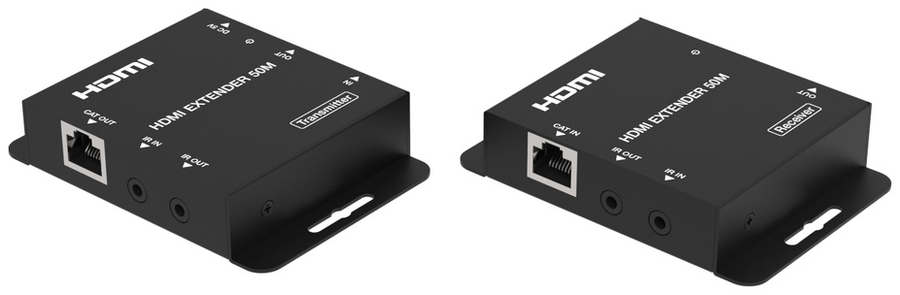

Delivers a full 1080p HDMI signal to a display up to 50m/164ft away over a single Cat6/6a run you already terminate on site. The kit pairs a compact metal transmitter and receiver, each in a black enclosure, and runs from one 5V/1A supply at the source end — one-way PoC powers the receiver over the same cable, so no outlet is needed at the display. Transmission is uncompressed and zero-delay at up to 1080p@60Hz / 1920×1200@60Hz, making HDEXT50M the right choice for classrooms, digital signage, and small-room installs where reach, single-cable simplicity, and source-side control matter more than 4K or HDBaseT bandwidth.
An HDMI loop-out on the transmitter drives a local monitor alongside the extended run, and EDID copy pass-through on both the source and sink ends keeps handshakes clean across mixed displays. Bi-directional IR pass-through (20K–60KHz) lets a remote at the display control a source hidden in the rack — or the reverse — so the equipment stays secured while the room stays operable. Audio passes through to LPCM 7.1, Dolby TrueHD, and DTS-HD Master. Where commodity single-cable units ship in plastic with one-way or no IR, HDEXT50M combines a metal enclosure with stated ESD protection, bi-directional IR, and single-cable one-way PoC in one channel-supported SKU.
- Extends 1080p@60Hz and 1920×1200@60Hz HDMI up to 50m/164ft over a single CAT6/6a cable
- Compliant with HDMI 1.3 and HDCP 1.4
- Video bandwidth of 4.95Gbps
- Uncompressed, zero-delay transmission between source and display
- HDMI loop-out on the transmitter for a local display
- EDID copy pass-through on the source and sink ends
- One-way PoC — the transmitter powers the receiver over the same CAT cable
- Bi-directional IR pass-through, wideband 20K–60KHz
- Audio support for LPCM 7.1, Dolby TrueHD, and DTS-HD Master
- Metal enclosure with ESD protection (IEC 61000-4-2: ±8kV air, ±4kV contact)
| Video | |
| HDMI Compliance | HDMI 1.3 |
| HDCP Compliance | HDCP 1.4 |
| Video Bandwidth | 4.95Gbps |
| Video Resolution | Up to 1080p@60Hz, 1920×1200@60Hz |
| Color Space | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 8-bit |
| Audio | |
| Audio Formats | LPCM 2.0 / 5.1 / 7.1CH, DD, DD+, DTS, Dolby TrueHD, and DTS-HD Master |
| Audio Sample Rate | 48KHz |
| IR | |
| IR Pass-Through | Bi-directional |
| IR Level | 5Vp-p |
| IR Frequency | Wideband 20K–60KHz |
| Signal Handling | |
| EDID | Copy pass-through on source and sink ends |
| PoC | One-way (Transmitter to Receiver) |
| Transmission Distance | 50m/164ft for 1080p@60Hz over CAT6/6a cable |
| Cable Termination | Straight-through UTP (T568B), both ends |
| Connections | |

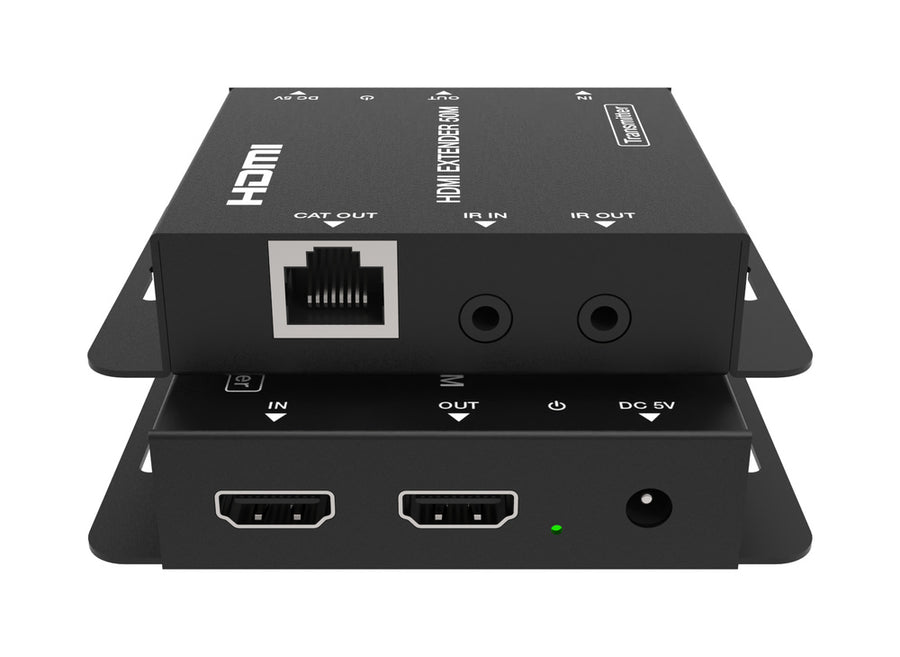

| Transmitter Inputs | 1× HDMI IN [Type A, 19-pin female]; 1× IR IN [3.5mm] |
| Transmitter Outputs | 1× HDMI loop-out [Type A, 19-pin female]; 1× IR OUT [3.5mm]; 1× CAT OUT [RJ45] |

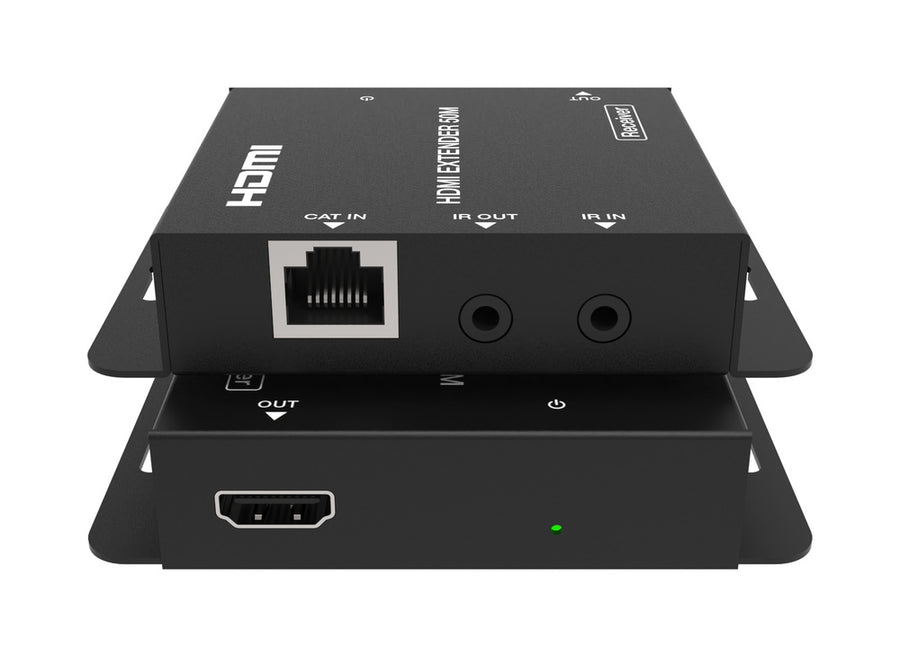

| Receiver Inputs | 1× CAT IN [RJ45]; 1× IR IN [3.5mm] |
| Receiver Outputs | 1× HDMI OUT [Type A, 19-pin female]; 1× IR OUT [3.5mm] |
| Physical | |
| Housing | Metal enclosure |
| Color | Black |
| Dimensions (each unit) | 2.91" × 2.68" × 0.79" (74 × 68 × 20 mm), W × D × H |
| Weight (each unit) | Transmitter: 0.37 lbs (168g); Receiver: 0.36 lbs (165g) |
| ESD Protection | IEC 61000-4-2: ±8kV (air-gap discharge), ±4kV (contact discharge) |
| Power | |
| Power Supply | DC 5V/1A |
| Power Consumption | Transmitter: 1.48W (max); Receiver: 0.73W (max) |
| Environmental | |
| Operating Temperature | 32°F ~ 104°F (0°C ~ 40°C) |
| Storage Temperature | -4°F ~ 140°F (-20°C ~ 60°C) |
| Operating Humidity | 20%~80% RH, non-condensing |
| Storage Humidity | 10%~90% RH, non-condensing |
| Package Contents | |
| Transmitter | 1× 1080p HDMI over CAT Extender (Transmitter) |
| Receiver | 1× 1080p HDMI over CAT Extender (Receiver) |
| IR Blaster Cable | 1× IR Blaster Cable (1.5m) |
| IR Receiver Cable | 1× IR Wideband Receiver Cable (1.5m) |
| Power Supply | 1× 5V/1A multinational power supply |
| Documentation | 1× User Manual |
What is the maximum video bandwidth this extender passes?
What video resolutions does the HDEXT50M support?
How does IR control join the two ends of the link?
What IR signal levels and frequency range does the HDEXT50M work with?
How do I terminate the CAT cable for the HDEXT50M?
What plugs into the transmitter?
The remote display shows no picture. What should I check first?
The receiver has no power and its LED is dark. What is wrong?
The same-looking box is on Amazon for much less — why buy the KanexPro?
Does this do 4K?
