4K 1×2 HDMI Splitter with EDID Selector

4K@30Hz, HDCP, CEC Pass-Through, Deep Color, EDID Copy/Auto Modes

SP-HD1X24KUPC 813982020047

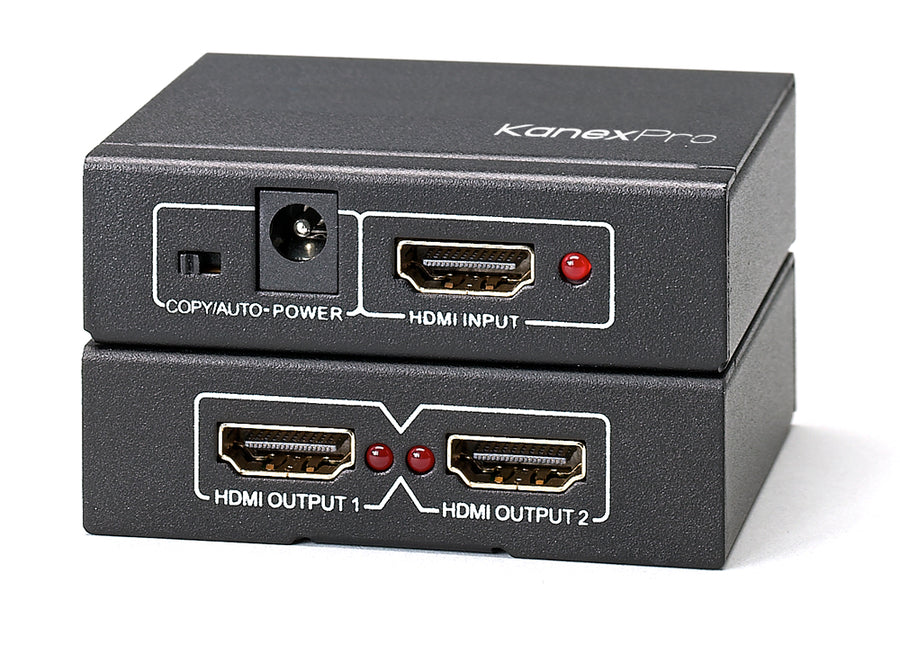

In stock4K 1×2 HDMI Splitter with EDID Selector – KanexPro SP-HD1X24K
Trade pricing and stock
Specifications, drawings and documents stay open to everyone. Net pricing, stock by warehouse and ordering need an approved trade account.
Apply Sign in

Approval is usually same working day.

Overview

Duplicate one HDMI source to two displays without losing signal integrity or resolution. The KanexPro SP-HD1X24K is a 4K@30Hz compliant 1×2 HDMI distribution amplifier that splits a single HDMI input to two simultaneous outputs. Its EDID selector (Copy/Auto modes) ensures reliable resolution negotiation. HDCP and CEC compliant, backward compatible with 1080p/720p devices.

Supports Ultra HD 4K×2K@30Hz, full HD 1080p@60Hz, WUXGA 1920×1200, and all 3D formats. 12-bit per channel (36-bit) Deep Color. Audio pass-through includes 5.1 and 7.1 digital audio plus uncompressed LPCM. Compact metal enclosure powered by USB 5V. Plug and play — no driver installation required.

Key features
  • Distribute high-resolution HDMI signals with audio to 2 Ultra HD displays
  • EDID selector for various signal formats (Copy and Auto modes)
  • Supports full 3D and 4Kx2K resolution
  • Supports full HD 1080p (1920 x 1080@60Hz)
  • Computer resolution up to WUXGA (1920 x 1200@60Hz)
  • Supports 5.1, 7.1 Digital Audio and uncompressed LPCM
  • HDCP and CEC compliant
  • Supports latest HDMI High Speed Specifications
  • 12-bit per channel (36-bit all channel) Deep Color
  • Compact metal enclosure
Signal
Input DDC Signal5 volts p-p (TTL)
Maximum Resolution4K × 2K@30Hz
Output VideoHDMI 1.4 with full HD 1080p, 1920×1200, 720p, 3D and 4K×2K + HDCP
CECPass-through enabled
Video Bandwidth2.97 Gbps
Resolutions (HDTV)Interlaced: 480i, 576i, 1080i. Progressive: 480p, 576p, 720p, 1080p, 4K×2K
Mechanical
Dimensions2.51" × 2.36" × 0.78" (64 × 60 × 20 mm)
Weight300g (0.66 lbs)
Power SupplyDC 5V/1A (USB)
Power Consumption5W (Max)
Operating Temperature0°C – 40°C / 32°F – 104°F
Storage Temperature−20°C – 60°C / −4°F – 140°F
Package Contents
Included1 × HDMI 1×2 Splitter, 1 × 5V USB to DC Power Supply, 1 × User Manual
4K 1×2 HDMI Splitter with EDID Selector panel drawing
4K 1×2 HDMI Splitter with EDID Selector system diagram
4K 1×2 HDMI Splitter with EDID Selector applications
Spec sheetFull specification
Sales sheetFor bid packages
No signal on one or both displays.
1) Verify HDMI cables. 2) Switch EDID mode. 3) Power-cycle. 4) Check source resolution compatibility.
Only one output working.
Check HDMI cable on inactive output. Try swapping outputs. Verify display is powered on.
What audio formats are supported?
5.1 and 7.1 digital audio plus uncompressed LPCM via HDMI pass-through.
What is the maximum resolution?
4K×2K@30Hz. For 4K@60Hz, use the SP-HD1X44K.
Does this support HDR or Dolby Vision?
Not listed in specifications. For HDR/Dolby Vision, use the SP-HD1X44K.
What does the EDID selector do?
Copy mode copies OUT 2 EDID to the input port. Auto mode compares both output EDIDs to negotiate the best common resolution.
Does it need a power supply?
Yes. Included USB to DC 5V cable. Maximum consumption is 5W.
Can outputs show different resolutions?
No. Both outputs mirror the same resolution (lowest common denominator).
Is this HDCP 2.2 compliant?
No. HDCP 1.x only. Content requiring HDCP 2.2 may not pass through.
Does CEC pass-through work?
Yes. CEC signals pass through to enable single-remote control of connected displays.
