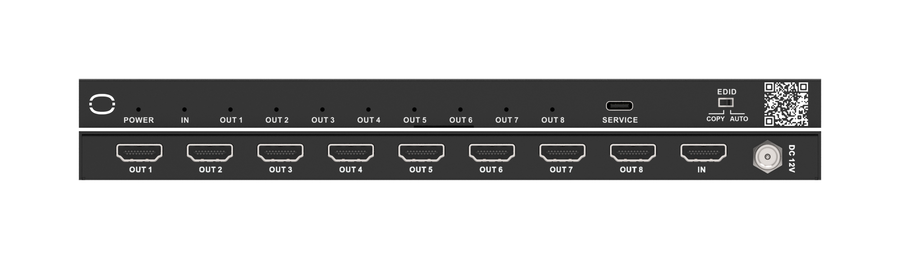

1×8 HDMI Splitter with Independent 4K to 1080p Downscaling
Drive Eight Mixed-Resolution Displays From One 4K60 Source Without Collapsing to the Weakest Screen - 18Gbps 4:4:4, HDCP 2.2, EDID COPY/AUTO
Drives eight mixed-resolution HDMI displays from a single 4K60 source without collapsing the whole array to the weakest screen. The SP-HDMI1X8-18G is a 1×8 HDMI 2.0 distribution splitter that passes the full 18Gbps 4:4:4 signal to all eight outputs and independently downscales 4K to 1080p on any port that needs it, so new 4K panels and legacy 1080p screens run natively off one feed. It ships in a black metal enclosure with an external 12V locking power supply and draws just 6.4W, making it the right choice for signage, hospitality, and corporate distribution where reliable mixed-resolution delivery and install-grade build matter more than 8K bandwidth or matrix switching.
A COPY/AUTO EDID dial resolves the mixed-wall problem at the source: COPY passes the EDID of the display on HDMI OUT 1 to the source, so put a 4K display on OUT 1 to keep a 4K signal, and each output then serves its connected screen, while AUTO reports the best common EDID so every display accepts the signal. Full HDR10, HDR10+, Dolby Vision, and HLG pass-through keeps signage color and small type clean, and CEC on HDMI OUT 1 lets the anchor display power-sequence with the source. Its strongest differentiator is genuine per-output 4K-to-1080p downscaling with full-chroma 18Gbps HDR pass-through in a metal chassis with a locking multinational supply — the pro-install combination that commodity USB-powered splitters skip and premium distribution amplifiers charge several times more to match.
- HDCP 2.2 compliant
- Video resolution up to 4K@60Hz 4:4:4, as specified in HDMI 2.0
- Audio formats up to PCM 2CH, LPCM 7.1/5.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, and DTS:X
- HDR, HDR10, HDR10+, Dolby Vision, and HLG pass-through
- Resolution downscaling from 4K to 1080p on each output
- CEC support on the HDMI OUT 1 port
- EDID management with COPY and AUTO modes
- Compact metal enclosure for easy and flexible installation
Transcript

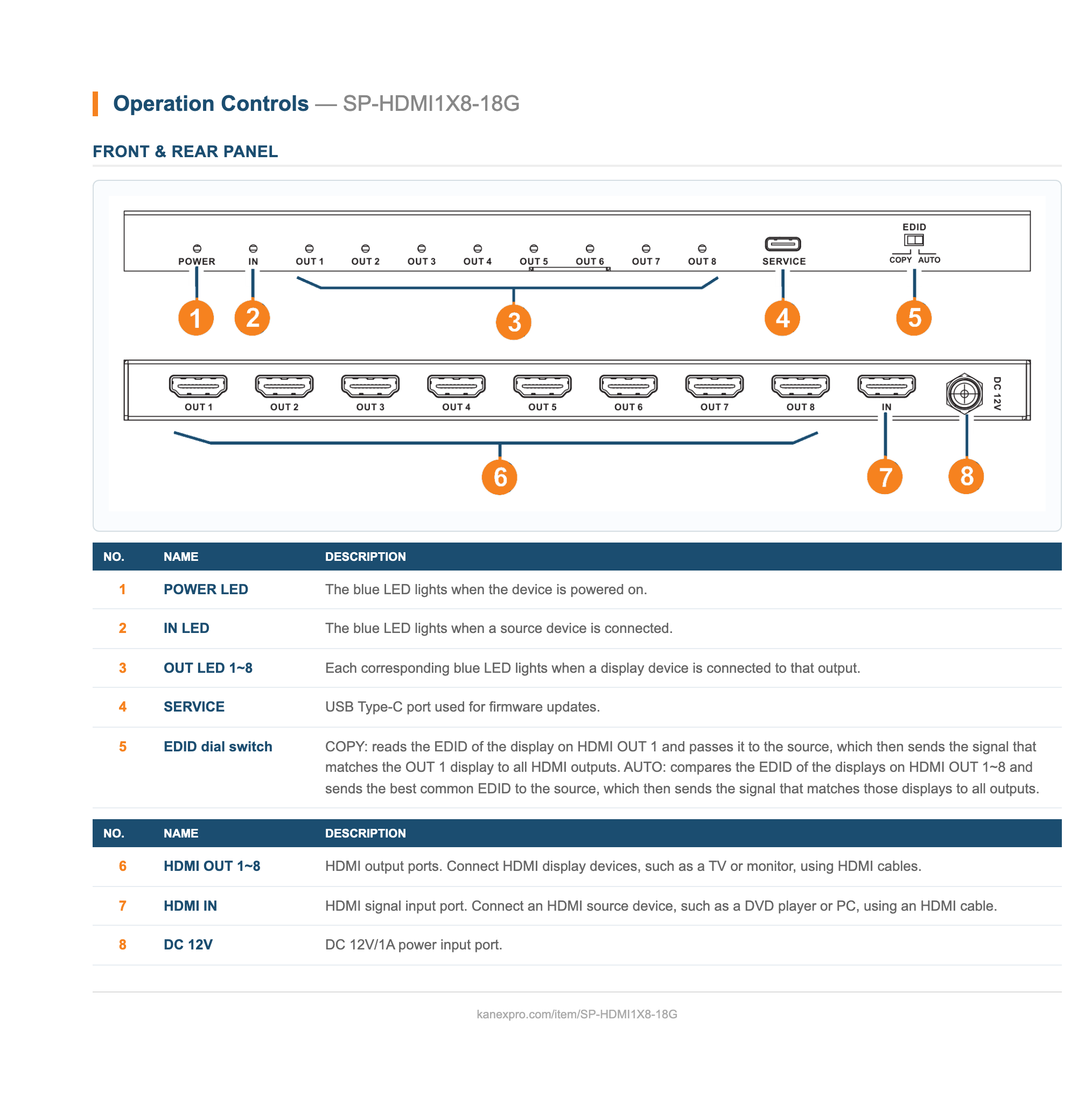

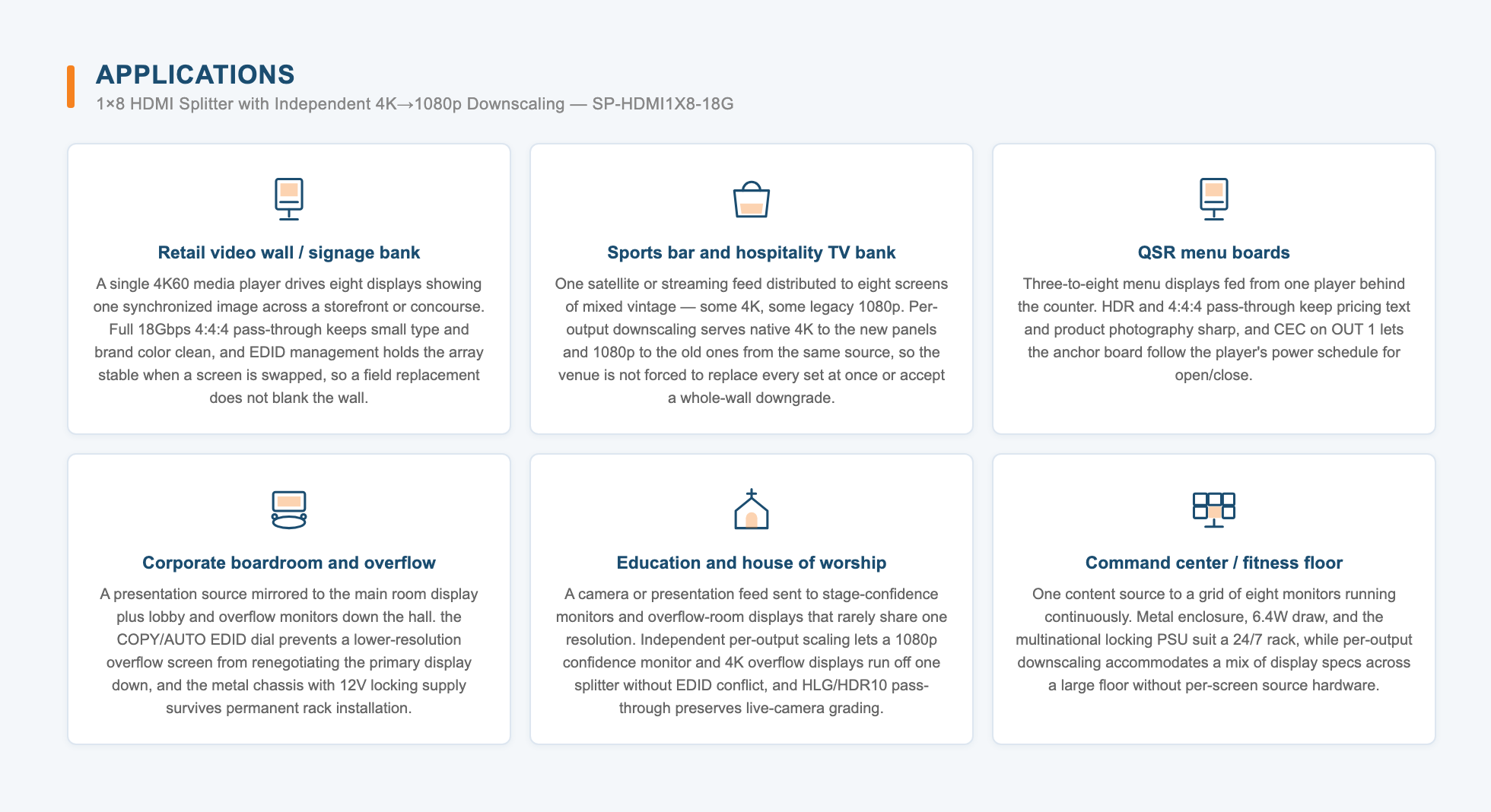

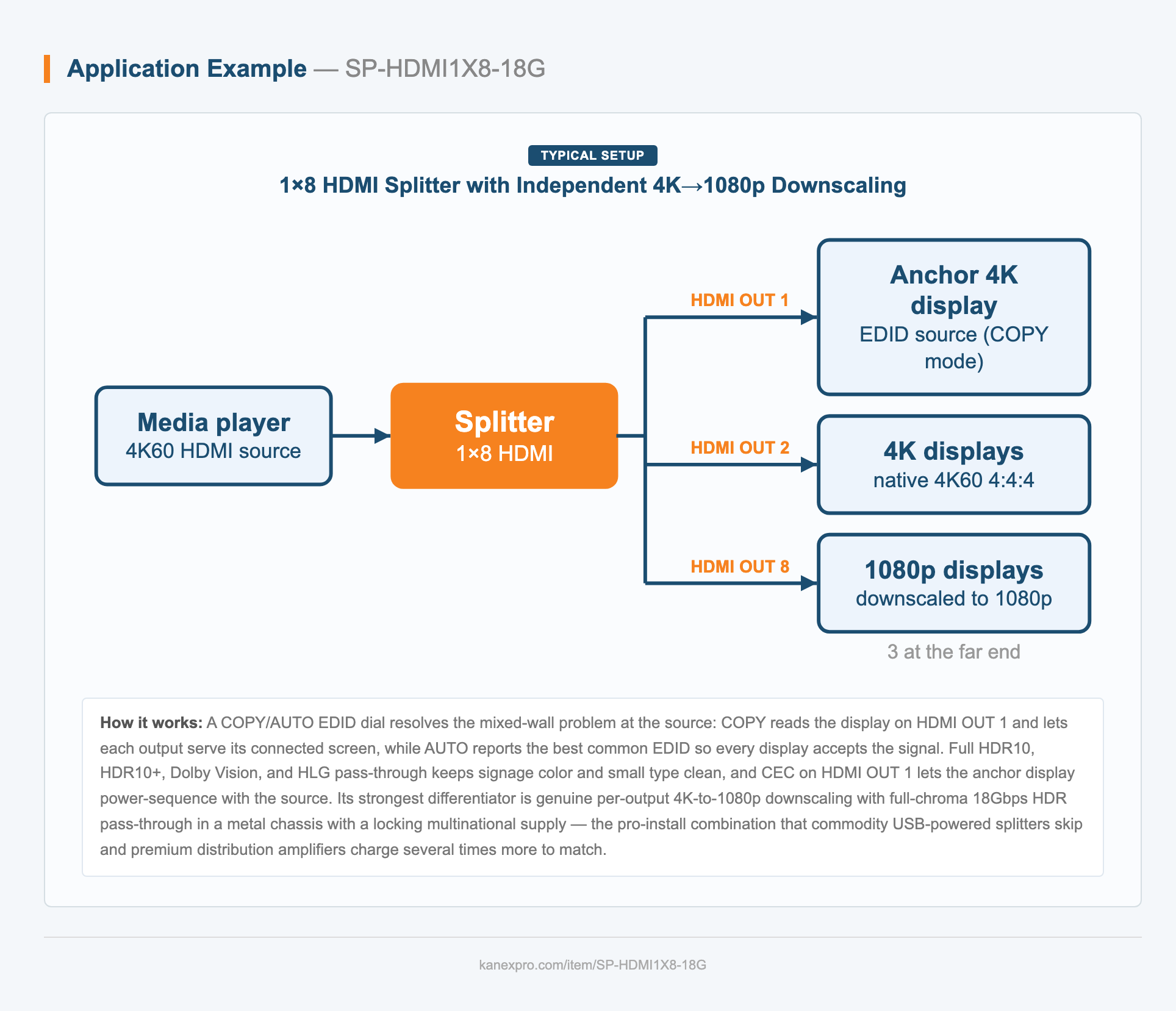

Hi, I'm Eric from KanexPro. This is our one by eight HDMI splitter: one 4K60 source, on eight screens at once. In COPY mode each output scales for its own screen: 4K stays 4K, 1080p gets 1080p. An EDID dial picks COPY or AUTO, and a locking 12 volt supply powers it. Here's how it connects. A Blu-ray player or a PC goes into HDMI IN. Up to eight displays go on the outputs, a 4K display on OUT 1. In COPY mode the 4K displays get 4K, and the 1080p displays get 1080p. AUTO sends the one format all of them accept. And a 12 volt supply powers it. One picture on many screens, old and new. Sports bars: the same game on new 4K and older 1080p TVs. Conference halls: the slides on every screen in the hall. Courtrooms: the same exhibit at bench, jury and gallery. Studio sets: one feed on the backdrop and every side monitor. Now, the key features. Per-output scaling: 4K screens stay 4K, and 1080p screens get 1080p. 4K60 at 4:4:4, on the full 18 gigabits, with HDCP 2.2. HDR10, HDR10+, Dolby Vision and HLG pass straight through. So does audio, up to Dolby Atmos and DTS:X. Premium cables run 8 meters at 4K60, or 15 meters at 1080p. For integrators: CEC on output one, the EDID dial, and USB-C for firmware. Spec it wherever one source feeds a mix of 4K and 1080p screens. Thanks for watching. I'm Eric from KanexPro. See you next time.
| Video / HDMI | |
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 8-bit, 10-bit, 12-bit |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Video Resolution (Input & Output) | 480i to 1080p50/60Hz, 4K×2K@24/30Hz, 4K×2K@60Hz |
| Downscaling | Per-output 4K to 1080p |
| Audio | |
| Audio Formats | PCM 2CH, LPCM 7.1/5.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| Connections | |
| Input | 1× HDMI IN (Type A, 19-pin female) |
| Output | 8× HDMI OUT (Type A, 19-pin female) |
| Control | 1× SERVICE (USB Type-C firmware update port) |
| Power | |
| Power Supply | Input: AC 100–240V, 50/60Hz; Output: DC 12V/1A |
| Power Consumption | 6.4W (max) |
| Physical | |
| Housing | Metal enclosure, black |
| Dimensions (unit) | 9.53 × 4.02 × 0.63 in (242 × 102 × 16 mm) |
| Weight (unit, net) | 1.30 lbs (588 g) |
| Environmental | |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Operating Humidity | 20% to 80% RH, non-condensing |
| Storage Humidity | 10% to 90% RH, non-condensing |
| ESD Protection | IEC 61000-4-2: ±8kV air-gap, ±4kV contact |
| HDMI Cable Length (IN / OUT) | 8m / 26ft at 4K60 | 15m / 49ft at 1080p (Premium High Speed HDMI cable recommended) |
| Certifications | |
| Certifications | Unit: CE, FCC, RoHS (marked on the unit) | Power supply: CE, FCC, UL |
| Package Contents | |
| Included | 1× 4K60 1×8 HDMI Splitter |
| Included | 1× 12V/1A multinational locking power supply |
How much power does it draw?
What audio formats will it pass through?
Can it pass CEC so a display can control the source?
Does the SP-HDMI1X8-18G support RS-232 or IP control?
How compact is the unit for mounting?
How is the unit powered?
A 4K source is only showing 1080p on every screen.
Nothing appears on any of the connected displays. What should I check?
Does it pass HDR and full 4:4:4 color?
How do I handle a mix of 4K and 1080p displays?
