4K60 4:4:4 1×4 HDMI Distribution Amplifier with EDID Management

Distribute One HDMI Source to Four Identical Displays Without a Handshake Break - HDCP 2.3, HDR10+/Dolby Vision, STD/TV EDID

SP-HDMI1X4-18GUPC 813982023000

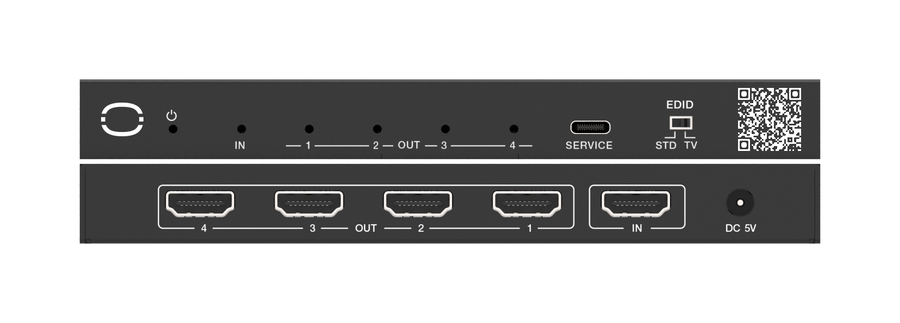

4K60 4:4:4 1×4 HDMI Distribution Amplifier with EDID Management – KanexPro SP-HDMI1X4-18G
Trade pricing and stock
Specifications, drawings and documents stay open to everyone. Net pricing, stock by warehouse and ordering need an approved trade account.
Apply Sign in

Approval is usually same working day.

Overview

Distributes one 4K60 HDMI source to four identical displays at the full 18Gbps — 4K60 4:4:4 with HDR intact on every screen. Housed in a compact black metal enclosure and driven from a single 5V/1A supply, this 1×4 distribution amplifier carries the full 18Gbps signal to all four outputs at once, mirroring one source across a group of panels. It is the right choice for digital signage, conference rooms and multi-display zones where a predictable handshake and full-color 4K integrity matter more than the scaling and audio-breakout carried by premium matrix hardware.

The unit passes 4K60 4:4:4 at 8, 10 or 12-bit color with HDR10, HDR10+, Dolby Vision and HLG to every output, and carries audio up to 7.1CH including LPCM, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio. HDCP 2.3, 2.2 and 1.4 compliance clears protected content from streaming and disc sources to compliant displays, while a front-panel EDID dial sets the whole group in one move — TV copies the EDID of the OUT 1 display to all four outputs, and STD holds a safe 1080p60 two-channel default when the displays differ. A USB Type-C service port keeps firmware current. Purpose-built as a mirror rather than a scaler, it delivers top-tier HDCP 2.3 distribution without the premium of features a mirror job never uses.

Key features
  • Distributes one HDMI input to four HDMI outputs simultaneously, mirroring a single source to four displays
  • HDMI 2.0b with 18Gbps bandwidth for full 4K2K@60Hz YCbCr 4:4:4 to every output
  • HDCP 2.3, 2.2 and 1.4 compliant, plus DVI 1.0
  • Supports 8-bit, 10-bit and 12-bit color depth across RGB, YCbCr 4:4:4, 4:2:2 and 4:2:0
  • HDR passthrough: HDR10, HDR10+, Dolby Vision and HLG
  • Audio passthrough up to 7.1CH, including LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD Master Audio and DSD
  • EDID management via a front-panel dial: STD sets all outputs to a safe 1080p60 two-channel default; TV copies the OUT 1 display's EDID to all four outputs, falling back to 1080p60 if none is detected
  • USB Type-C service port for firmware updates
  • Front-panel LEDs for power, source connection and each of the four output connections
  • Engineered to industry standards to prevent cross-talk and minimize signal attenuation across outputs
  • Compact black metal enclosure for flexible installation on a shelf, in a rack or behind millwork
HDMI & Video
HDMI ComplianceHDMI 2.0b
HDCP ComplianceHDCP 2.3 / 2.2 / 1.4
DVI ComplianceDVI 1.0
Video Bandwidth18Gbps
Color SpaceRGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth8-bit, 10-bit, 12-bit
HDRHDR10, HDR10+, Dolby Vision, HLG
Max Resolution4096×2160p60; 3840×2160p (23.98–30Hz); 1080p (23.98–60Hz); 1080i; 720p; VESA 640×480 to 1600×1200p60
Audio
ChannelsUp to 7.1CH
FormatsLPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
3D AudioSupported
Connections
Input1× HDMI IN (Type A, 19-pin female)
Output4× HDMI OUT (Type A, 19-pin female)
Control1× Service port (USB Type-C, firmware update)
EDID Management
ControlFront-panel EDID dial switch
STD ModeAll outputs run 1080p60, 2-channel audio
TV ModeCopies OUT 1 display EDID to all outputs; falls back to 1080p60 if none detected
Recommended HDMI Cable Length
4K6026 ft (8 m)
1080p49 ft (15 m)
Power
Power SupplyDC 5V / 1A
Power Consumption3W (max)
Physical
HousingMetal enclosure, black
Dimensions (W × D × H)6.42" × 2.48" × 0.63" (163 × 63 × 16 mm)
Weight (net)0.58 lbs (264 g)
Environmental
ESD ProtectionIEC 61000-4-2: ±8kV air discharge, ±4kV contact discharge
Operating Temperature32°F to 104°F (0°C to 40°C)
Storage Temperature-4°F to 140°F (-20°C to 60°C)
Operating Humidity20% to 80% RH, non-condensing
Storage Humidity10% to 90% RH, non-condensing
Certifications
ComplianceCE, FCC, RoHS
Package Contents
Included1× 4K60 1×4 HDMI Splitter
Included1× 5V/1A power supply

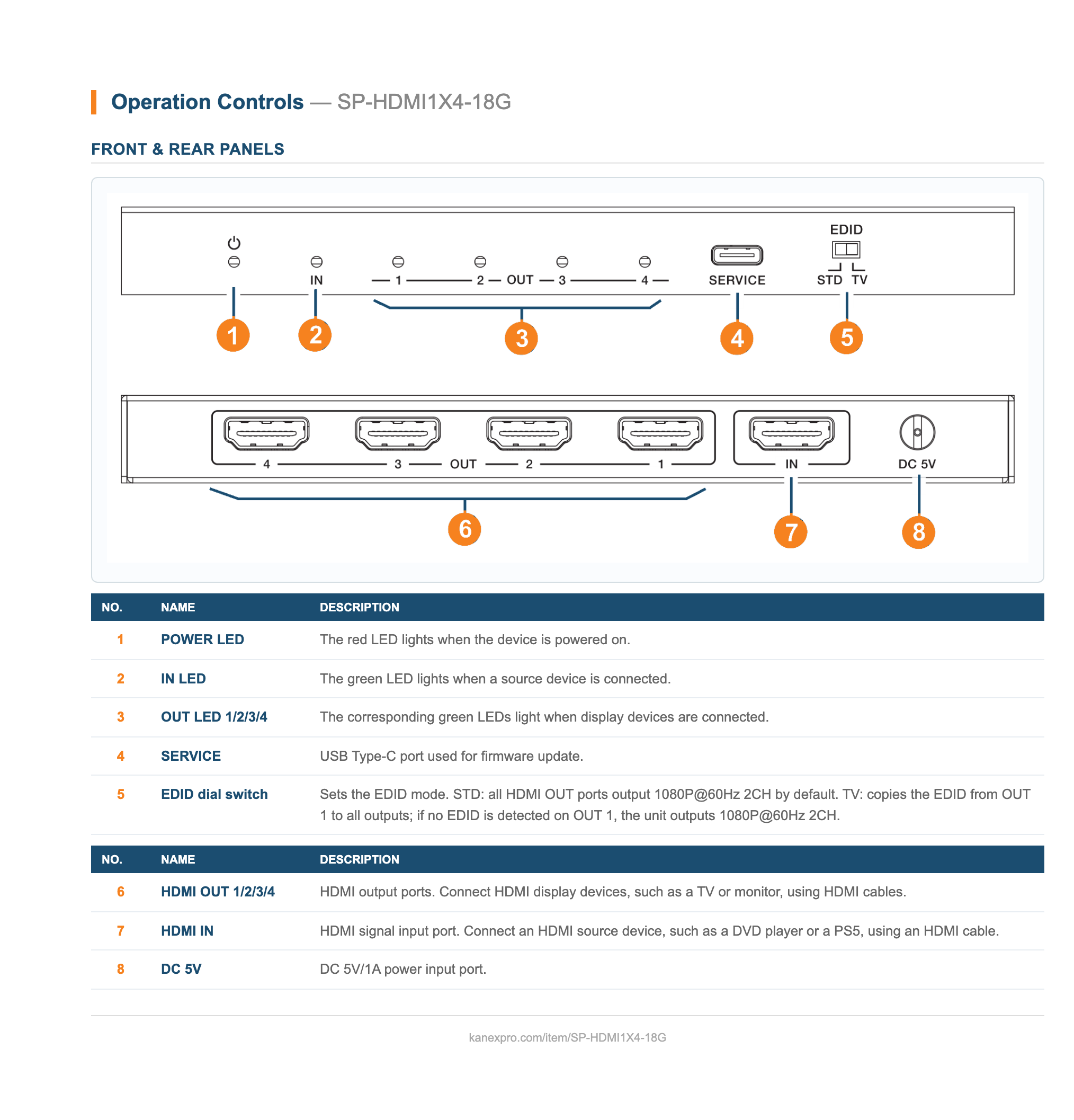

4K60 4:4:4 1×4 HDMI Distribution Amplifier with EDID Management panel drawing

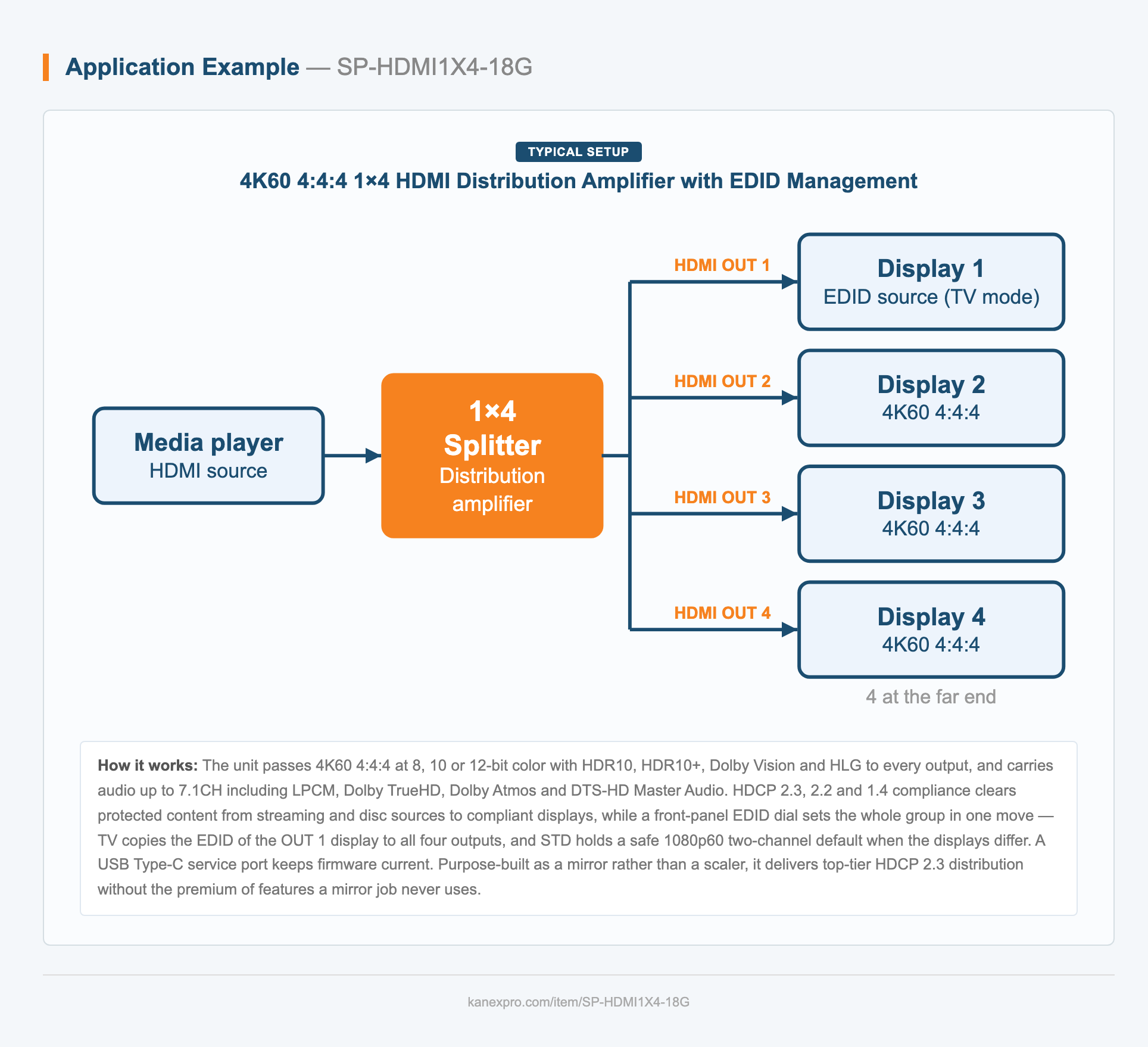

4K60 4:4:4 1×4 HDMI Distribution Amplifier with EDID Management system diagram

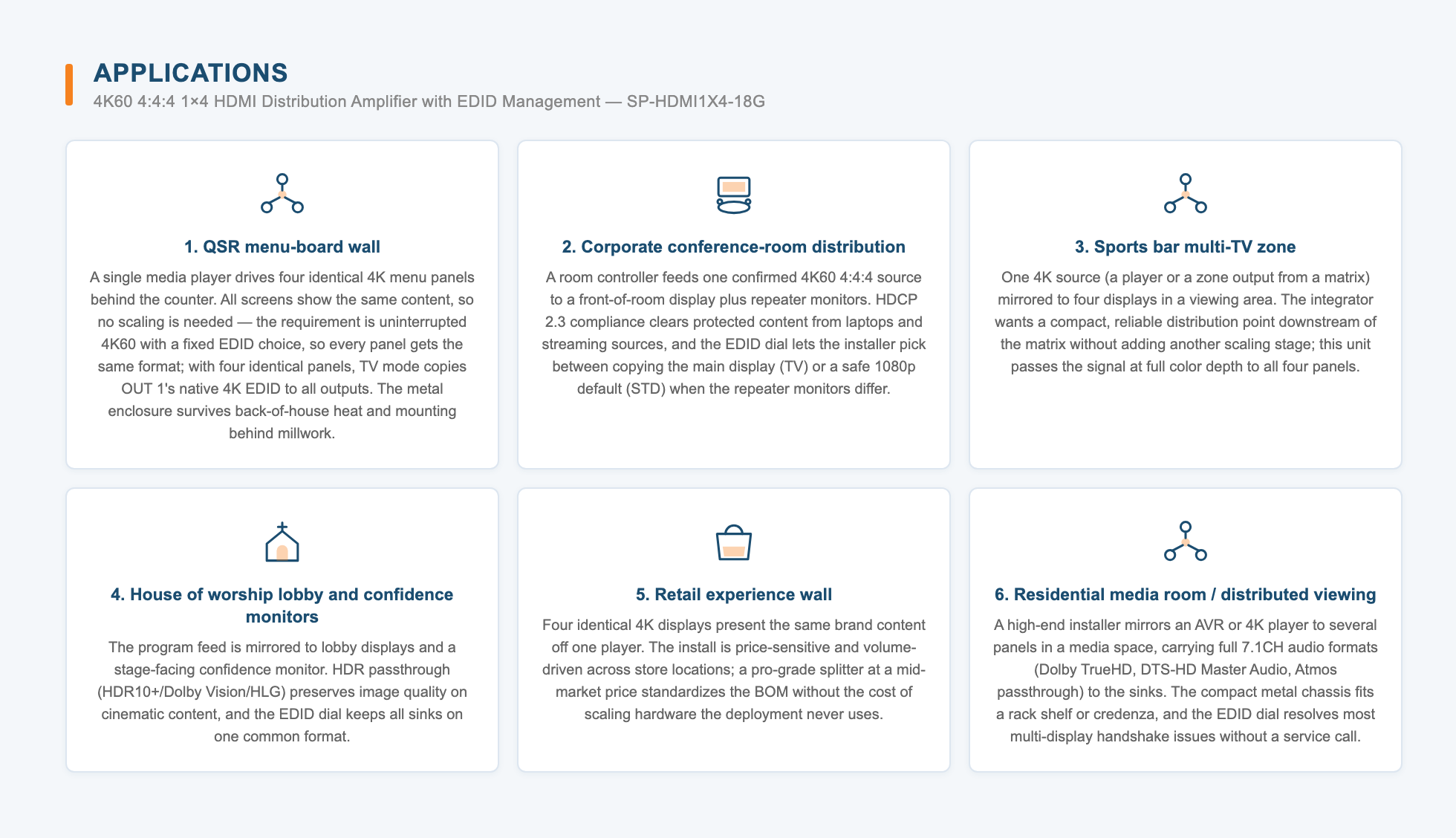

4K60 4:4:4 1×4 HDMI Distribution Amplifier with EDID Management applications
ManualInstallation and operation
Spec sheetFull specification
Sales sheetFor bid packages
What is the maximum HDMI cable length at each resolution?
At 4K60 the recommended maximum HDMI cable length is 26 ft (8 m); at 1080p it is 49 ft (15 m). KanexPro recommends a Premium High Speed HDMI cable.
What color depths and color spaces does it pass?
It passes 8-bit, 10-bit and 12-bit color depth across RGB, YCbCr 4:4:4, YCbCr 4:2:2 and YCbCr 4:2:0.
Does the SP-HDMI1X4-18G need a control system or an RS-232/IP controller?
No. It carries no RS-232, Telnet or network control; the only setting control is the front-panel EDID dial switch, and the USB Type-C SERVICE port is for firmware updates only.
What sources and displays does it sit between?
It takes one HDMI source, such as a DVD or Blu-ray player or a PS5, and feeds four separate displays (for example TV 1 through TV 4) at the same time.
How is the SP-HDMI1X4-18G powered?
Use the included DC 5V/1A power supply into the DC 5V input port on the rear; the unit draws 3W maximum.
What connects to each port?
Connect the HDMI source, such as a Blu-ray player or PS5, to HDMI IN, and connect up to four displays to HDMI OUT 1 through 4 using HDMI cables.
The unit shows no sign of power. What do I check?
The red POWER LED lights when the device is powered on; if it stays dark, confirm the included DC 5V/1A supply is connected to the DC 5V input port.
One display is blank while the others work. Where do I start?
Each HDMI OUT has a green LED that lights when a display is connected, so check that output's LED and its HDMI cable; at 4K60 keep the cable within 26 ft (8 m).
Does this splitter downscale, so I can mix a 4K display with 1080p ones?
No. SP-HDMI1X4-18G is a straight 1-to-4 mirror: every output carries the same signal. For mixed-resolution displays that need per-output downscaling, the SP-HD1X48K (8K 1x4 with auto downscaling) is the right choice. If the mix is only for compatibility, set the EDID dial to STD and all four outputs
Will it keep 4K60 with full color and HDR on all four outputs?
Yes. The unit runs at 18Gbps and passes 4K60 4:4:4 at 8, 10 or 12-bit with HDR10, HDR10+, Dolby Vision and HLG to all four outputs at once.
