4×4 HDMI Matrix Switcher with Independent 4K Downscaling & HDR Support

Name: 4×4 HDMI Matrix Switcher with Independent 4K Downscaling & HDR Support
Brand: KanexPro
SKU: SW-HDMX44DS

Mixed-Resolution Multi-Display Routing with RS-232 and Smart EDID Management

SW-HDMX44DSUPC 813982022812

Discontinued. KanexPro no longer makes this part; remaining stock is sold while it lasts.

In stock

4×4 HDMI Matrix Switcher with Independent 4K Downscaling & HDR Support – KanexPro SW-HDMX44DS

4×4 HDMI Matrix Switcher with Independent 4K Downscaling & HDR Support – KanexPro SW-HDMX44DS, view 2

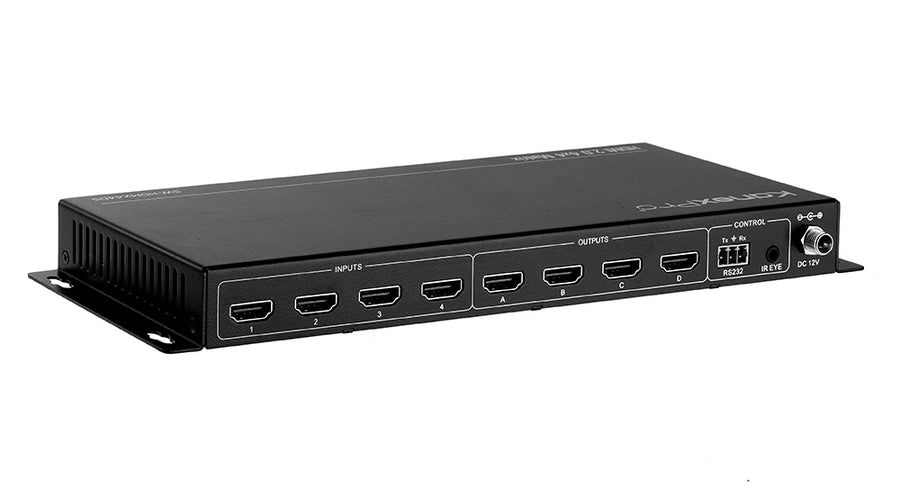

4×4 HDMI Matrix Switcher with Independent 4K Downscaling & HDR Support – KanexPro SW-HDMX44DS, view 3

Trade pricing and stock

Specifications, drawings and documents stay open to everyone. Net pricing, stock by warehouse and ordering need an approved trade account.

Apply Sign in

Approval is usually same working day.

Overview

Most 4×4 HDMI matrix installations require separate scalers when mixing 4K and 1080p displays — adding cost and configuration overhead to every output. The KanexPro SW-HDMX44DS eliminates that with per-output independent 4K?1080p downscaling built into every channel, letting integrators route any of four 18Gbps HDMI sources to any of four displays — 4K and 1080p simultaneously — without additional hardware.

Supporting resolutions up to 4K@60Hz 4:4:4 with HDR10 and Dolby Vision pass-through, the SW-HDMX44DS handles today's most demanding source formats across all four outputs. Smart EDID management with 13 factory presets, user-defined modes, and copy-from-output capability resolves handshake issues in mixed environments. Control is via front panel buttons, IR remote, or RS-232 — making it well-suited for corporate AV rooms, classrooms, and hospitality environments.

Key features

Supports resolutions up to 4K@60Hz 4:4:4, HDR10, Dolby Vision, including 1080p 3D
Fully compliant with HDMI 2.0 and HDCP 2.2 specifications
Independent 4K→1080p downscaler on each output — supports mixed 4K and 1080p display environments simultaneously
Smart EDID management with 13 factory presets, user-defined EDID, and copy-from-output modes
Control via front panel buttons, IR remote, and RS-232 (9600 baud, 3-pin terminal block)
10 preset memories (Save/Recall/Clear) for one-touch routing recall
Per-output HDMI digital audio enable/disable via RS-232 command
HDCP management per output — bypass or force HDCP 1.4

Specification
Technical
HDMI Compliance	HDMI 2.0
HDCP Compliance	HDCP 2.2
Video Bandwidth	18 Gbps
Video Resolution	Up to 4K@60Hz 4:4:4, HDR10, Dolby Vision, 1080p 3D
HDMI Audio	PCM, Dolby Digital, DTS
Connection
Input	4× HDMI Type A [19-pin female]
Output	4× HDMI Type A [19-pin female]
Control	1× RS-232 [3-pin terminal block] • 1× IR EYE [3.5mm]
Mechanical
Housing	Metal Enclosure, Black
Dimensions	9.61″ × 1.00″ × 3.94″ (244 × 25.5 × 100mm)
Net Weight	1.41 lbs (640g)
Power Supply	DC 12V/2A (AC 100–240V 50/60Hz)
Power Consumption	12W max
Operating Temp	23°F–131°F (−5°C–+55°C)
Storage Temp	−13°F–+158°F (−25°C–+70°C)
Relative Humidity	10–90% RH (non-condensing)
Package Contents
1×	SW-HDMX44DS Matrix Switcher
4×	Round Plastic Feet
1×	RS-232 Cable (3-pin to DB9)
1×	IR Receiver
1×	IR Remote
1×	Power Adapter (12VDC/2A)
1×	User Manual

4×4 HDMI Matrix Switcher with Independent 4K Downscaling & HDR Support panel drawing

4×4 HDMI Matrix Switcher with Independent 4K Downscaling & HDR Support system diagram

4×4 HDMI Matrix Switcher with Independent 4K Downscaling & HDR Support applications

Manual~~Installation and operation~~

Spec sheet~~Full specification~~

Sales sheet~~For bid packages~~

What is included in the box?

The package includes the SW-HDMX44DS matrix switcher, 4 round plastic feet, an RS-232 cable (3-pin to DB9), an IR receiver, an IR remote, a 12VDC/2A power adapter, and a user manual.

What is the maximum resolution and HDMI/HDCP compliance of the SW-HDMX44DS?

The SW-HDMX44DS is HDMI 2.0 and HDCP 2.2 compliant, supporting resolutions up to 4K@60Hz 4:4:4 at 18Gbps video bandwidth, including HDR10, Dolby Vision, and 1080p 3D.

What audio formats pass through the HDMI outputs?

HDMI audio pass-through supports PCM, Dolby Digital, and DTS. The unit does not provide separate analog or coaxial audio de-embedding outputs; audio stays embedded in the HDMI signal.

What control methods does the SW-HDMX44DS support?

It can be controlled from the front panel buttons, the included IR remote, or RS-232 over a 3-pin terminal block at 9600 baud.

How do I save and recall a routing configuration over RS-232?

Send the RS-232 command Save[y] (y = 0-9) to store the current input/output routing to one of 10 preset memories, and Recall[y] to restore that routing.

What are the physical dimensions and weight for rack or shelf placement?

The unit measures 9.61 in (W) x 1.00 in (D) x 3.94 in (H) (244mm x 25.5mm x 100mm) and weighs 1.41 lbs (640g). It ships with round plastic feet rather than rack ears, for desktop or shelf mounting.

An output shows no video. What should I check?

Enable the 4K-to-1080p downscaler for any output connected to a 1080p display, verify the EDID preset matches the connected display, and confirm Premium High Speed HDMI cables are in use.

RS-232 control is not responding. What should I check?

Confirm the serial settings are 9600 baud, 8 data bits, 1 stop bit, no parity, that commands are terminated with a carriage return, and that the 3-pin terminal block wiring to the DB9 cable is correct.

What deployment scenarios suit the SW-HDMX44DS?

It fits compact professional installations needing 4x4 HDMI routing with per-output downscaling, such as huddle rooms or classrooms mixing a 4K display with legacy 1080p displays from the same set of sources.

Why does the per-output downscaler matter for integrators?

It lets an integrator route a single 4K source to a mixed fleet of 4K and 1080p displays simultaneously without adding external scalers, simplifying rooms with legacy displays.
