4K60 4:4:4 JPEG2000 AV over IP Decoder

Name: 4K60 4:4:4 JPEG2000 AV over IP Decoder
Brand: KanexPro
SKU: AVO-IPJP2KS-DEC

Terminate Visually Lossless 4K to Any Display over Standard 1G — IR, RS-232 & CEC over IP, PoE-Powered, 9x9 Video Wall

AVO-IPJP2KS-DECUPC 813982021440

4K60 4:4:4 JPEG2000 AV over IP Decoder – KanexPro AVO-IPJP2KS-DEC

Trade pricing and stock

Specifications, drawings and documents stay open to everyone. Net pricing, stock by warehouse and ordering need an approved trade account.

Apply Sign in

Approval is usually same working day.

Overview

Terminates one JPEG2000 stream from your 1-gigabit network into visually lossless 4K60 4:4:4 at the display, using the copper switching the site already has. Housed in a rack-mountable metal enclosure and powered over PoE (802.3af) straight from the switch, it drives one display as a point-to-point endpoint, as a node in a networked matrix, or as a cell in a video wall up to 9x9. It is the right choice for education, house of worship, control rooms, signage and residential video distribution, where visually lossless fidelity and reach over existing 1G infrastructure matter more than a 10GbE fabric upgrade.

Any display can be reassigned to any source across the shared 1G fabric using unicast or multicast, and IR, RS-232 and CEC pass over IP so head-end control of display power and input travels with the stream. Full HDMI 2.0b at 18Gbps carries HDR10, Dolby Vision and HLG with LPCM 7.1, Dolby and DTS-HD audio, a built-in MJPEG substream lets a control app preview each endpoint remotely, and Dante AV-A is available by license activation. As the entry, single-LAN copper decoder in the KanexPro JPEG2000 family, it is the endpoint you order one of per screen and scale by the display, stepping up to the fiber or Dante dual-LAN siblings only where a specific screen needs it. Matching encoder sold separately.

Key features

HDCP 2.2 compliant
Supports 18Gbps video bandwidth
Input and output video resolution up to 4K60 4:4:4, as specified in HDMI 2.0b
Supports HDR10, Dolby Vision and HLG
Signal transmission distance up to 328ft / 100m via CAT6/6A/7 cable
Transmits video, analog audio, IR, RS-232 and CEC over Ethernet
HDMI audio formats support LPCM 7.1ch, Dolby Digital/Plus/EX, Dolby TrueHD and DTS-HD Master Audio
Dante AV-A mode supported when the license is activated
Supports unicast and multicast functions
Supports point-to-point, video matrix and video wall functions (video wall up to 9x9)
Intelligent video wall class management
Supports MJPEG substream real-time preview
Operates on a 1G Ethernet switch
Supports PoE (802.3af PD devices)
Flexible control via Web GUI, TCP, RS-232, IR, APP and third-party central control
Smart networking design for easy and flexible installation

Video
HDCP compliance	HDCP 2.2
HDMI compliance	HDMI 2.0b
Video bandwidth	18Gbps
Video resolution	Up to 4K60 4:4:4
Color space	RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Color depth	Input: 8/10/12-bit (1080p60); Output: 8-bit
HDR	HDR10, Dolby Vision, HLG
Compression standard	JPEG2000
Audio
HDMI audio	LPCM 2.0/5.1/7.1, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-96/24, DTS-EX, DSD, DTS High Res, DTS-HD Master
Analog audio	LPCM 2.0, 192kHz
Network & Transmission
Video network bandwidth	1G Ethernet
Transmission distance	328ft (100m) over CAT6/6A/7
Topologies	Unicast and multicast; point-to-point, matrix, video wall up to 9x9
Substream	MJPEG real-time preview
Dante	Dante AV-A mode (license-activated)
Connections (Decoder)
HDMI output	1 x HDMI OUT (Type A, 19-pin female)
Analog audio output	1 x L/R Audio OUT (3-pin 3.81mm Phoenix)
RS-232	1 x RS-232 (3-pin 3.81mm Phoenix)
LAN	1 x LAN (PoE) RJ45
IR	1 x IR IN, 1 x IR OUT (3.5mm, 5V/12V)
IR
IR level	12V default, 5V optional
IR frequency	Wideband 20 - 60kHz
Power
Power supply	Input: AC 100-240V 50/60Hz; Output: DC 12V/2.5A
PoE	802.3af PD
Power consumption	6.36W (max)
Power adapter certifications	CE, FCC, UL
Environmental
Operating temperature	14°F to 113°F (-10°C to 45°C)
Storage temperature	-4°F to 140°F (-20°C to 60°C)
Relative humidity	20 - 90% RH, non-condensing
ESD protection	IEC 61000-4-2: ±15KV air-gap, ±8KV contact
Physical
Dimensions	8.03" x 5.35" x 1.00" (204 x 136 x 25.5mm)
Weight	1.34 lbs (609g)
Housing	Metal enclosure
Color	Black
Package Contents
1	4K60 over IP 1GbE Decoder
1	IR Receiver cable (1.5 meters)
1	IR Blaster cable (1.5 meters)
3	3-pin 3.81mm Phoenix connector
1	12V/2.5A locking power adapter (optional)
1	User manual
2	Mounting ear
4	Machine screw (KM3*4)

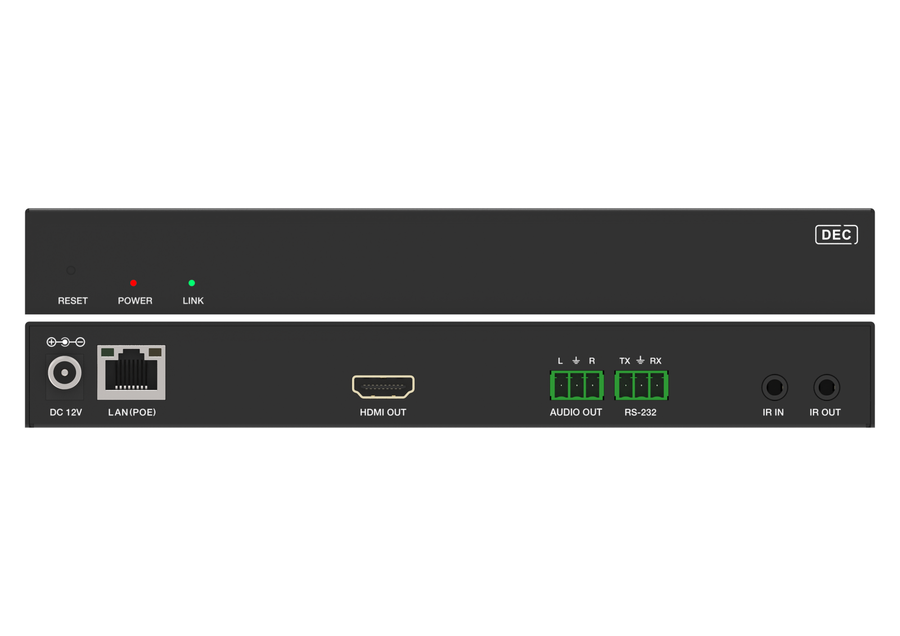

4K60 4:4:4 JPEG2000 AV over IP Decoder panel drawing

4K60 4:4:4 JPEG2000 AV over IP Decoder system diagram

4K60 4:4:4 JPEG2000 AV over IP Decoder applications

Manual~~Installation and operation~~

Spec sheet~~Full specification~~

Sales sheet~~For bid packages~~

What is the maximum video resolution the AVO-IPJP2KS-DEC outputs?

The AVO-IPJP2KS-DEC outputs up to 4K60 4:4:4, per HDMI 2.0b, with 18Gbps video bandwidth. Output color depth is 8-bit.

Which HDMI audio formats pass through the AVO-IPJP2KS-DEC?

The AVO-IPJP2KS-DEC supports LPCM 2.0/5.1/7.1, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-96/24, DTS-EX, DSD, DTS High Res and DTS-HD Master. Its analog L/R output carries LPCM 2.0 at 192kHz.

How is the AVO-IPJP2KS-DEC controlled in a system?

The AVO-IPJP2KS-DEC supports control via Web GUI, TCP, RS-232, IR, APP and third-party central control. It transmits IR, RS-232 and CEC over the Ethernet link alongside video and audio.

What manages a system of AVO-IPJP2KS-DEC units?

A Controller Box or a third-party controller manages the system; for control details, refer to the separate Video over IP Controller manual. The Controller has separate Video LAN and Control LAN ports so the A/V network stays isolated from the control network.

How is the AVO-IPJP2KS-DEC powered?

The AVO-IPJP2KS-DEC can be powered by PoE (802.3af PD) from the network switch, or by a local DC 12V/2.5A supply. When the switch delivers PoE, the DC adapter is not needed.

What kind of switch does the AVO-IPJP2KS-DEC require?

The switch must be a Layer 3 / managed type with gigabit bandwidth, 8KB jumbo-frame capability and IGMP snooping. If the switch does not support PoE, power the decoder with the DC adapter.

There is no picture on the display connected to the AVO-IPJP2KS-DEC. What do I check?

Check the front panel: the red POWER LED should be on, and the green LINK LED indicates the link state. If the LINK LED is flashing the decoder is linked but receiving no A/V signal, so confirm the encoder has a live source; if it is off the decoder is not linked, so check the network path to the sw

The LINK LED on the AVO-IPJP2KS-DEC is off. What should I look at?

An off LINK LED means the decoder is not linked over LAN (PoE). Check the green Link Signal indicator by the LAN port: if it is off the network cable is not well connected, so reseat the CAT6/6A/7 at both the decoder and the switch.

Do I need a 10GbE network to run this?

No. It is designed for standard 1-gigabit Ethernet. It uses JPEG2000 compression to carry 4K60 4:4:4 over the copper switching most sites already have, which is the main reason to choose it over uncompressed SDVoE systems that require a 10GbE fabric and premium switches.

Is the picture actually lossless, or will I see compression artifacts?

JPEG2000 is visually lossless at 4K60 4:4:4 — it preserves full color and fine text and UI detail. This is the fidelity tier above H.264/H.265 endpoints, which is why it suits signage, control rooms, and detailed content rather than only video playback.
