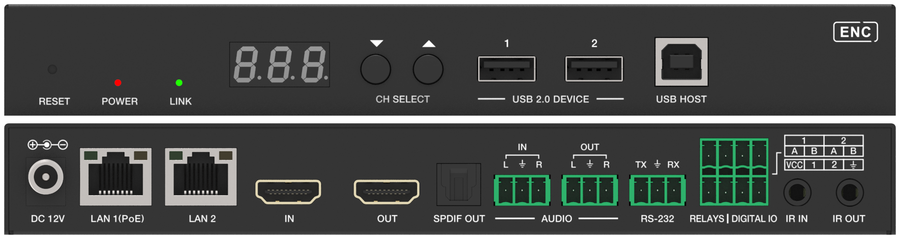

4K60 4:4:4 JPEG2000 AV over IP Encoder — Dante Dual LAN with Contact Control
Separate Dante Audio from JPEG2000 Video on Two Copper LANs — Relay/Digital I/O, RS-232 & ARC/eARC over Standard 1G
AVO-IPJP2KD-ENCUPC 813982021471
Upcoming
Overview
Distributes one HDMI source as visually lossless 4K60 4:4:4 across a matrix, video wall, or KVM system over the standard 1G copper network you already run. The encoder is a black metal endpoint powered by standard PoE or local DC 12V/2.5A, drawing 9.12W maximum, and folds dual RJ45 LAN ports, an HDMI loop-out, RS-232, IR, CEC, USB 2.0, and relay/digital-I/O contact control into a single rack-mountable device. It is the right choice for corporate, higher-education, control-room, and house-of-worship installations where full-chroma 4K60, Dante audio separation, and endpoint control matter more than the cost and switch replacement of a 10GbE/SDVoE fabric.
The AVO-IPJP2KD-ENC covers point-to-point, full matrix switching, and video wall up to 9x9 with intelligent video-wall class management, unicast and multicast, alongside USB 2.0 KVM, RS-232, bidirectional IR, CEC, and two relay plus two digital-I/O contact ports for room automation. Control runs through the front-panel buttons, IR, RS-232, TCP/IP, and a built-in web GUI with Telnet and SSH, and Dante AV-A is enabled by license activation rather than as a separate hardware SKU. Its defining feature is a dual copper LAN design: LAN Mode 2 carries JPEG2000 video on the PoE LAN 1 while Dante audio runs on LAN 2, physically separating the audio network from the video transport, or LAN Mode 1 consolidates both streams on LAN 1. Matching JPEG2000 decoder sold separately.
Key features
- HDCP 2.2 compliant
- Supports 18Gbps video bandwidth
- Input and output video resolution up to 4K60 4:4:4, as specified in HDMI 2.0b
- Signal transmission distance extendable up to 328ft / 100m over CAT6/6A/7 cable
- Transmits video, analog/digital audio, IR, RS-232, CEC, and USB 2.0 over Ethernet
- ARC/eARC/S-PDIF/analog audio return transmission
- Dante AV-A mode supported when license-activated
- Supports analog/Dante audio embedding and analog/Dante audio de-embedding
- Channel configuration via front-panel buttons and LED screen
- Built-in two-channel relay ports and two-channel digital-I/O ports for contact control
- Supports unicast and multicast
- Supports point-to-point, video matrix, and video wall (up to 9x9)
- Intelligent video-wall class management
- Built-in dual copper LAN ports with two working modes: LAN Mode 1 transmits both the JPEG2000 video stream and the Dante audio stream through the LAN 1 (PoE) port; LAN Mode 2 (default) transmits the JPEG2000 video stream through the LAN 1 (PoE) port and the Dante audio stream through the LAN 2 port
- MJPEG substream for real-time video preview on portable devices
- Operates on a 1G managed network switch
- Standard PoE (PD mode) power
- Built-in web-page configuration and control, plus Telnet and SSH
- HDMI audio formats: LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-96/24, DTS-EX DSD, DTS High Res, DTS-HD Master
- Flexible control via front-panel buttons, IR, RS-232, TCP/IP, and web GUI
- Smart networking design for easy and flexible installation
| Video | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Video Compression Standard | JPEG2000 |
| Video Network Bandwidth | 1G |
| Video Resolution | Up to 4K@60Hz 4:4:4 |
| Color Depth | Input: 8/10/12-bit (1080p@60Hz); Output: 8-bit |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
| HDR | Supported on both input and output |
| Audio | |
| HDMI Audio Formats | LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-96/24, DTS-EX DSD, DTS High Res, DTS-HD Master, DTS:X |
| Audio Sample Rate | 44.1–192kHz |
| Dante | Dante AV-A supported when license-activated |
| Signal & Transmission | |
| USB Bandwidth | USB 2.0 device to host: 480Mbps |
| Transmission Distance | 100m over CAT6/6A/7 |
| HDMI Cable Length vs. Resolution | 4K60: 16ft / 5m; 4K30: 32ft / 10m; 1080p60: 50ft / 15m (premium high-speed HDMI recommended) |
| IR Level | 12V default, 5V optional |
| IR Frequency | Wideband 20kHz – 60kHz |
| ESD Protection | IEC 61000-4-2: ±15kV (air discharge), ±8kV (contact discharge) |
| Connections — Inputs | |
| HDMI IN | 1x HDMI Type A, 19-pin female |
| L/R Audio IN | 1x 3-pin 3.81mm Phoenix, unbalanced 2CH, max 2Vrms |
| Connections — Outputs | |
| HDMI OUT | 1x HDMI Type A, 19-pin female |
| L/R Audio OUT | 1x 3-pin 3.81mm Phoenix, unbalanced 2CH |
| S/PDIF OUT | 1x optical |
| Connections — Control | |
| RS-232 | 1x 3-pin 3.81mm Phoenix |
| LAN | 2x RJ45 (LAN 1 supports PoE) |
| USB 2.0 Host | 1x USB Type B, 4-pin female |
| USB 2.0 Device | 2x USB Type A, 4-pin female |
| Relays | 2x 3.81mm Phoenix (isolated, max 1A 30VDC, open by default) |
| Digital I/O | 2x 3.81mm Phoenix (GPIO, output or input detection up to 12V) |
| IR IN | 1x 3.5mm jack, 5V/12V |
| IR OUT | 1x 3.5mm jack, 5V/12V |
| Networking & Control | |
| Topology | Point-to-point, video matrix, video wall (up to 9x9) |
| Casting | Unicast and multicast |
| LAN Modes | Mode 1: video + Dante on LAN 1 (PoE); Mode 2 (default): video on LAN 1 (PoE), Dante audio on LAN 2 |
| Control Interfaces | Front-panel buttons, IR, RS-232, TCP/IP, web GUI, Telnet, SSH |
| Substream | MJPEG substream for real-time preview |
| Recommended Switch | L3/managed Gigabit, 8KB jumbo frame, IGMP snooping |
| Rack Mounting | 6U V2 rack (6/8/10 units vertical) and 1U V2 rack (2 units horizontal); brackets and screws included |
| Power | |
| Power Supply | Input: AC 100–240V 50/60Hz; Output: DC 12V/2.5A |
| PoE | Standard PoE (PD mode); DC adapter not needed when switch supplies PoE |
| Power Consumption (max.) | 9.12W |
| Physical | |
| Housing | Metal enclosure |
| Color | Black |
| Dimensions (W x D x H) | 8.03" x 5.35" x 1.00" (204 x 136 x 25.5 mm) |
| Net Weight | 1.39 lbs (0.63 kg) |
| Environmental | |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -4–140°F (-20–60°C) |
| Relative Humidity | 20–90% RH, non-condensing |
| Certifications | |
| Certifications | CE, FCC, UL (power supply); IEC 61000-4-2 ESD immunity |
What is the maximum video resolution the AVO-IPJP2KD-ENC supports, and in what color format?
The AVO-IPJP2KD-ENC supports up to 4K@60Hz 4:4:4, per HDMI 2.0b, with 18Gbps video bandwidth and HDCP 2.2.
How far can the AVO-IPJP2KD-ENC send signal over network cable?
Transmission distance is 100m over CAT6/6A/7 cable.
What control protocols can I use to integrate the AVO-IPJP2KD-ENC?
The AVO-IPJP2KD-ENC can be controlled by front-panel buttons, IR, RS-232, TCP/IP, web GUI, Telnet, and SSH.
Does the AVO-IPJP2KD-ENC provide contact-closure control for a system?
Yes, it has two isolated relay ports (max 1A 30VDC, open by default) and two digital I/O GPIO ports for output control or input detection up to 12V.
How do I power the AVO-IPJP2KD-ENC?
The AVO-IPJP2KD-ENC runs from standard PoE (PD mode) on the LAN 1 port or from a local DC 12V/2.5A supply; the DC adapter is not needed when the switch supplies PoE.
What kind of network switch does the AVO-IPJP2KD-ENC need?
It needs an L3/managed Gigabit switch with 8KB jumbo frame and IGMP snooping enabled.
There is no picture and the green LINK LED is off. What do I check?
LINK off means the unit is not linked; confirm both ends are cabled to LAN 1(PoE), that the managed switch has IGMP snooping enabled, and that the CAT6/6A/7 run is within 100m.
The LINK LED is flashing green but I get no image. What is wrong?
A flashing LINK LED means the unit is linked but has no video, so check that the source is active at HDMI IN and that the HDMI cable is within its length limit for the resolution (16ft/5m at 4K60).
What network does it need — do we have to replace our switches?
No. It runs on standard managed Gigabit copper with IGMP for multicast, not a 10GbE/SDVoE fabric. That is the core reason to choose this tier over uncompressed AV over IP: system cost and switch compatibility. Endpoints are standard PoE, so a PoE switch can power them without local adapters.
How does the Dante audio work, and is it an extra box?
Dante AV-A is enabled by license activation on the same encoder — not a separate hardware SKU. The dual-LAN design lets you run Dante audio on LAN 2 and JPEG2000 video on LAN 1 (the default mode), or carry both on the PoE LAN 1 if you prefer a single link. That keeps audio routing on your Dante netw
