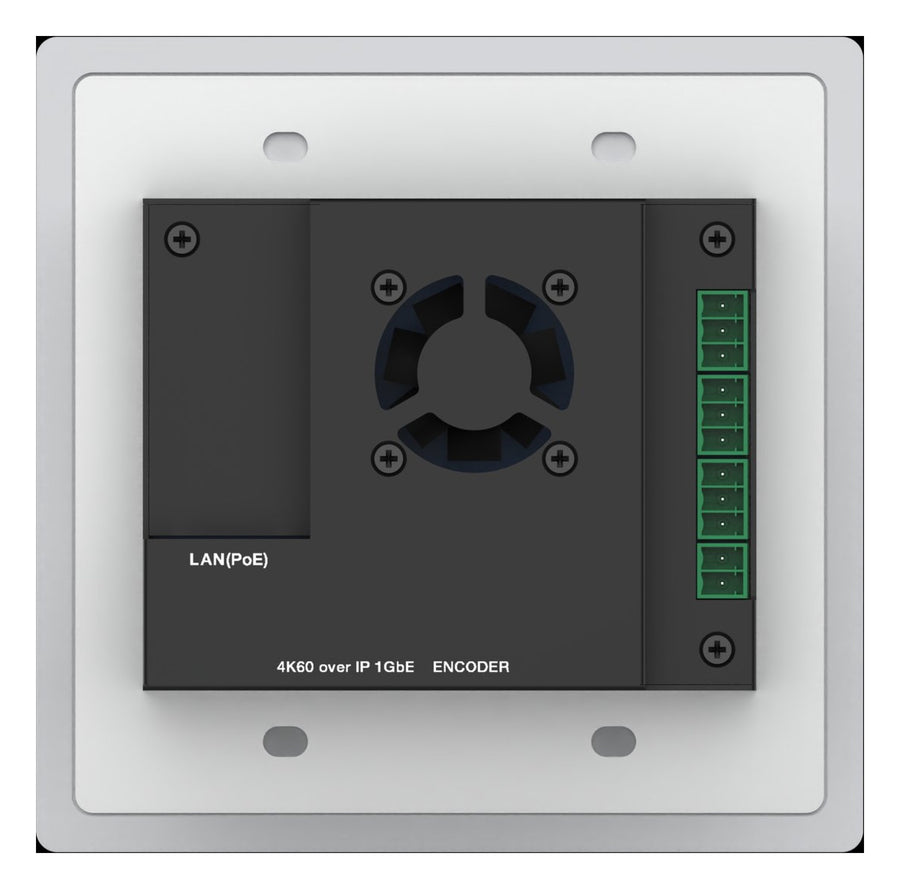

Name: 4K60 JPEG2000 AV over IP BYOD Wall Plate Encoder — Magnetic Mount
Brand: KanexPro
SKU: AVO-IPJP2KWPM

Overview

Puts JPEG2000 BYOD encoding directly in the wall with tool-free magnetic panel attachment — a US 2-gang wall plate that accepts both HDMI and USB-C from any presenter, auto-switches to the active source, and delivers up to 100W of PD charging back to the connected laptop. The AVO-IPJP2KWPM snaps into place magnetically for clean, screwless installation at any presenter position — ideal for conference rooms, classrooms, and boardrooms where appearance and fast serviceability matter.

Distributes visually lossless 4K60 4:4:4 JPEG2000 video to any AVO-IPJP2K-series decoder on the same 1G managed network. Supports matrix switching and video wall up to 9×9 via the AVO-IPCTL-JP2K controller. Optional Dante AV-A, USB 2.0 KVM, and MJPEG sub-stream preview. Encoder only — order with the decoder of your choice.

Key features

US 2-gang magnetic-attachment wall plate — tool-free snap-in panel installation
HDMI and USB-C dual inputs with automatic source switching
USB-C IN 1: video, audio, and USB data from laptop — USB-C IN 2: PD 100W charging back to source device
JPEG2000 visually lossless 4K60 4:4:4 distribution over standard 1G managed networks
LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-96/24, DTS-EX, DSD, DTS High Res, DTS-HD Master, DTS:X audio passthrough
USB 2.0 KVM with RS-232 pass-through and CEC control
Optional Dante AV-A integration (license activated)
HDMI 2.0b, HDCP 2.2, 18Gbps — unicast, multicast, matrix switching, video wall up to 9×9
PoE (802.3af PD) or DC 12V/2.5A
MJPEG sub-stream preview
Web GUI, RS-232, TCP/IP, CEC control
Encoder only — pairs with any AVO-IPJP2K-series decoder

Specification
Technical
Video Compression	JPEG2000
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2
Video Bandwidth	18Gbps
Max Resolution	4K@60Hz 4:4:4
Color Depth	Input: 8/10/12-bit — Output: 8-bit
Color Space	RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
HDR Support	HDR10, Dolby Vision, HLG
Audio Formats	LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-96/24, DTS-EX, DSD, DTS High Res, DTS-HD Master, DTS:X
Audio Return	Analog only (3.5mm Phoenix)
Dante	Optional AV-A (license activated)
Video Wall	Up to 9×9 (81 displays)
Preview Stream	MJPEG sub-stream
Transmission Distance	Up to 328ft / 100m via CAT6/6A/7
ESD Protection	IEC 61000-4-2: ±15kV (air-gap) / ±8kV (contact)
Connection
Video Input	1× HDMI IN (Type A) \| 1× USB-C IN 1 — video/audio/USB data \| 1× USB-C IN 2 — PD charging up to 100W
Audio Input	1× Audio IN (3-pin 3.5mm Phoenix, unbalanced)
Audio Output	1× Audio OUT (3-pin 3.5mm Phoenix, unbalanced)
Network	1× LAN/PoE (RJ45, 802.3af PD)
USB	1× USB 2.0 HOST (Type B) \| 2× USB 2.0 DEVICE (Type A)
Control	1× RS-232 (3-pin 3.5mm Phoenix)
Control & Power
Control Methods	Web GUI, RS-232, TCP/IP, CEC, IR
Controller	AVO-IPCTL-JP2K (sold separately)
Power	PoE (802.3af PD) or DC 12V/2.5A multinational
Physical
Form Factor	US 2-gang wall plate — Magnetic-Attachment Panel Type
Housing	Aluminum panel + Iron case
Dimensions (W×H×D)	4.56″ × 4.50″ × 1.74″ (115.9 × 114.3 × 44.25mm)
Net Weight	0.77 lbs (350g)
Power Supply	AC100–240V 50/60Hz, DC 12V/2.5A output (multinational)
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-4–140°F (-20–60°C)
Humidity	20–80% RH (non-condensing)
Package Contents
1×	AVO-IPJP2KWPM Encoder Wall Plate
3×	3-pin 3.5mm Phoenix connectors
1×	DC 12V/2.5A multinational power supply
1×	User manual

What resolution and compression does the encoder use?

JPEG2000, visually lossless, up to 4K@60Hz 4:4:4 over HDMI 2.0b at 18Gbps with HDCP 2.2.

How far can it send over the network?

Up to 328ft / 100m over CAT6, CAT6A or CAT7 on a standard 1G managed network.

Can a laptop drive it over USB-C alone?

Yes. USB-C IN 1 carries video, audio and USB data; USB-C IN 2 provides PD 100W charging back to the source. HDMI and USB-C switch automatically.

How is it controlled, and does it do video wall?

Web GUI, RS-232, TCP/IP, CEC and IR, with the AVO-IPCTL-JP2K controller sold separately. Unicast, multicast, matrix switching and video wall up to 9x9, which is 81 displays.

What does it mount into and how is it powered?

A US 2-gang wall box. The magnetic-attachment panel snaps in without tools. Power is PoE (802.3af PD) or DC 12V/2.5A from the multinational supply.

What connectors are on it?

1x HDMI IN, 2x USB-C IN, 1x audio IN and 1x audio OUT on 3-pin 3.5mm Phoenix, 1x LAN/PoE RJ45, 1x USB 2.0 HOST Type B, 2x USB 2.0 DEVICE Type A, and 1x RS-232 on 3-pin 3.5mm Phoenix.

Audio return is not working on the analog output.

Audio return on this unit is analog only, on the 3.5mm Phoenix connector. Digital return is not part of the design.

Can I confirm the stream without pulling up the full feed?

Yes. The encoder publishes an MJPEG sub-stream for preview.

Does it support Dante?

Optionally, through Dante AV-A, which is license activated.

What is included in the box and what finish is the plate?

The encoder in an aluminium panel with an iron case, 4.56in x 4.50in x 1.74in, 0.77 lbs, with a multinational AC100-240V to DC 12V/2.5A supply.
