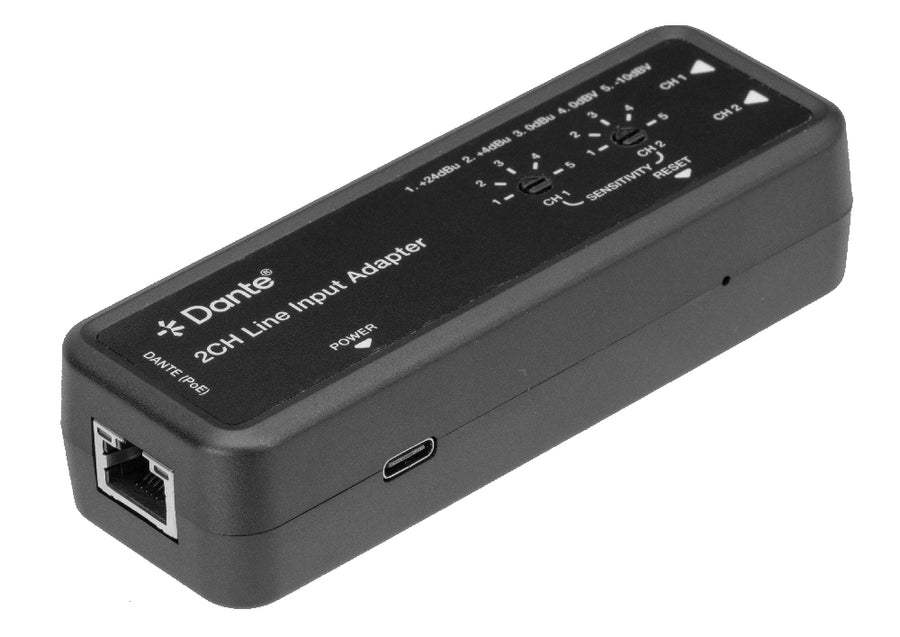

Dante 2CH Analog Line Input Adapter
2-Channel Balanced/Unbalanced Audio to Dante Converter with 5-Level Sensitivity & PoE
Bridges legacy analog audio sources into any Dante network with a compact, plug-and-play 2-channel line input adapter. The KanexPro AUD-DTE-LINEIN accepts balanced or unbalanced analog audio via a 6-pin phoenix connector and converts it to Dante digital audio at up to 96kHz/24-bit, delivering >100dB dynamic range and <0.01% THD+N for transparent signal quality.
Five-level per-channel sensitivity adjustment (+24dBu to −10dBv) accommodates everything from professional mixing consoles to consumer media players without external attenuators. Powered by PoE (IEEE 802.3af) or USB-C, the adapter installs anywhere on the network with a single CAT cable — no dedicated power run required. AES67 interoperability ensures compatibility across mixed-vendor Dante and AES67 systems.
- Converts 2-channel balanced/unbalanced analog audio to Dante digital audio via 6-pin 3.5mm phoenix connector
- Dante Ultimo 2×2 platform with sampling rates of 44.1, 48, 88.2, and 96kHz at 24-bit resolution
- 5-level per-channel sensitivity adjustment: +24dBu, +4dBu, 0dBu, 0dBV, −10dBV
- Signal performance: >100dB S/N ratio, >100dB dynamic range, <0.01% THD+N at +4dBu
- Configurable Dante audio delay: 1, 2, or 5ms via Dante Controller
- AES67 RTP audio transmission for cross-platform interoperability
- Dual power: PoE (IEEE 802.3af Class 0) or USB-C 5V — single-cable network installation
- Compact 115×40×28mm enclosure with hook-and-loop mounting for flexible placement
| Audio | |
| Audio Input | 2CH balanced/unbalanced analog audio (6-pin 3.5mm phoenix connector) |
| Audio Output | Dante 2CH digital audio (RJ45 PoE) |
| Sampling Rate | 44.1 / 48 / 88.2 / 96kHz @24-bit |
| Sensitivity Levels | +24dBu, +4dBu, 0dBu, 0dBV, −10dBV (per channel) |
| Max Input Level (Balanced) | +24dBu (12.28Vrms) |
| Max Input Level (Unbalanced) | +18dBu (6.15Vrms) |
| Input Impedance (Balanced) | 20kΩ |
| Input Impedance (Unbalanced) | 10kΩ |
| Frequency Response | 20Hz–20kHz (±0.5dB) |
| S/N Ratio | >100dB @0dBu, 1kHz (A-weighted) |
| Dynamic Range | >100dB @0dBu, 1kHz (A-weighted) |
| THD+N | <0.01% @+4dBu, 1kHz |
| Audio Delay | 1 / 2 / 5ms (configurable via Dante Controller) |
| Output Sync Delay | <10ms |
| Network | |
| Protocol | Dante / AES67 RTP |
| Network Bandwidth | 100Mbps |
| Transmission Distance | 328ft / 100m (CAT6/6A/7) |
| ESD Protection | IEC 61000-4-2 ±8kV air / ±4kV contact |
| Power | |
| Power Input | USB-C 5V/500mA or PoE IEEE 802.3af Class 0 |
| Power Consumption | 2W max |
| Mechanical | |
| Dimensions | 115mm (W) × 40mm (D) × 28mm (H) |
| Weight | 94g |
| Housing | Plastic enclosure |
| Operating Temperature | 0°C – 40°C |
| Storage Temperature | −20°C – 60°C |
| Operating Humidity | 20% – 80% RH (non-condensing) |
| Storage Humidity | 10% – 90% RH (non-condensing) |
| Package Contents | |
| 1× | Dante 2CH Line Input Adapter |
| 1× | 6-pin 3.5mm Phoenix Connector (male) |
| 2× | Hook & Loop |
| 1× | User Manual |
Does the AUD-DTE-LINEIN support AES67?
What sample rates are supported?
Can I use balanced and unbalanced simultaneously?
How do I connect to an existing Dante network?
What cable and max distance?
Can I power without PoE?
Device not appearing in Dante Controller?
Audio distorted or clipping?
