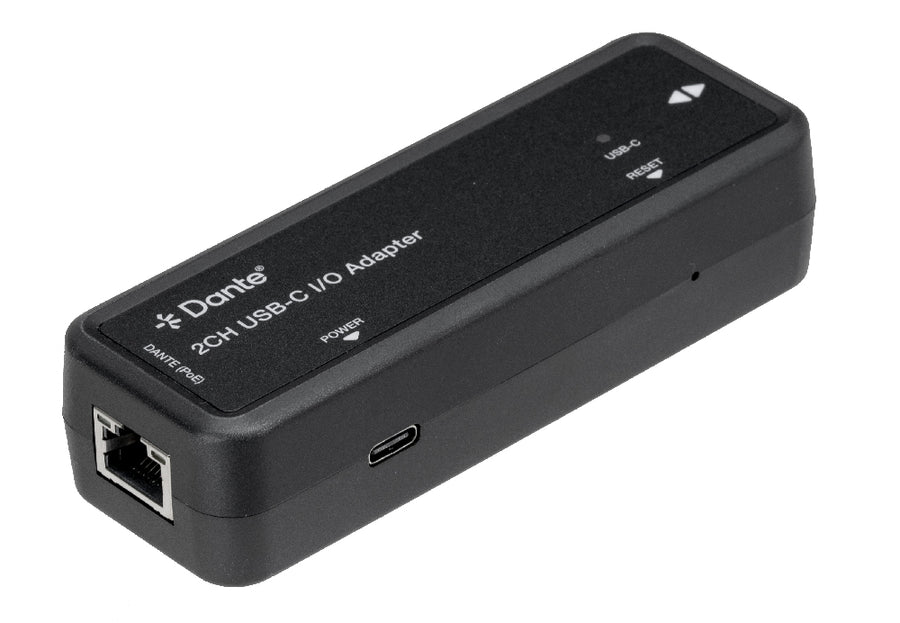

Dante® 2-Channel USB-C I/O Adapter
Driver-Free USB-C to Dante® Network Audio Bridge with PoE Power
The AUD-DTE-USBC bridges any USB-C device directly into a Dante® audio network — no drivers, no dedicated interface hardware, no additional power supply required. Built on the Dante® Ultimo 2×2 engine, it converts two-channel USB audio from laptops, smartphones, and tablets into full-resolution Dante® network audio at sampling rates up to 96kHz/24-bit, while simultaneously accepting USB audio output at up to 192kHz/24-bit. A single RJ45 connection to a PoE-capable switch delivers both the Dante network stream and device power over the same cable — eliminating the need for a separate power supply in most installations.
Designed for conference rooms, classrooms, houses of worship, and distributed audio systems, the AUD-DTE-USBC operates as a plug-and-play USB audio class 1.0/2.0 device, recognized natively by macOS, Windows, iOS, and Android. Dante® Controller software manages routing, latency (1/2/5ms configurable), and AES67 interoperability — giving integrators full network audio control without touching the host device. The compact plastic enclosure includes integrated hook-and-loop mounting for concealed installation under tables, behind displays, or inside equipment enclosures.
- Interconverts two-channel USB audio and Dante® 2CH digital audio via Dante® Ultimo 2×2 engine
- USB audio device class 1.0/2.0-compatible — no driver installation required on macOS, Windows, iOS, or Android
- USB audio output up to 192kHz@24bit; USB audio input up to 96kHz@24bit
- Dante® audio sampling rate supports 44.1/48/88.2/96kHz@24bit with AES67 interoperability
- Configurable Dante® audio latency: 1ms, 2ms, or 5ms via Dante® Controller
- Powered via PoE (IEEE 802.3af Class 0) or USB-C 5V/500mA — no external power supply required with PoE switch
- Compact form factor with included hook-and-loop for flexible concealed installation
| Technical | |
| Control Method | Dante® Controller |
| Network Bandwidth | 100M |
| Audio Formats | USB AUDIO IN: Digital audio input, PCM 2CH 44.1K–96KHz 16/24bit |
| USB AUDIO OUT: Digital audio output, PCM 2CH 44.1K–192KHz 16/24bit | |
| DANTE IN/OUT: Digital audio input/output, PCM 2CH 44.1K–96KHz 16/24bit | |
| Transmission Distance | 328ft / 100m (CAT6/6A/7) |
| Audio Latency | Configurable Dante® device latency — 1ms, 2ms, or 5ms via Dante® Controller |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| USB Audio IN — Audio Parameters | |
| Frequency Response | 20Hz to 20kHz (±0dB) |
| Audio S/N Ratio | >130dB, 1kHz A-weighted |
| Dynamic Range | >130dB, 1kHz A-weighted |
| Audio THD+N | <0.01% at +4dBu, 1kHz |
| Audio Output Sync Delay | <10ms |
| Line Input Level (Maximum) | N/A |
| Input Impedance | N/A |
| USB Audio OUT — Audio Parameters | |
| Frequency Response | 20Hz to 20kHz (±0dB) |
| Audio S/N Ratio | >130dB, 1kHz A-weighted |
| Dynamic Range | >130dB, 1kHz A-weighted |
| Audio THD+N | <0.01% at +4dBu, 1kHz |
| Audio Output Sync Delay | <10ms |
| Line Output Level (Maximum) | N/A |
| Output Impedance | N/A |

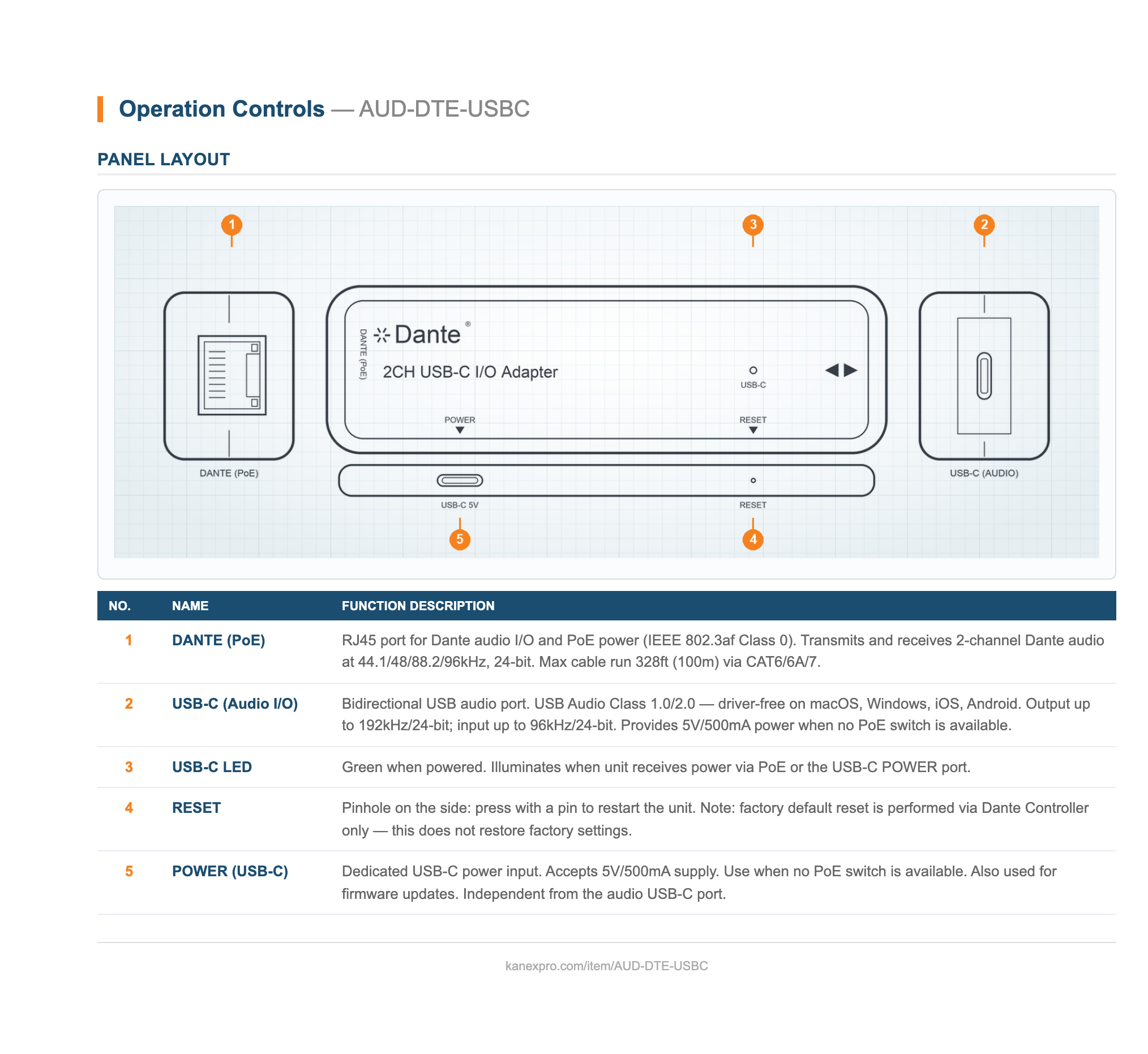

| Connection | |
| DANTE | 1× RJ45 connector — Digital audio in/out, PoE |
| USB-C (Audio) | 1× USB-C with USB 1.0/2.0, USB audio in/out, 12-pin female |
| POWER | 1× USB-C power and firmware update port, 12-pin female |
| RESET | 1× System reboot button |
| USB-C LED | 1× Green color, USB 5V indicator |
| Power | |
| USB Input | 5V / 500mA |
| PoE Input | IEEE 802.3af Class 0 |
| Power Consumption | 1.65W (Max) |
| Mechanical | |
| Housing | Plastic Enclosure |
| Color | Black |
| Dimensions | 115mm [W] × 40mm [D] × 28mm [H] |
| Weight | 94g |
| Environmental | |
| Operating Temperature | 32°F – 104°F / 0°C – 40°C |
| Storage Temperature | -4°F – 140°F / -20°C – 60°C |
| Operating Humidity | 20% – 80% RH (non-condensing) |
| Storage Humidity | 10% – 90% RH (non-condensing) |
| Package Contents | |
| 1× | Dante® 2CH USB-C I/O Adapter |
| 2× | Hook & Loop |
| 1× | User Manual |
What Dante audio format does the AUD-DTE-USBC use?
What is the audio performance of the AUD-DTE-USBC?
Are the USB-C audio port and the USB-C power port the same connector?
Does the AUD-DTE-USBC require drivers on mobile devices?
How is the AUD-DTE-USBC powered?
What are the dimensions and weight of the AUD-DTE-USBC?
The AUD-DTE-USBC is unresponsive - how do I recover it?
The connected USB-C device is not receiving or sending audio - what should I check?
How does the AUD-DTE-USBC pair with the AUD-DTE-2CHAMP in a system?
What deployment benefit does dual PoE/USB-C power provide?
